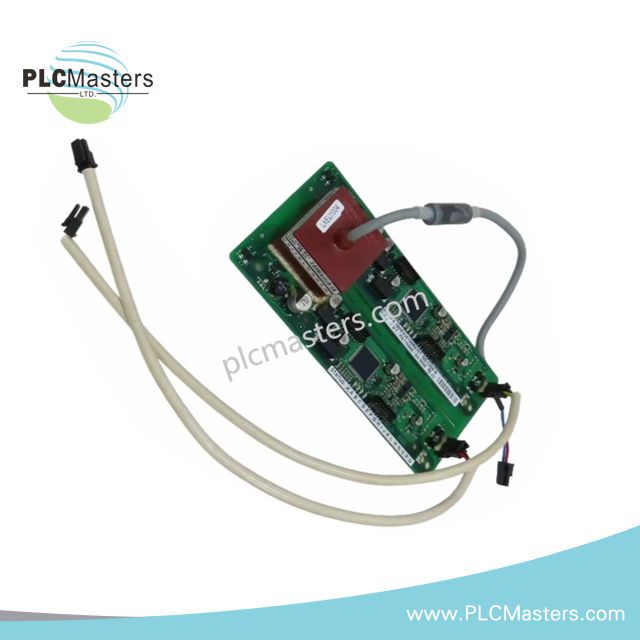

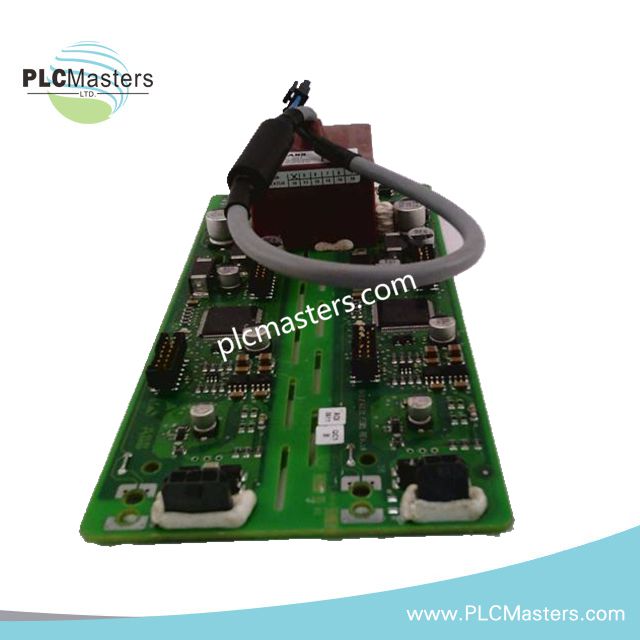

ABB 3BHE036130R0101 GDC806B Medium-Voltage Drive Control Board

Overview

The ABB GDC806B (3BHE036130R0101) is a high-performance control and communication module designed for ABB ACS2000 medium-voltage drives. It provides reliable drive control, signal processing, and high-speed communication with SCADA systems and protection relays. Engineered for industrial environments, the module features a compact and rugged design, ensuring stable operation under demanding conditions.

Technical Specifications

Electrical & Communication

• Supported Protocols: IEC 61850‑9, Modbus TCP, Ethernet (configurable)

• Ports: Two independent Ethernet ports for redundant communication

• Functionality: Signal processing, communication bridging, drive control integration

• Data Reliability: Redundant communication support for high availability of critical data

Mechanical & Physical

• Dimensions: 410 × 200 × 200 mm

• Weight: 0.25 lbs

• Industrial Design: EMC immunity, vibration resistance

Environmental & Reliability

• Operating Temperature: –10°C to +55°C

• Industrial-grade construction suitable for ACS2000 module environments

Applications

• ACS2000 medium-voltage AC drives (250 kW–3.68 MW)

• SCADA system integration and remote monitoring

• Substation automation and Relion® 615 protection relays

• Industrial automation requiring redundant communication

FAQ

Q: Is this module compatible with all ACS2000 drives?
A: Yes, the GDC806B works with ACS2000 medium-voltage drives, but refer to the drive’s selection guide for specific model compatibility.

Q: Can this module be replaced or upgraded on-site?
A: Yes, it supports hot-swappable installation; follow ABB safety and operational guidelines during replacement.

Q: Are there similar modules available?
A: A similar model is the GDC805B, which differs mainly in communication protocol support and redundancy features.
