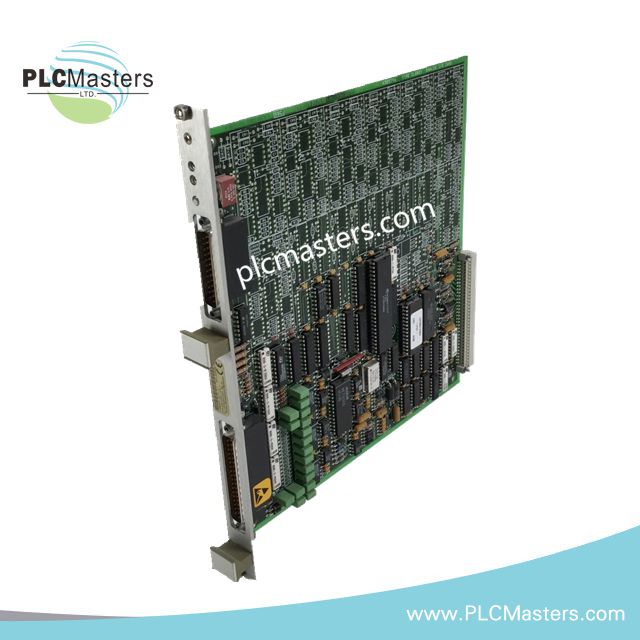

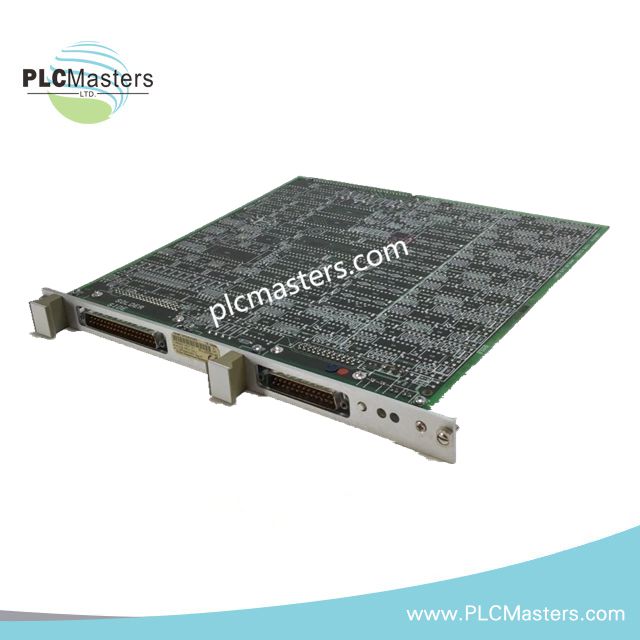

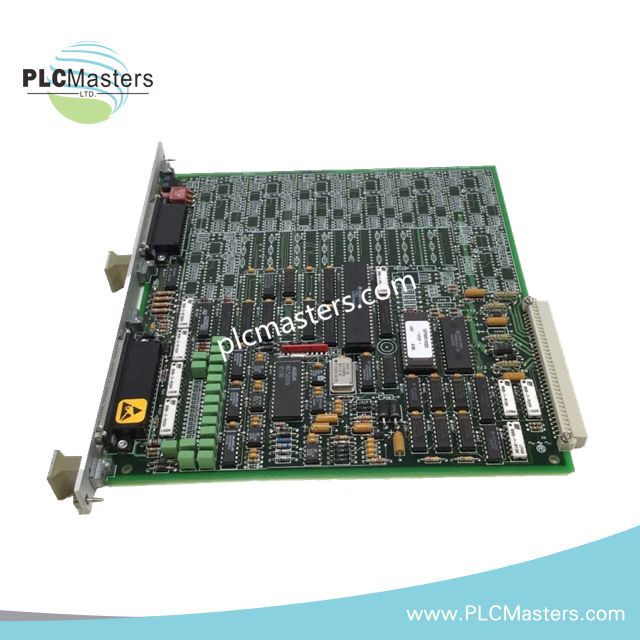

Emerson CL6824X1-A2 12P0050X052 Dual Analog I/O Module

Product Description

The CL6824X1-A2 (12P0050X052) by Emerson is a precision analog input/output (I/O) module designed for use in Fisher PROVOX and DeltaV distributed control systems. It offers four analog input channels and four analog output channels, accommodating standard industrial signal ranges of 4–20 mA and 0–10 V. With 16-bit resolution, this module ensures highly accurate signal measurement and control for demanding industrial processes.

Constructed for durability, the CL6824X1-A2 withstands challenging environmental conditions and is CE certified for compliance with international standards. The module’s compact DIN rail form factor allows for seamless integration into control panels, while built-in LED indicators provide real-time channel diagnostics, simplifying maintenance and troubleshooting.

Technical Specifications

• Model: CL6824X1-A2

• Part Number: 12P0050X052

• Module Type: Analog Input/Output (I/O) Module

• Channels: 4 AI, 4 AO

• Signal Range: 4–20 mA, 0–10 V

• Resolution: 16-bit

• Power Supply: 24 VDC

• Mounting: DIN rail

• Dimensions: 28 × 5 × 25 cm

• Weight: 0.5 kg

• Operating Temperature: –20 °C to +60 °C

• Humidity: 5–95% RH, non-condensing

• Diagnostics: LED indicators for channel status

• Certifications: CE compliant

Safety & Compliance

• CE certified for international industrial standards

• Rugged construction ensures reliable operation in oil & gas, chemical, and power generation industries

• Designed for precise analog monitoring and control in demanding environments

Key Highlights

• Supports both analog input and output in a single module

• High-accuracy 16-bit resolution for precise measurements

• Compact DIN rail mounting for easy installation

• LED indicators for channel diagnostics and troubleshooting

• Suitable for critical process control across multiple industries

Applications

• Process signal acquisition and control in DeltaV and PROVOX DCS

• Integration with transmitters, sensors, and actuators

• Precise monitoring and control in oil & gas, chemical, and power plants

FAQ

Q: Does this module support both current and voltage signals?
A: Yes, it supports 4–20 mA and 0–10 V signals on all channels.

Q: Can it operate reliably in harsh industrial environments?
A: Yes, the rugged design and CE certification ensure stable operation under demanding conditions.

Q: How is channel status monitored?
A: Each channel features an LED indicator for instant diagnostics and troubleshooting.
