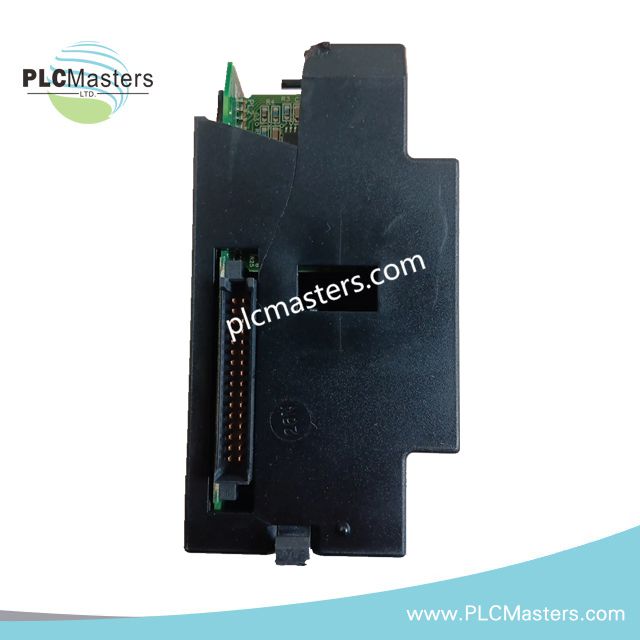

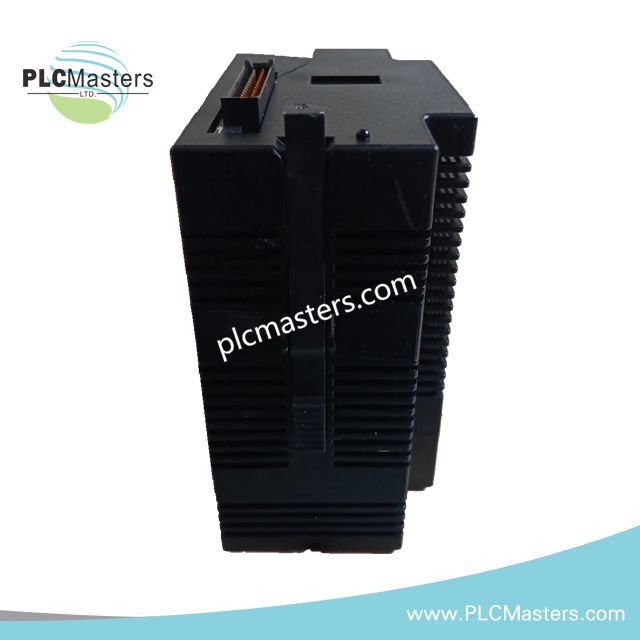

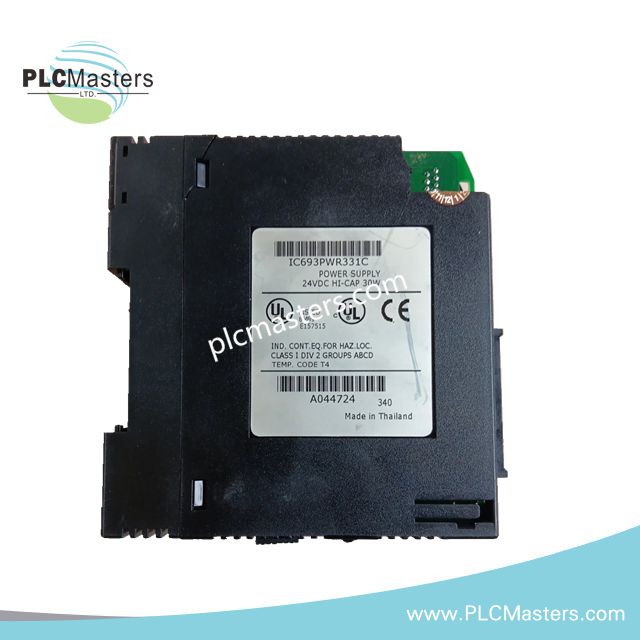

GE IC693PWR331C Rack-Mount Power Supply Module

Overview

The GE IC693PWR331C is a high-capacity power supply for the Series 90-30 PLC system. It delivers stable 5 VDC and 24 VDC outputs to power CPU and I/O modules efficiently. This module suits industrial automation applications requiring higher current capacity and reliable operation. Its rack-mounted design ensures easy integration into standard 90-30 PLC racks. The IC693PWR331C supports continuous operation in demanding environments with advanced protection features.

Technical Specifications

• Module Type: Rack-Mount Power Supply Module

• Input Voltage: 120/230 VAC ±10%, selectable via front panel switch

• Input Frequency: 50/60 Hz

• Input Current: 1.2 A at 120 VAC, 0.6 A at 230 VAC

• Output Voltages: 5 VDC at 7.2 A (36 W), 24 VDC at 1.5 A (36 W)

• Total Output Power: 72 W

• Efficiency: Up to 80%

• Ripple and Noise: Less than 1% peak-to-peak

• Overload Protection: 5 VDC with foldback current limiting, 24 VDC with hiccup mode auto-recovery

• Thermal Protection: Internal sensor with automatic shutdown and recovery

• Mounting: Fits standard 90-30 PLC racks

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Storage Temperature: -40°C to 85°C

• Humidity: 5% to 95% RH, non-condensing
