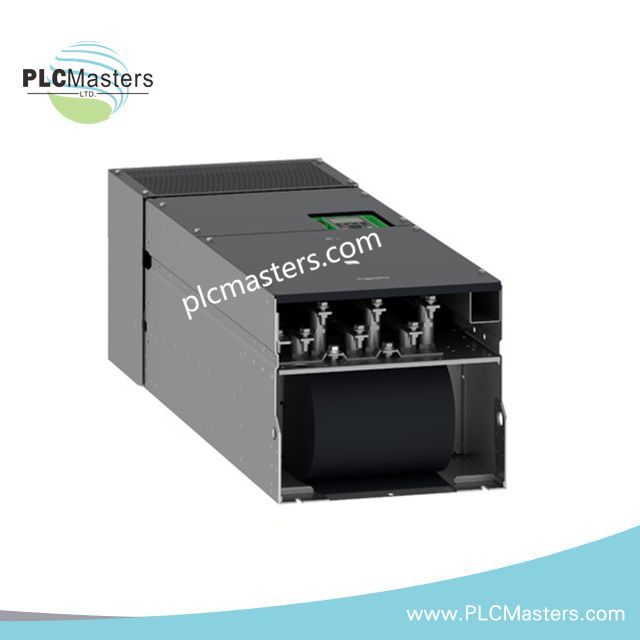

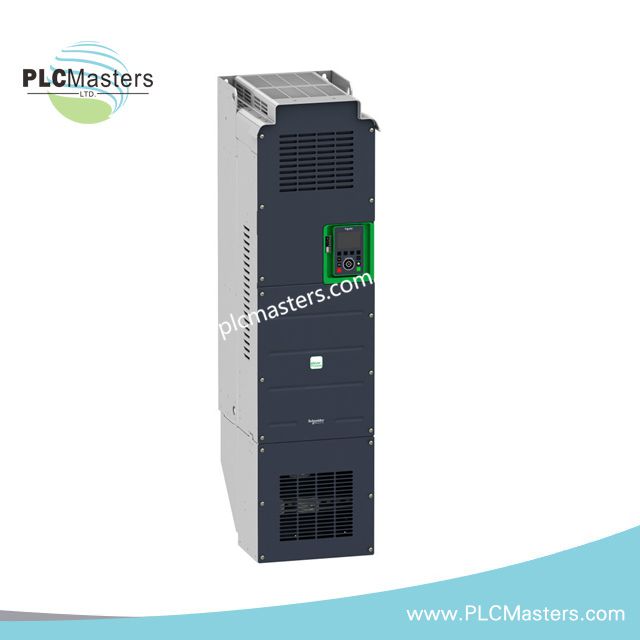

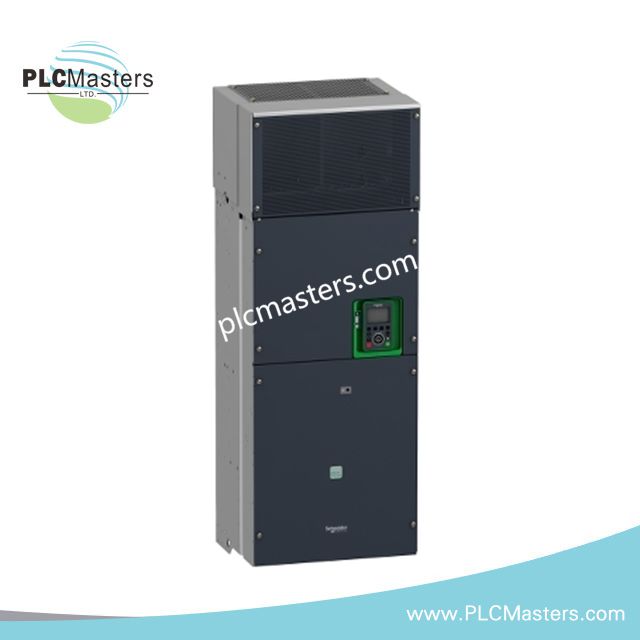

Schneider ATV930C22N4 Variable Speed Drive

Overview

The Schneider ATV930C22N4 is a 220 kW (295 HP) variable speed drive from the Altivar Process ATV900 series. It delivers high-performance motor control for demanding industrial process applications. The drive supports 3-phase motors operating at 380–480 V. It includes an integrated braking unit and advanced energy monitoring features. The drive suits both synchronous and asynchronous motors. It enables precise control in master/slave or complex network configurations. Embedded web server and data logging reduce downtime. Mounting occurs vertically, with a tolerance of ±10°. Its advanced connectivity supports EtherNet/IP, Modbus TCP, and multiple fieldbus options.

Technical Specifications

• Product Series: Altivar Process ATV900

• Model: ATV930C22N4

• Motor Power: 220 kW normal duty, 160 kW heavy duty

• Supply Voltage: 380–480 V AC, 3-phase

• Continuous Output Current: 427 A normal duty, 302 A heavy duty

• Braking: Integrated brake chopper and DC injection

• Control Profile: Constant, variable, optimized torque; permanent magnet and synchronous reluctance motors

• Maximum Output Frequency: 599 Hz

• Switching Frequency: 1–8 kHz adjustable

• Communication Ports: Modbus serial, Modbus TCP, EtherNet/IP, optional Profibus DP, PROFINET, DeviceNet, EtherCAT, CANopen

• Digital Inputs: 10 programmable, 24 V DC

• Analog Inputs: 3 software-configurable (0–10 V, 0–20/4–20 mA)

• Analog Outputs: 2 software-configurable (0–10 V, 0–20 mA)

• Relay Outputs: 3 configurable relays, R1–R3

• Local Signalling: Multiple LEDs for diagnostics and communication status

• Safety Functions: Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Brake Control (SBC/SBT)

• EMC Protection: Integrated filter, complies with IEC 61800-3

• IP Protection: IP00, UL Type 1

• Operating Temperature: -10–40 °C without derating, 40–60 °C with derating

• Altitude: Up to 1000 m without derating, 1000–3000 m with derating 1% per 100 m

• Vibration Resistance: 1 gn (13–200 Hz), 1.5 mm (2–13 Hz)

• Shock Resistance: 15 gn, 11 ms

• Noise Level: 73 dB

• Cooling Air Volume: 860 m³/h

• Dimensions (W×H×D): 440 × 1195 × 380 mm

• Net Weight: 172 kg

• Applications: Oil and gas, mining, metals, food & beverage, water and wastewater

• Mounting Mode: Wall mount, vertical ±10°
