Schneider HMIGTO6310 12.1-inch Advanced Touchscreen HMI Panel

Overview

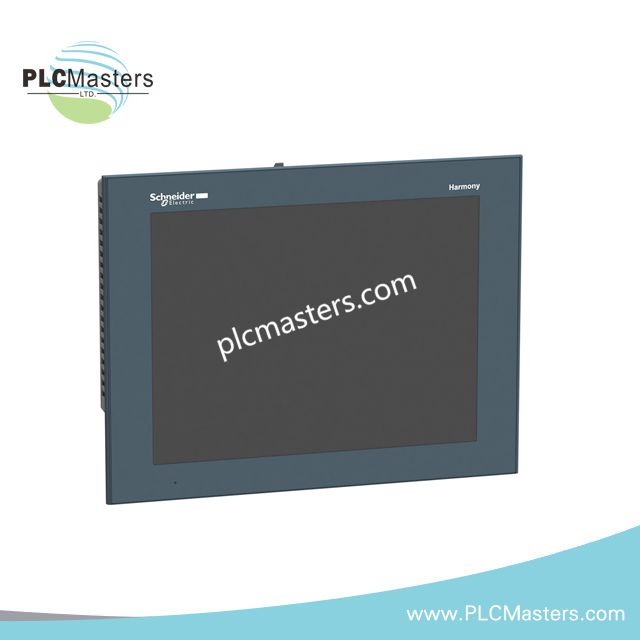

The Schneider Electric HMIGTO6310 is a 12.1-inch advanced touchscreen HMI panel from the Harmony GTO series. It delivers SVGA resolution (800 × 600 pixels) with a resistive touchscreen. The panel provides intuitive operation with a multicolor status LED. It supports Vijeo Designer software for easy programming. Built for industrial environments, it integrates via serial and Ethernet ports. Its IP65-rated front panel ensures protection in harsh conditions. HMIGTO6310 suits manufacturing, energy, and process automation applications.

Technical Specifications

• Display Type: Backlit color TFT LCD

• Display Size: 12.1 inch

• Display Resolution: 800 × 600 pixels SVGA

• Display Colours: 65,536

• Touch Panel: Resistive film, 1,000,000 cycles

• Touch Sensitive Zone: 1024 × 1024 points

• Backlight Lifespan: 50,000 hours at 25 °C

• Brightness: 16 levels adjustable via touch or software

• Character Fonts: Taiwanese, ASCII, Simplified Chinese, Japanese, Korean

• Processor: ARM926EJ-S

• Software Package: Vijeo Designer

• Power Supply: 24 V DC (range 19.2–28.8 V)

• Maximum Power Consumption: 17 W

• Local Signalling: Multicolor status LED for power, operation, and communication

• Memory: 96 MB Flash EPROM, 512 KB SRAM

• Data Storage: SD/SDHC card up to 32 GB

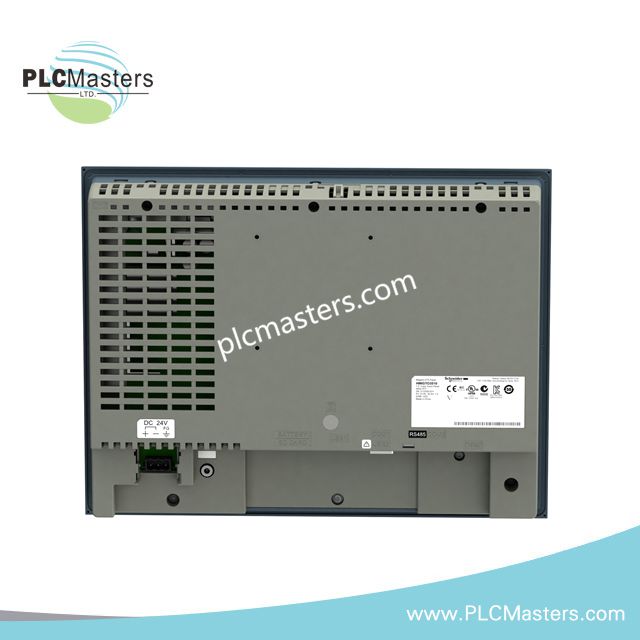

• Communication Ports: COM1 RS232C, COM2 RS485, Ethernet RJ45, USB 2.0 type A and mini-B

• Mounting: Flush mounting with 4 screw clamps

• Enclosure Material: PPT, front panel IP65, rear panel IP20

• Dimensions: Width 12.4 in (315 mm), Height 9.5 in (241 mm), Depth 2.2 in (56 mm)

• Net Weight: 5.5 lb (2.5 kg)

• Operating Temperature: 0…55 °C

• Storage Temperature: -20…60 °C

• Relative Humidity: 10–90% without condensation

• Operating Altitude: Up to 2,000 m

• Shock Resistance: 147 m/s², 3 shocks per axis

• Vibration Resistance: 1 gn, 9–150 Hz, 10 cycles

• Electrostatic Discharge: 6 kV contact IEC 61000-4-2
