ABB DSRF180A 57310255-AV Equipment Frame

Product Description

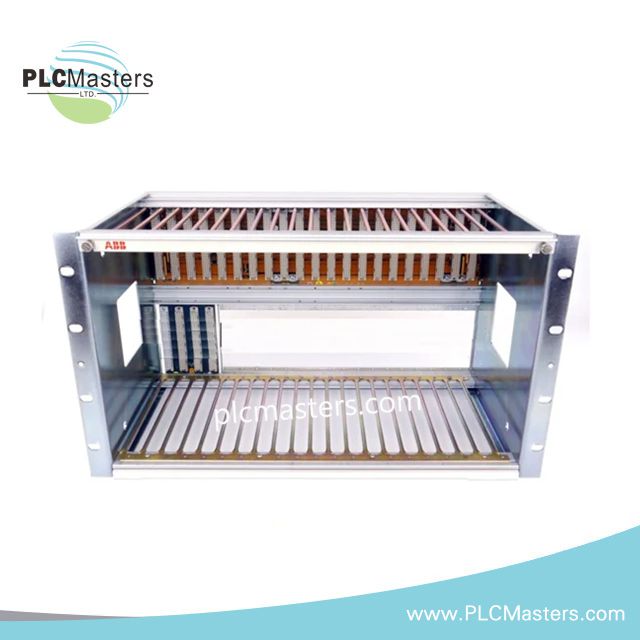

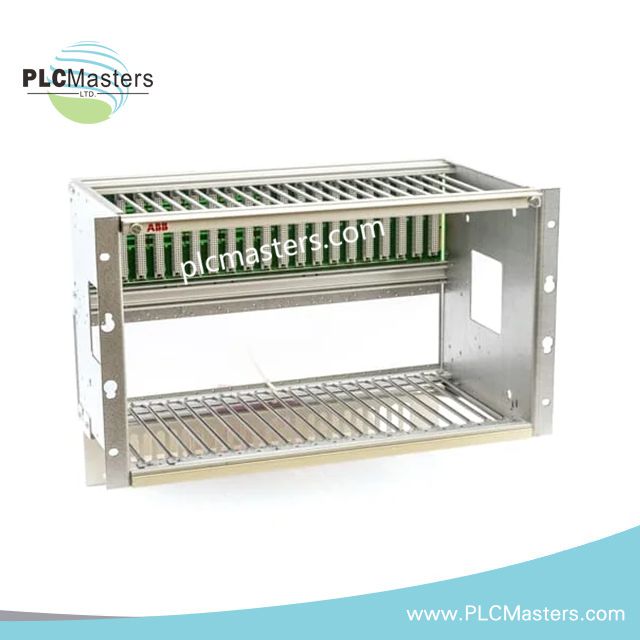

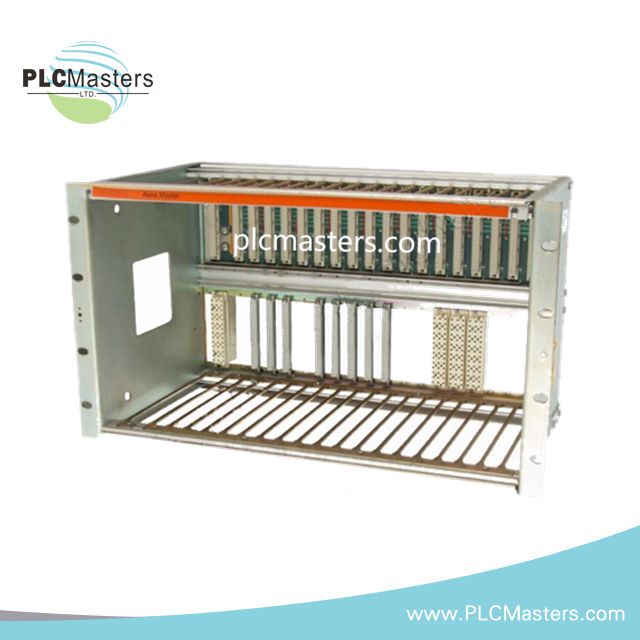

The ABB DSRF180A 57310255-AV is a robust equipment frame designed to house and stabilize CPU and I/O modules for ABB MasterPiece 200 and 200/1 controllers. It provides secure mechanical mounting, a built-in single voltage regulator, and supports reliable integration into Advant OCS Master SW automation systems.

Key Functions

• Structural frame for CPU and I/O modules

• Integrated single voltage regulator for stable module operation

• Industrial-grade construction with high MTBF and surge protection

• Compatible with ABB Advant OCS Master SW systems for seamless integration

Technical Specifications

Applications

• Housing and protection of CPU and I/O modules in MasterPiece 200/200/1 systems

• Industrial control rooms and automation cabinets

• Harsh industrial environments requiring reliable frame stability

FAQ

Q: Is this frame a functional controller?
A: No. The DSRF180A is strictly a mechanical and electrical housing for CPU and I/O modules. Functional modules must be purchased separately.

Q: Can it be used with other ABB controller models?
A: It is specifically designed for MasterPiece 200 and 200/1 series. Compatibility with other series is not guaranteed.

Q: What is the difference between DSRF180A and DSRF170 frames?
A: The DSRF180A includes a built-in voltage regulator and is sized for CPU and I/O subracks, whereas the DSRF170 primarily serves as a structural frame without integrated voltage regulation.
