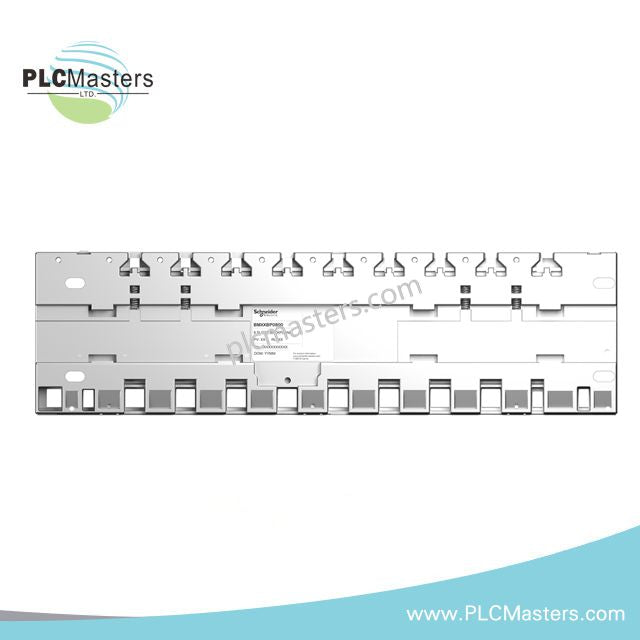

Schneider BMXXBP0800 8-slot Backplane Rack

Overview

The Schneider BMXXBP0800 is an 8-slot backplane rack designed for Modicon X80 automation systems. It supports M340 and M580 platforms, ensuring broad compatibility across applications. The rack enables stable and robust mounting for processor, I/O, communication, and specialty modules. You can mount the backplane on DIN rail, panel, or mounting plate for flexible installation. The separate power supply does not occupy any module slot, optimizing system configuration. Its hot-swappable design supports most I/O modules, facilitating easy maintenance. The rack also allows seamless modernization for existing Quantum systems.

Technical Specifications

• Model: BMXXBP0800

• Type: Backplane Rack

• Platform Compatibility: Modicon X80, M340, M580

• Slot Capacity: 8 slots for processor, I/O, communication, and specialty modules

• Power Supply: Mounted separately; not occupying any slot

• Mounting Options: DIN rail, panel, or mounting plate

• Weight: 0.95 kg

• Height: 4.08 in (103.7 mm)

• Width: 14.7 in (372.8 mm)

• Depth: 0.7 in (19 mm)

• Power Consumption: 2.21 W

• Electrical Connection: 1 connector (XBE) for expansion module

• IP Degree of Protection: IP20

• Operating Temperature: 0…60 °C (32…140 °F)

• Relative Humidity: 10…95% without condensation

• Fixing Mode: 4 screws (M4/M5/M6) for panel or mounting plate, clips for 35 mm DIN rail

• Country of Origin: France
