ABB DC562 1SAP231900R0000 Digital I/O Module

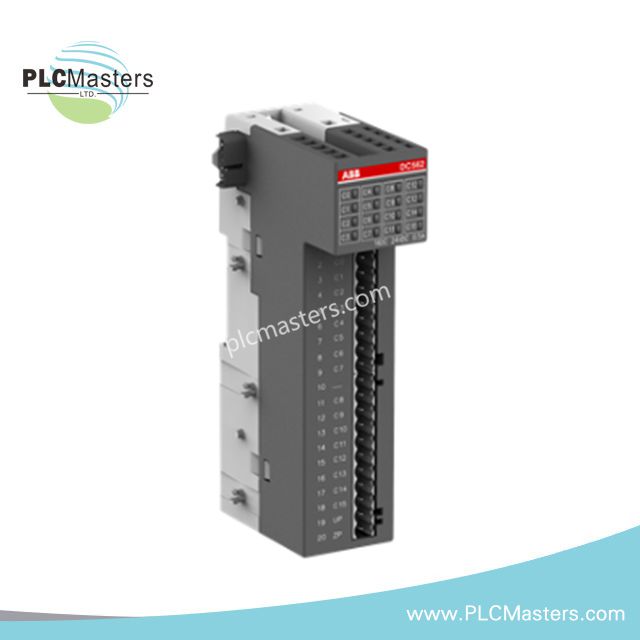

ABB DC562 - Digital I/O Module

Product Overview
The DC562 is a compact and configurable digital input/output module from the ABB S500-eCo series. It supports 16 channels, each configurable as DI or DO, with transistor-based DC outputs.

Key Specifications

• Product Name: DC562

• Product ID: 1SAP231900R0000

• ABB Type Designation: DC562

• Catalog Description:

• Digital input/output module

• 16 configurable DI/DO

• 24VDC / 0.5 A (transistor output)

• EAN: 4016779927574

• Function: Digital I/O, configurable

• Input Voltage Type: DC

• Supply Voltage: 20.4–28.8 VDC

• Input Current: 5 mA

• Input Voltage Range: 0–30 V

• Output Voltage Range: 20.4–28.8 VDC

• Output Type: Transistor

• Output Current per Channel: 0.5 A

• Delay Time: 8–8 ms

• Connection Type: Pluggable

• Degree of Protection: IP20

Mechanical Data

• Net Dimensions:

• Width: 34 mm

• Height: 135 mm

• Depth: 75 mm

• Net Weight: 0.15 kg

• Gross Weight: 0.222 kg

• Packaging (Level 1):

• Dimensions: 170 × 93 × 63 mm

• Units per Carton: 1

Certifications & Compliance

• CE Declaration: S500-eCo EU DoC

• RoHS Status: Compliant with EU Directive 2011/65/EU & Amendment 2015/863

• REACH Compliance: Yes, contains SVHC > 0.1%

• REACH Date: 2024-12-06

• WEEE Category: Category 5 – Small Equipment

• Environmental Use: Business-to-Business (B2B)

• SCIP Number: bfeea254-2f62-465d-8fb2-666407f08264

Ordering Information

• Made to Order: No

• Minimum Order Quantity: 1 piece

• Order Multiple: 1 piece

• Sales Unit: Piece

• Customs Tariff Number: 85371091
