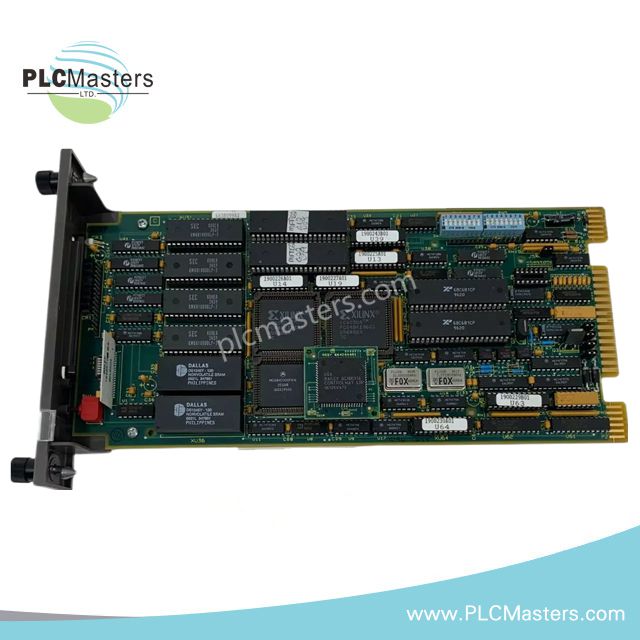

ABB IMMFP02 Multi-Function Processor Module

Overview

The ABB IMMFP02 is an integral part of the Bailey Infi 90 Distributed Control System. Serving as the central processor, it is responsible for managing control strategies, data acquisition, and communication within the system. This multi-function processor enables efficient processing of both analog and digital signals, ensuring optimal performance in industrial automation applications.

Technical Specifications

Processor

• Model: Motorola MC68020

• Architecture: 32-bit

• Functionality: High-speed processing for control and data management

Memory

• 4 MB DRAM: Used for program execution

• 512 KB EPROM: Stores firmware for system operation

Communication

• Ports: Supports RS-232 and RS-485 for serial communication

• Integration: Communicates seamlessly with other modules in the Infi 90 system

Input/Output

• Signal Types: Supports both analog and digital signals

• Data Acquisition: High-speed processing and acquisition for real-time control

Power Requirements

• Voltage: +5 VDC ±5%

• Current: 2.5 A

Environmental Specifications

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Humidity: 0% to 95% (non-condensing)

Physical Dimensions and Weight

• Dimensions: 7.0 in x 2.0 in x 13.0 in (17.8 cm x 5.1 cm x 33.0 cm)

• Weight: 1 lbs 1.0 oz (0.5 kg)
