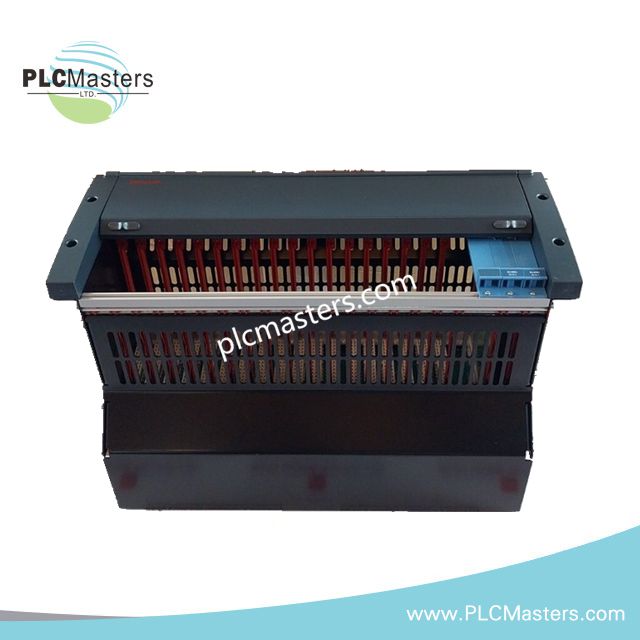

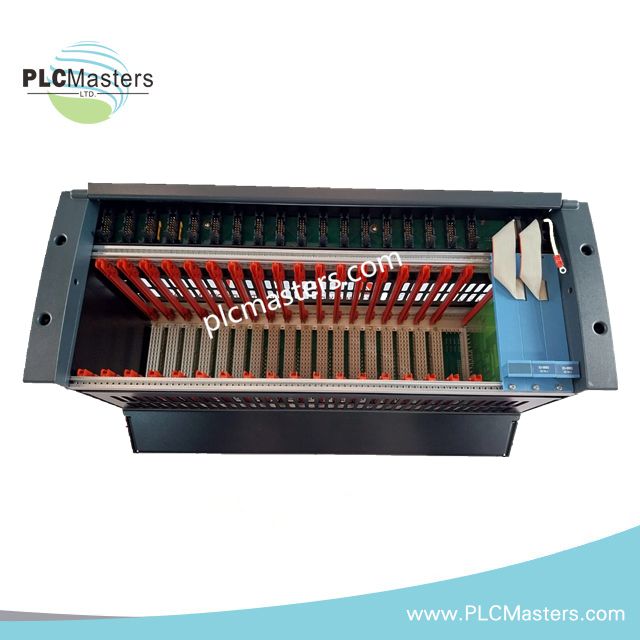

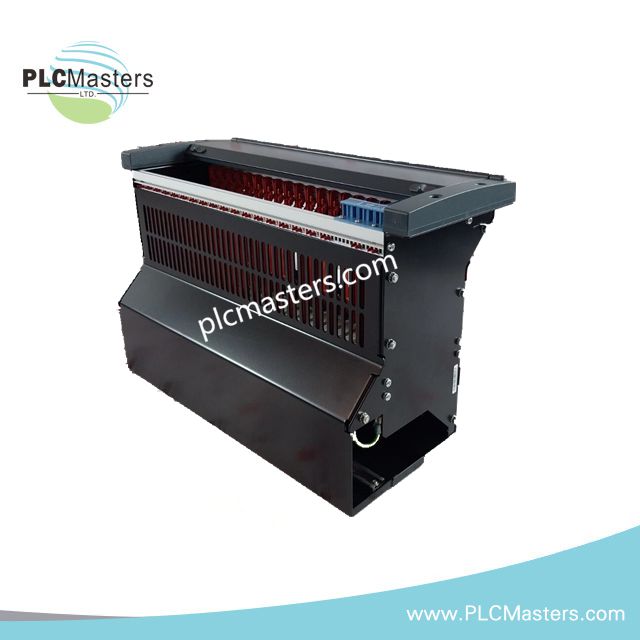

Honeywell FC-IOCHAS-0003S Standard I/O Chassis

Product Description

The Honeywell FC-IOCHAS-0003S is a standard, non-redundant I/O chassis engineered for Honeywell Experion PKS environments. It provides a reliable and modular platform for mounting Series C I/O modules. Designed for efficient industrial control, this chassis ensures seamless communication with the C300 controller through the I/O Link interface.

This chassis supports hot-swappable modules, which allows maintenance or expansion without interrupting system operations. Moreover, it provides a compact, cost-effective solution for applications where redundancy is not required. Its robust design accommodates diverse process control environments, maintaining system stability under industrial operating conditions.

In addition, the FC-IOCHAS-0003S integrates easily with Experion PKS systems, enabling flexible configuration for up to seven I/O modules. Therefore, it offers engineers both convenience and long-term operational reliability.

Key Features

• Supports up to 7 Series C I/O modules with hot-swap capability

• Direct I/O Link connection to Honeywell C300 controller

• Non-redundant, single-channel architecture for cost-efficient deployments

• Panel or rack mount design for flexible installation

• Compact dimensions with robust industrial-grade construction

• Operates reliably in temperatures from 0°C to +70°C

Technical Specifications

• Model Number: FC-IOCHAS-0003S

• Product Type: Standard I/O Chassis (non-redundant)

• System Compatibility: Honeywell Experion PKS, Series C I/O

• I/O Module Support: Up to 7 modules

• Power Supply: Requires separate Series C power supply module

• Communication Interface: I/O Link to C300 controller

• Redundancy: Not supported

• Mounting: Panel or rack mount

• Dimensions: 222 mm (H) × 483 mm (W) × 280 mm (D)

• Weight: 8.7 kg

• Operating Temperature: 0°C to +70°C

• Storage Temperature: −40°C to +85°C

• Humidity Range: 5% to 95% RH, non-condensing

Typical Applications

• Industrial process control systems requiring non-redundant I/O

• Modular expansion for Honeywell Experion PKS C300 controllers

• Chemical, pharmaceutical, and food & beverage process automation

• Pilot plants or compact process installations needing efficient I/O integration

Support & Maintenance

Honeywell offers comprehensive support for FC-IOCHAS-0003S, including documentation, installation guidance, and spare parts availability. Routine maintenance involves simple module swaps, minimizing downtime. Its durable design ensures extended operational life even in harsh industrial conditions.

FAQ

Q: Can the FC-IOCHAS-0003S operate with redundant I/O modules?
A: No, this chassis supports non-redundant, single-channel modules only.

Q: How many I/O modules can this chassis support?
A: It accommodates up to 7 Series C I/O modules.

Q: Does it allow hot-swapping of I/O modules?
A: Yes, modules can be replaced without powering down the system.

Q: What are the mounting options?
A: The chassis supports both panel and rack mounting.

Q: What is the recommended operating temperature?
A: The chassis operates reliably between 0°C and +70°C.
