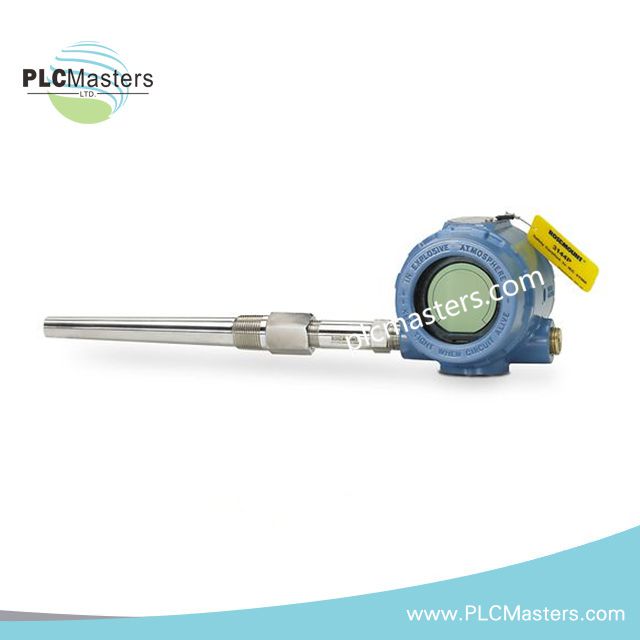

Rosemount 3144P Temperature Transmitter
$136.00
$435.00
Aprašymas
Product Description
The Rosemount 3144P Temperature Transmitter delivers exceptional precision and reliability for critical industrial processes. It supports dual-sensor input, allowing continuous measurement even if one sensor fails. Moreover, advanced diagnostics such as Hot Backup™, sensor drift alerts, and thermocouple degradation detection ensure uninterrupted process monitoring. Its robust dual-compartment housing enables field installation in harsh environments while maintaining stable operation.
By leveraging Rosemount X‑well™ Technology, the 3144P can measure temperature without process penetration, reducing installation costs and minimizing maintenance requirements. This transmitter is certified for SIL 2/3 applications, making it ideal for safety-critical systems in oil & gas, chemical, power generation, and food processing industries. In addition, flexible communication options, including HART® and FOUNDATION™ Fieldbus, simplify integration into modern automation systems.
Key Features
-
Dual sensor input for redundancy and uninterrupted measurement.
-
Hot Backup™ functionality to maintain process reliability during sensor failure.
-
Advanced diagnostics including sensor drift and thermocouple degradation detection.
-

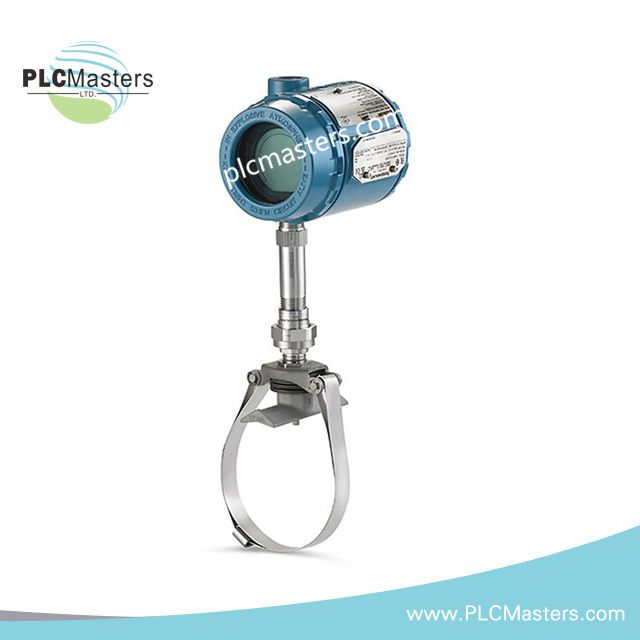

Rosemount X‑well™ Technology enables non-intrusive temperature measurement.
-
High accuracy with ±0.1 °C typical performance, fast response for precise control.
-
SIL 2/3 certification ensures compliance with safety instrumented system standards.
-
Flexible communication protocols: HART® and FOUNDATION™ Fieldbus.
-

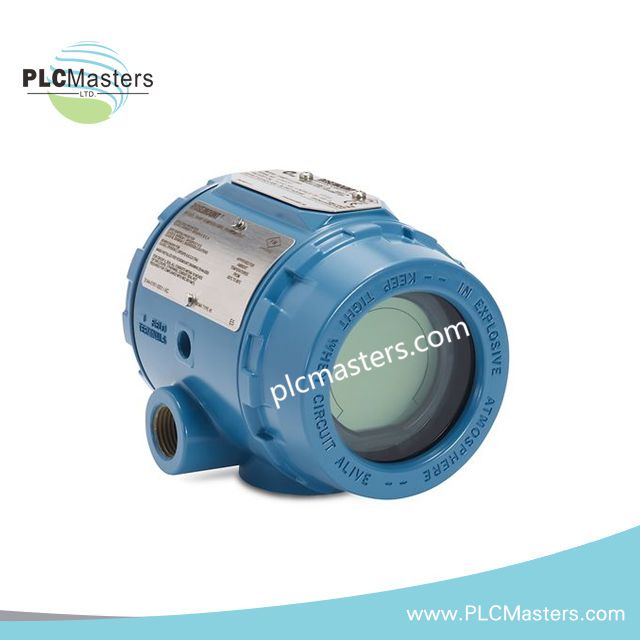

Dual-compartment housing protects electronics in extreme environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Rosemount |
| Model | 3144P |
| Type | Smart Temperature Transmitter |
| Sensor Inputs | Universal: RTD, Thermocouple (T/C), mV, Ohms |
| Input Capability | Single or dual sensor |
| Output Signal | 4–20 mA with HART®; FOUNDATION™ Fieldbus optional |
| Accuracy | ±0.1 °C typical (depends on sensor type) |
| Update Rate | 0.5 seconds |
| Diagnostics | Hot Backup™, sensor drift alert, thermocouple degradation, min/max tracking |
| Calibration | Transmitter-sensor matching (Callendar-Van Dusen constants), custom trim |
| Display | Large LCD with percent range graph and configuration buttons |
| Housing | Dual-compartment, field-mount design |
| Certifications | SIL 2/3, hazardous location approvals, marine type approvals |
| Operating Temperature | -40 °C to +85 °C (electronics) |
| Power Supply | 12–42.4 V DC |
| Mounting | Field-mount; compatible with DIN and pipe brackets |
Typical Applications
-
Continuous temperature monitoring in oil & gas and chemical processes.
-
Safety-critical systems requiring SIL 2/3 compliance.
-
Food processing and pharmaceutical industries needing high accuracy.
-
Remote installations using X‑well™ Technology to avoid thermowell penetration.
-
Integration with HART® or Fieldbus-based distributed control systems.
FAQ
Q1: Can the 3144P operate with two different sensor types simultaneously?
Yes, it supports dual-sensor input, including RTD and thermocouple combinations.
Q2: How does Hot Backup™ enhance reliability?
Hot Backup™ automatically switches to the secondary sensor without interrupting measurements.
Q3: Is the transmitter suitable for hazardous locations?
Yes, it carries hazardous location approvals and meets SIL 2/3 requirements.
Q4: Can I calibrate the transmitter in the field?
Yes, calibration options include transmitter-sensor matching and custom trimming.
Q5: What communication protocols are supported?
The 3144P supports 4–20 mA with HART® and FOUNDATION™ Fieldbus interfaces.
