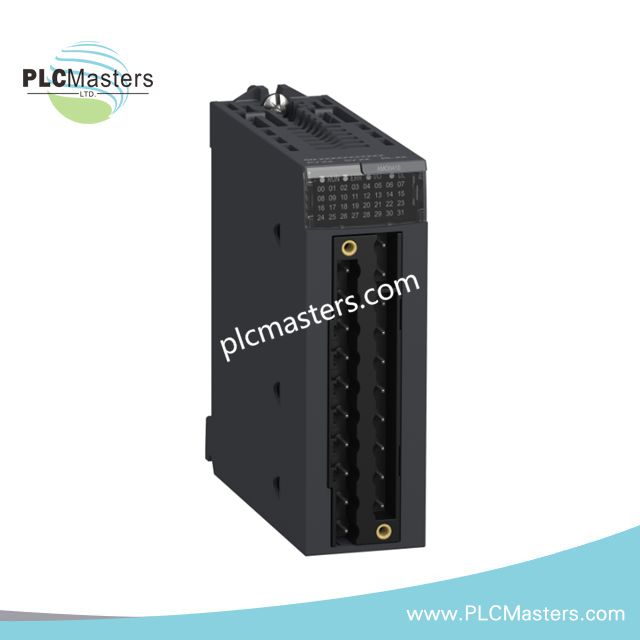

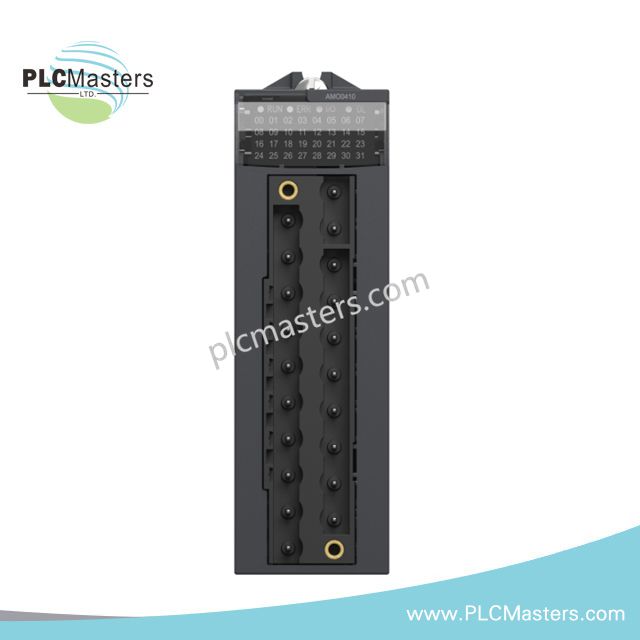

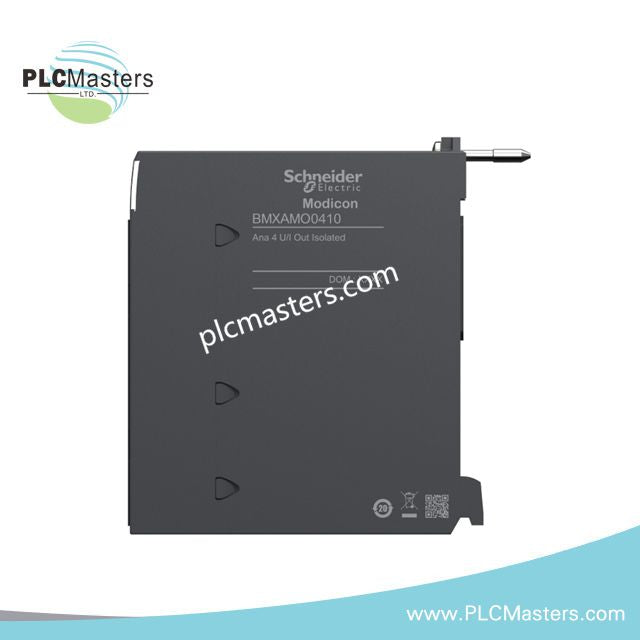

Schneider BMXAMO0410 Analog Isolated Output Module

Overview

The Schneider Electric BMXAMO0410 is a high-performance analog isolated output module from the Modicon X80 series. It delivers four independent analog outputs for precise industrial control. Each channel supports multiple voltage and current ranges, offering flexibility for demanding automation tasks. This module provides excellent accuracy and reliability across harsh environments, ensuring stable operation in manufacturing, energy, and process industries. It meets major global certifications and integrates seamlessly with Modicon M340 and Modicon M580 controllers.

Technical Specifications

• Model: BMXAMO0410

• Series: Modicon X80

• Type: Analog Isolated High-Level Output Module

• Channels: 4 isolated analog outputs

• Signal Types:

• Current: 0–20 mA, 4–20 mA

• Voltage: ±10 V, 0–10 V, 0–5 V, 1–5 V

• Resolution: 15 bits + sign

• Conversion Time: ≤ 1 ms

• Accuracy:

• ±0.1% of full scale at 25°C

• ±0.2% of full scale from 0 to 60°C

• Temperature Drift: 45 ppm/°C (typical)

• Isolation Voltage:

• 1400 VDC between channels and ground

• 1400 VDC between channels and bus

• 750 VDC between channels

• Crosstalk Attenuation: ≥ 80 dB

• EMI/RFI Rejection: 100 dB (100 kHz–10 MHz)

• Load Impedance:

• ≥ 1000 Ω for voltage output

• ≤ 500 Ω for current output

• Fault Detection: Open circuit and short circuit configurable modes

• Status Indicators:

• 1 green LED for RUN

• 4 green LEDs for channel diagnostics

• 1 red LED for ERR

• 1 red LED for I/O

• Power Supply: Internal rack bus

• Power Consumption:

• 3 W typical at 24 VDC

• 3.6 W maximum at 24 VDC

• Current Consumption:

• 150 mA at 3.3 VDC

• 140 mA at 24 VDC

• MTBF: 1,000,000 hours

• Operating Temperature: 0°C to 60°C

• Storage Temperature: -40°C to 85°C

• Relative Humidity: 5% to 95%, non-condensing

• Vibration Resistance: 3 g

• Shock Resistance: 30 g

• Altitude: Up to 2000 m (derating up to 5000 m)

• Protection Rating: IP20

• Weight: 0.15 kg

• Dimensions: 32 × 100 × 86 mm
