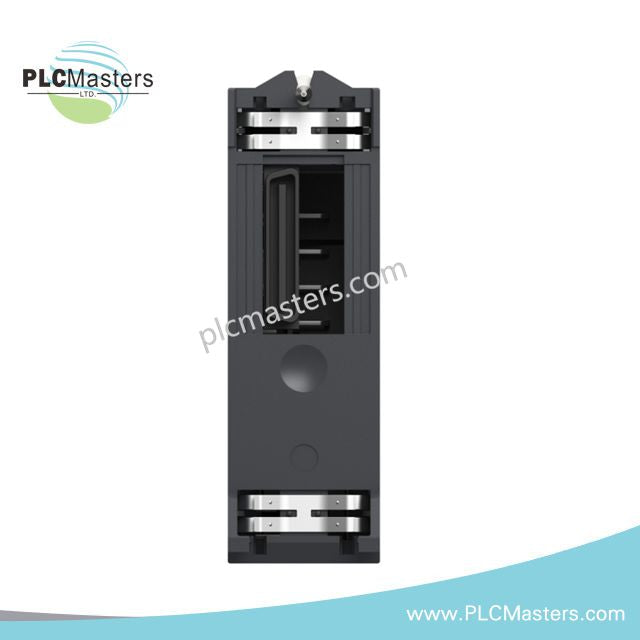

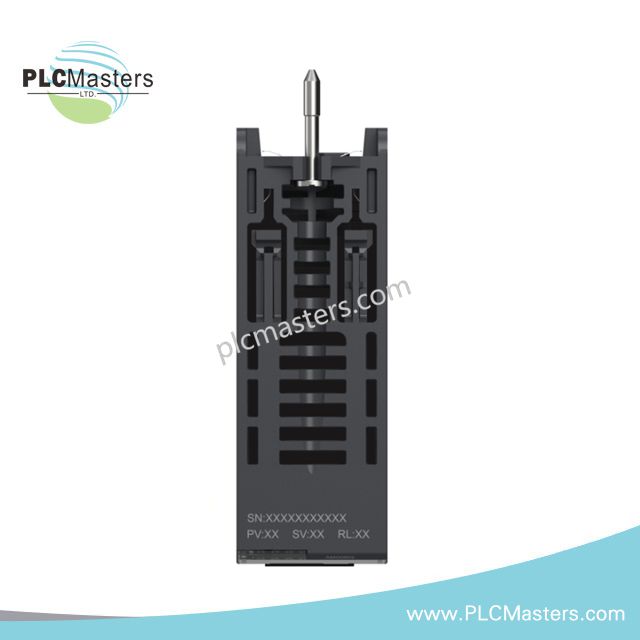

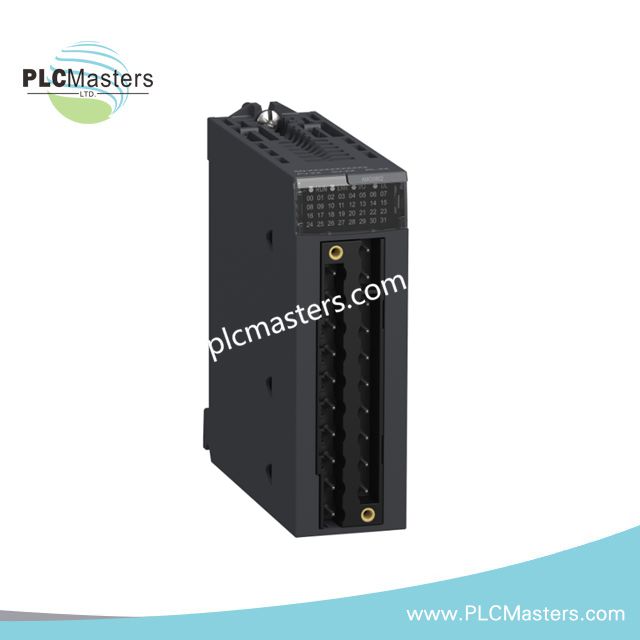

Schneider BMXAMO0802RU Analog Output Module

Overview

The Schneider Electric BMXAMO0802RU is a ruggedized analog output module designed for Modicon X80 automation systems. It provides 8 non-isolated high-level current outputs with 16-bit resolution, offering fast and accurate performance for demanding industrial applications.

Technical Specifications

• Model: BMXAMO0802RU

• Series: Modicon X80

• Type: Analog Output Module (Non-Isolated)

• Number of Channels: 8 analog outputs

• Signal Type: Current — 0 to 20 mA, 4 to 20 mA

• Resolution: 16 bits

• Measurement Accuracy: ≤0.25% full scale (0–60°C), 0.1% full scale (25°C)

• Temperature Drift: 45 ppm/°C

• Isolation Voltage: 1400 V DC (channel-to-earth and channel-to-bus)

• Load Impedance: ≤350 Ω (0–20 mA and 4–20 mA)

• Conversion Time: ≤4 ms

• Cross-talk Attenuation: ≥80 dB

• Noise Rejection (EMI/RFI): ≥80 dB (100 kHz – 10 MHz)

• Fault Detection: Open circuit (4–20 mA), short circuit (0–20 mA)

• Power Supply: Internal from backplane (3.3 V DC and 24 V DC)

• Power Consumption:

• 3.6 W typical at 24 V DC

• 3.9 W maximum at 24 V DC

• 0.35 W typical at 3.3 V DC

• 0.48 W maximum at 3.3 V DC

• Current Consumption:

• 150 mA at 3.3 V DC

• 135 mA at 24 V DC

• MTBF Reliability: 1,500,000 hours

• Operating Temperature: 0°C to 60°C

• Storage Temperature: -40°C to 85°C

• Relative Humidity: 5% to 95% (non-condensing at 55°C)

• Vibration Resistance: 3 gn

• Shock Resistance: 30 gn

• Protection Rating: IP20

• Altitude: Up to 2000 m (5000 m with derating)

• Indicators:

• 1 green RUN LED

• 8 green channel diagnostic LEDs

• 1 red ERR LED

• 1 red I/O LED

• Connection Type: 20-way connector

• Dimensions (W x H x D): 32 × 100 × 86 mm

• Weight: 0.15 kg
