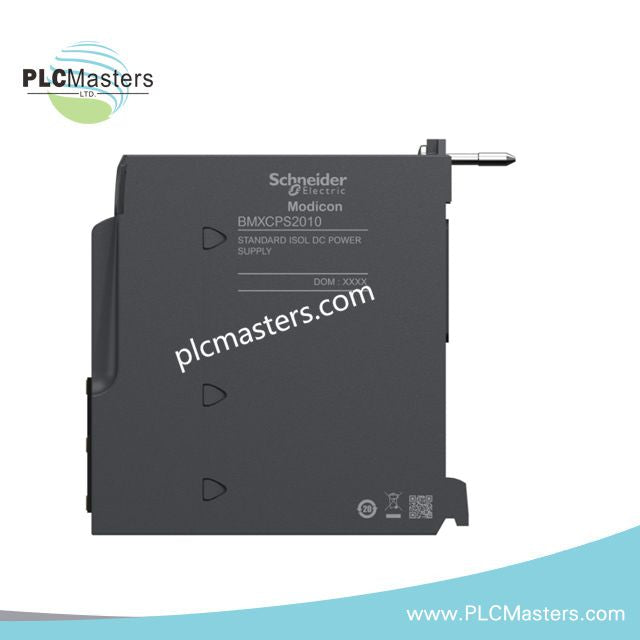

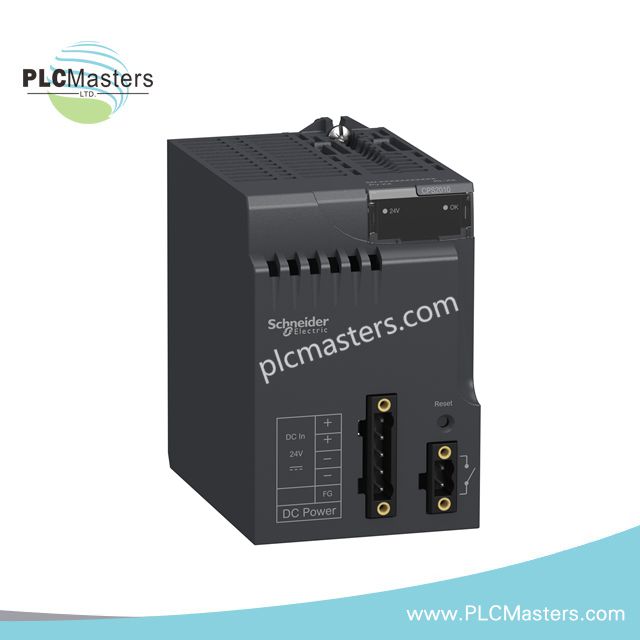

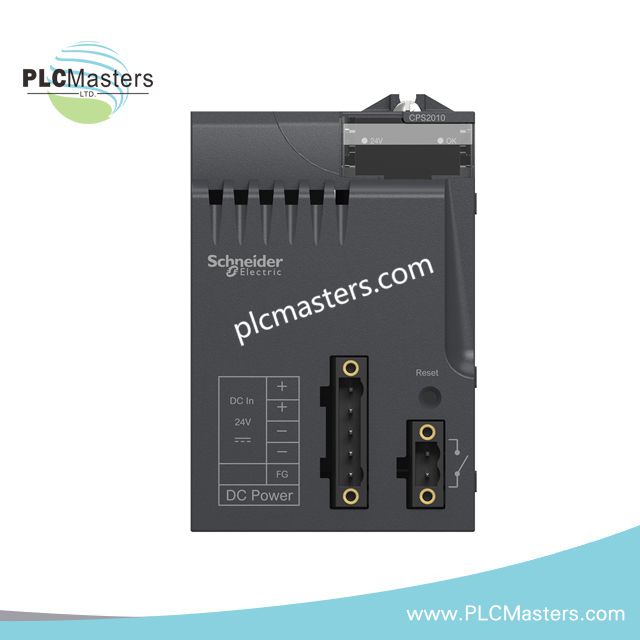

Schneider BMXCPS2010 Power Supply Module

Overview

The Schneider Electric BMXCPS2010 is a reliable power supply module for the Modicon X80 platform. It delivers 24V DC input and 16.8W output for automation systems. The module ensures stable power distribution with overload, overvoltage, and short-circuit protections. It features a robust design, modular construction, and IP20 protection, making it suitable for medium to large process applications. With easy integration and standard connectors, it supports efficient maintenance and consistent performance across your control system.

Technical Specifications

• Range of Product: Modicon X80

• Product Type: Power supply module

• Primary Voltage: 24 V isolated

• Input Current: 1 A at 24 V

• Secondary Power: 16.8 W at 24 V DC; 8.3 W at 3.3 V DC

• Current at Secondary Voltage: 0.7 A at 24 V; 2.5 A at 3.3 V DC

• Maximum Power Dissipation: 8.5 W

• Primary Voltage Limit: 18–31.2 V

• Inrush Current: 30 A at 24 V

• I²t on Activation: 0.6 A²·s at 24 V

• It on Activation: 0.15 A·s at 24 V

• Protection: Internal fuse (primary, non-accessible), overload, overvoltage, and short-circuit (secondary)

• Status LED: 1 green LED indicates rack voltage OK

• Control Type: RESET push-button for cold restart

• Electrical Connections: 1 connector for 2 alarm relays; 1 connector for 5 line supply, protective earth, and 24 V DC input sensor

• Maximum Cable Distance: 20 m with 1.5 mm² copper; 30 m with 2.5 mm² copper

• Insulation Resistance: ≥10 MΩ primary/ground; ≥10 MΩ primary/secondary

• Net Weight: 0.29 kg

• Environmental Rating: IP20, vibration 3 gn, shock 30 gn

• Dielectric Strength: 1500 V primary/ground and primary/secondary

• Ambient Temperature for Operation: 0–60 °C (32–140 °F)

• Ambient Temperature for Storage: -40–85 °C (-40–185 °F)

• Relative Humidity: 5–95% without condensation

• Operating Altitude: 0–2000 m (up to 5000 m with derating)
