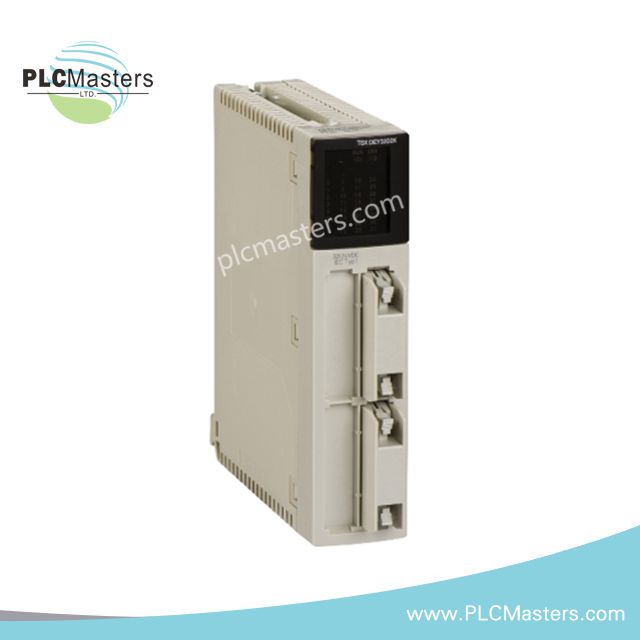

Schneider TSXDEY32D2K Discrete Input Module

Overview

The TSXDEY32D2K is a discrete input module for the Modicon Premium PLC platform by Schneider Electric. It provides 32 isolated current sink inputs compatible with 2- or 3-wire proximity sensors. This module ensures fast response times and robust electrical isolation. It suits industrial automation systems requiring reliable digital input processing.

Technical Specifications

• Model Number: TSXDEY32D2K

• Platform: Modicon Premium PLC

• Input Type: Discrete (digital) inputs

• Number of Inputs: 32 isolated current sink inputs

• Input Voltage: 24 V DC positive

• Sensor Power Supply: 19–30 V DC

• Input Current: 3.5 mA

• Input Impedance: 6300 Ω at state 1

• Voltage Thresholds:

• State 1: ≥ 11 V

• State 0: ≤ 5 V

• Current Thresholds:

• State 1: ≥ 3 mA

• State 0: ≤ 1.5 mA

• Response Time: ≤ 7 ms

• Electrical Isolation: > 10 MΩ at 500 V DC

• Power Dissipation: 1 W + 0.1 W per active channel

• Current Consumption:

• 135 mA at 5 V DC

• 160 mA at 24 V DC

• Connection Type: HE-10 connector

• Module Format: Standard

• Dimensions: 26 × 18 × 5.5 cm (L × W × H)

• Weight: 0.3 kg

• Operating Temperature: 0°C to +60°C

• Storage Temperature: –25°C to +70°C

• Humidity: 10–95% RH

• Altitude Limit: Up to 2000 m

• Protection Rating: IP20
