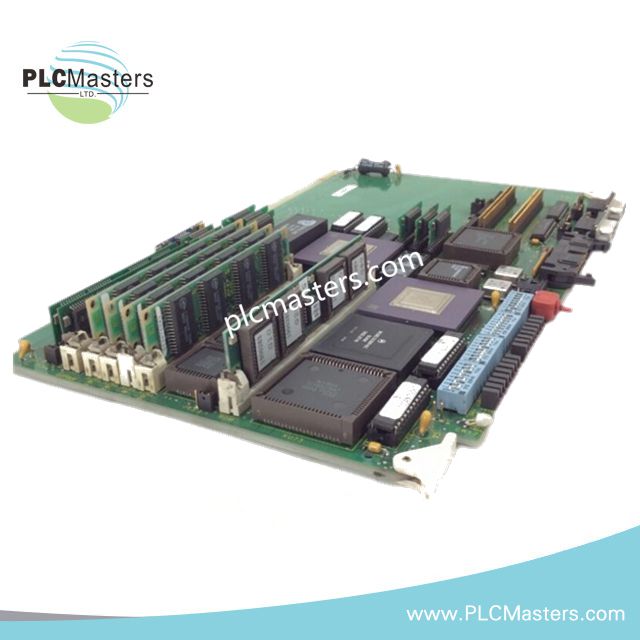

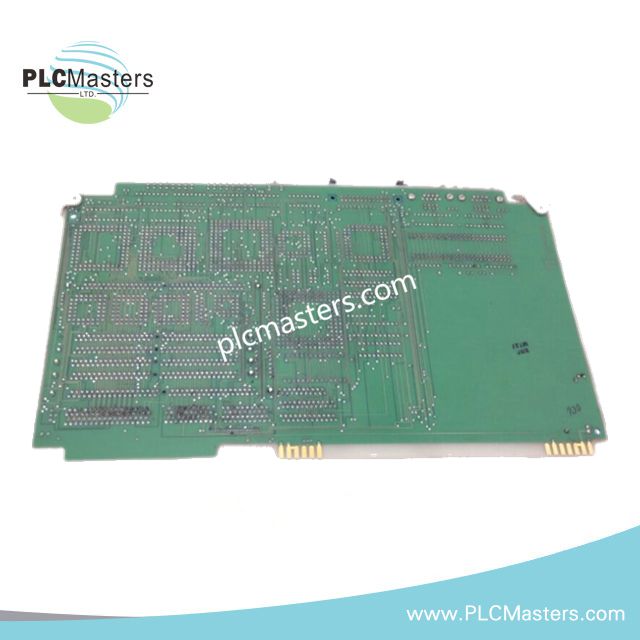

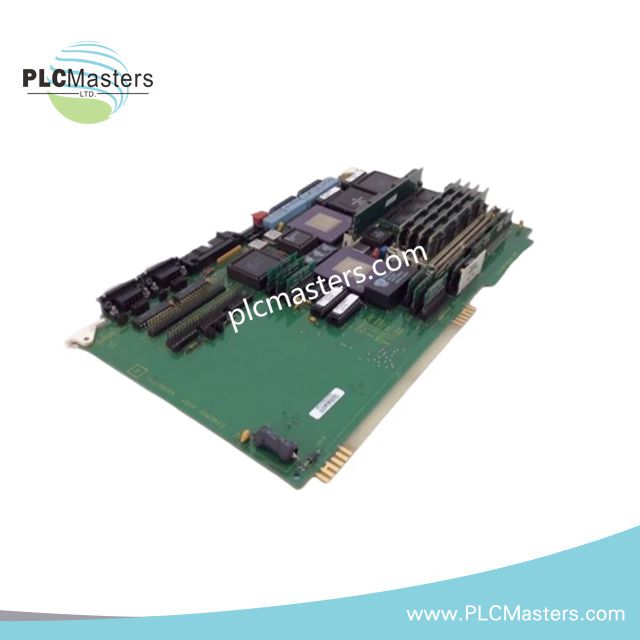

ABB IIMCP02 Multibus Communication Processor Module

Overview

The ABB IIMCP02 is a high-performance Multibus Communication Processor Module designed for ABB Bailey Infi 90 and Net 90 Distributed Control Systems. It acts as the central communication hub, facilitating reliable data exchange between operator stations, controllers, and field devices while providing advanced diagnostic capabilities.

Key Technical Specifications

Core Features

• Control Coordination: Centralized management of distributed control operations and inter-module synchronization.

• Real-time Data Processing: Supports calculations, logic execution, and parameter analysis in real time.

• Reliable Communication: Ensures seamless interaction between processors, workstations, and network devices.

• Fault Diagnostics: Continuous monitoring, alarm generation, and detailed diagnostic reports.

• System Management: Facilitates configuration, user access control, and parameter settings.

Applications

• Power Generation: Coordinating turbine and generator controls.

• Chemical and Process Plants: Ensuring robust communication between controllers and field devices.

• Marine Automation: Reliable shipboard distributed control.

• Industrial Automation: Core communication processor for Infi 90 and Net 90 platforms.

FAQ

Q: Can the IIMCP02 function outside ABB Infi 90 / Net 90 systems?
A: No, it is designed specifically for use within these distributed control systems. Standalone operation is not supported.

Q: What maintenance is required?
A: Periodic diagnostic checks, firmware updates, and configuration validation are recommended to ensure optimal performance.

Q: Are there alternative models with similar functionality?
A: Related communication processors include ABB IIMCP01 and IIMCP03 modules, which provide similar multibus communication but vary in protocol support and processing capacity.
