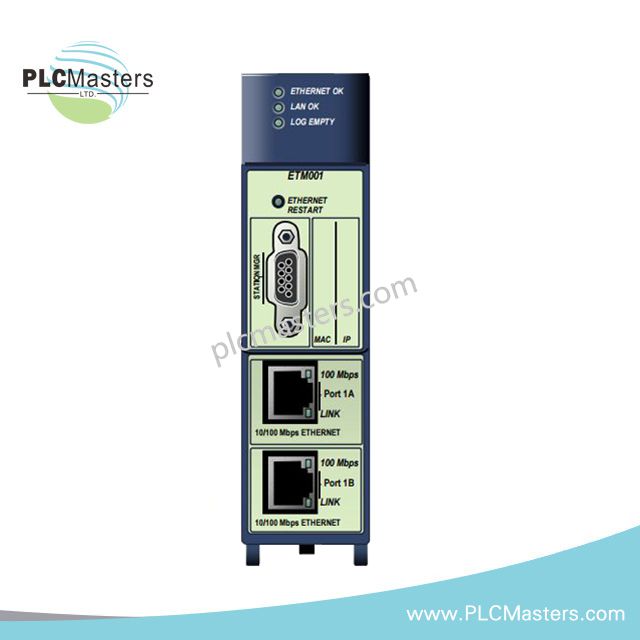

GE IC695ETM001-CA RX3i Ethernet Interface Module

Overview

The GE IC695ETM001-CA is an Ethernet interface module for PACSystems RX3i controllers. It enables high-speed, reliable communication using TCP/IP and SRTP protocols. The module supports both client and server operations for distributed control. It allows seamless integration with PACSystems devices, Series 90 controllers, and VersaMax systems. This module simplifies SCADA and networked automation system connectivity. An embedded Ethernet switch allows daisy chaining multiple nodes for efficient network design.

Technical Specifications

• Module Type: RX3i Ethernet Interface Module

• Processor Speed: 200 MHz Ethernet processor

• Communication Protocols: TCP/IP, SRTP, Ethernet Global Data (EGD)

• Ports: 2 × RJ-45 10BaseT/100BaseTX with auto-sensing and full/half duplex

• Embedded Ethernet Switch: Yes, supports node daisy chaining

• IP Addressing: One configurable IP address per module

• Station Manager Port: 9-pin female D-connector (RS-232)

• Backplane Compatibility: Universal RX3i backplane with PCI bus support

• Power Consumption: 840 mA @ 3.3 VDC, 614 mA @ 5 VDC

• Status Indicators: LEDs for link, activity, and module health

• Dimensions (L × W × H): 3.8 cm × 13.3 cm × 13.3 cm

• Weight: 0.2 kg

• Mounting: Occupies one slot in RX3i base

• Operating Temperature: 0°C to 60°C

• Storage Temperature: -40°C to 85°C

• Humidity: 5% to 95% RH, non-condensing

• LAN Standards: IEEE 802.2 LLC Class I, IEEE 802.3 CSMA/CD 10/100 Mbps
