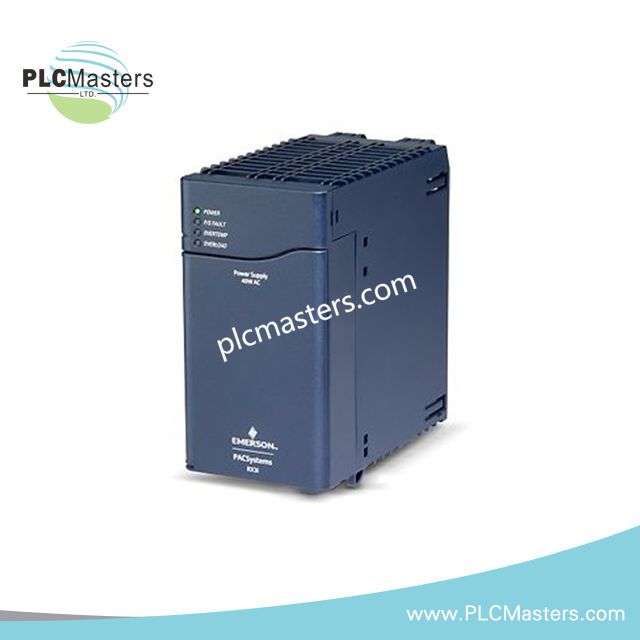

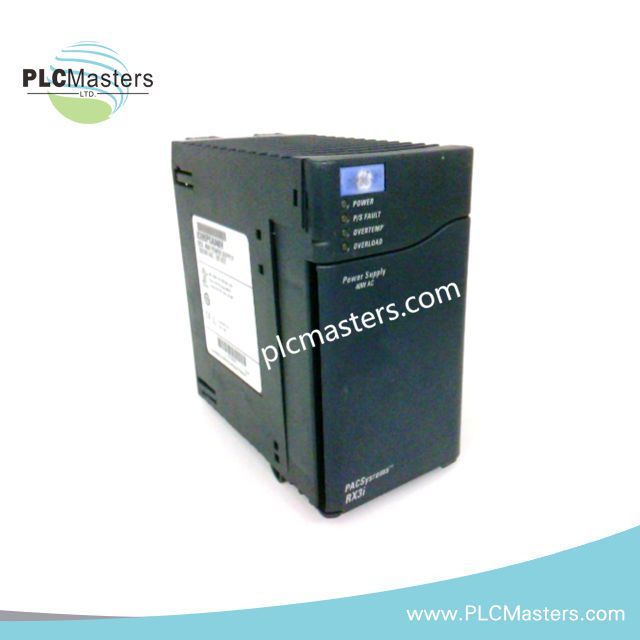

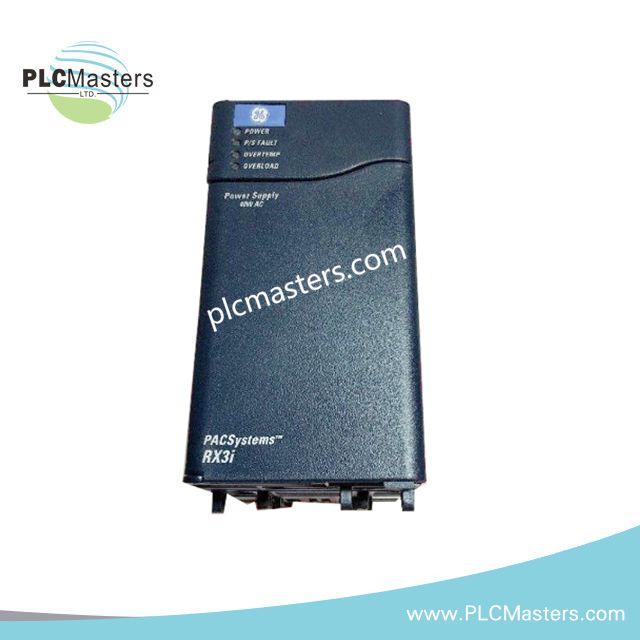

GE IC695PSA040 RX3i Universal Power Supply

Overview

The GE IC695PSA040 is a 40-watt universal power supply module designed for the PACSystems RX3i platform. It provides reliable power for CPUs, communication modules, and I/O devices in industrial automation systems. The module supports both AC (85–264 VAC) and DC (100–300 VDC) input ranges, offering installation flexibility across diverse applications. This power supply delivers stable, regulated outputs for logic and peripheral equipment. It ensures efficient operation with built-in protection against overload, short-circuit, and overheat conditions. The IC695PSA040 occupies two slots on the RX3i base and is suitable for environments requiring consistent performance and durability.

Technical Specifications

• Manufacturer: GE Fanuc Emerson

• Product Type: RX3i Universal Power Supply

• Part Number: IC695PSA040

• Power Output: 40 watts total

• Input Voltage Range:

• AC: 85–264 VAC

• DC: 100–300 VDC

• Input Power (Full Load): 70 watts maximum

• Output Voltages:

• +5.1 VDC @ 8 A for logic modules

• +24 VDC @ 2 A for peripherals

• +3.3 VDC for internal use

• Output Current Limits:

• +24 VDC: 0–1.6 A

• +5.1 VDC: 0–6 A

• +3.3 VDC: 0–9 A

• Isolation Voltage:

• 250 VAC continuous

• 1500 VAC for 1 minute (input to backplane)

• Ripple/Noise: 150 mV maximum

• Efficiency: ≥85%

• Ride-Through Time: 20 milliseconds

• Protection Features: Overload, short-circuit, and overheat protection

• Status Indicators: Four LEDs – Power, Fault, Overheat, and Overload

• Wiring Terminals: Accepts 14–22 AWG wire, 6 A maximum per terminal

• Mounting: Standard RX3i rack installation (occupies two slots)

• Maximum Number of Power Supplies per Rack: Four units

• Operating Temperature: 0°C to 60°C

• Storage Temperature: -40°C to 85°C

• Humidity Range: 5% to 95% RH, non-condensing

• Weight: 1.19 lbs
