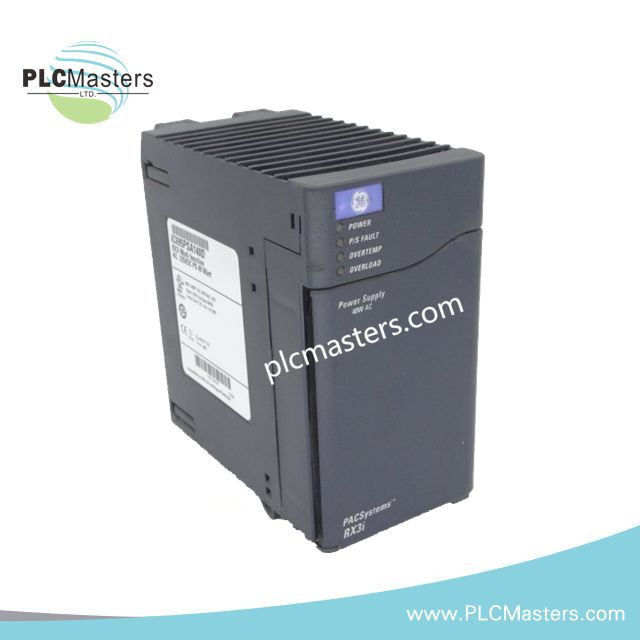

GE IC695PSA140-CA Universal Power Supply

Overview

The GE IC695PSA140-CA is a 40-watt universal power supply for PACSystems RX3i. It delivers stable DC output for CPUs, I/O modules, and communication devices. The module supports both AC and DC input and allows redundant configurations for high-availability applications. It installs easily in RX3i backplanes and provides reliable performance in industrial environments. Horizontal mounting in slot 0 is recommended for optimal operation.

Technical Specifications

• Input Voltage (AC): 85–264 VAC

• Input Voltage (DC): 100–300 VDC

• Output Power: 40 watts total

• Regulated Outputs: +5.1 VDC @ 8 A, +24 VDC @ 2 A, +3.3 VDC (internal use)

• Current Consumption: Approx. 801 mA

• Voltage Regulation: ±0.5%

• Output Frequency: 14 Hz

• Program Capacity: 48 KB (if used in programmable configurations)

• Installation: Compatible with RX3i backplanes, horizontal mounting only

• Protection Features: Overload and short-circuit protection; surge protection recommended

• Environmental Ratings: Operating temperature 0°C to 60°C; storage temperature -40°C to 85°C; humidity 5%–95% RH non-condensing

• Grounding: Independent copper ground wire required; ground resistance ≤100Ω

• Special Applications: Load sharing and redundancy

• Maximum Modules per Rack: Up to four IC695PSA140-CA power supplies
