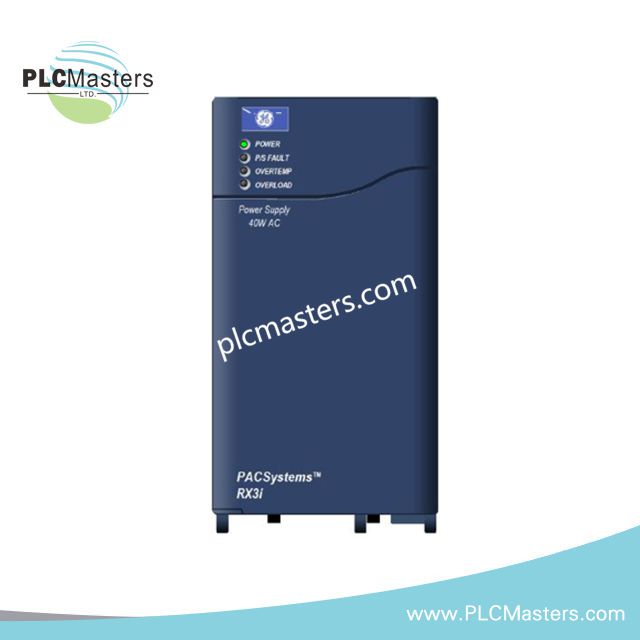

GE IC695PSA140 Universal Power Supply

Overview

The GE Fanuc IC695PSA140 is a universal base power supply for PACSystems RX3i automation platforms. It delivers reliable and efficient power to CPUs, I/O modules, and communication devices in demanding industrial environments. This 40-watt power supply supports both AC and DC input sources, making it suitable for flexible system configurations. The IC695PSA140 enables load sharing and redundant operation, ensuring continuous performance and high availability. It features advanced diagnostics and LED indicators for clear power and fault status monitoring. Its compact design installs easily into the RX3i universal backplane, occupying only one slot.

Technical Specifications

• Manufacturer: GE Fanuc

• Product Type: Universal Power Supply

• Product Line: PACSystems RX3i

• Model Number: IC695PSA140

• Nominal Rated Voltage: 120/240 VAC or 125 VDC

• AC Input Voltage Range: 85 to 264 VAC

• DC Input Voltage Range: 100 to 300 VDC

• Input Frequency: 47 to 63 Hz (AC input)

• Input Power (Maximum): 70 watts

• Output Power: 40 watts total

• Output Voltages:

• +5.1 VDC at 8 A

• +24 VDC at 2 A (relay output)

• +3.3 VDC (internal use only)

• Output Voltage Range:

• 24 VDC: 19.2 to 28.8 VDC

• 5.1 VDC: 5.0 to 5.2 VDC

• 3.3 VDC: 3.1 to 3.5 VDC

• Protection Features:

• Auto-ranging input

• Current limiting with automatic shutdown

• Smart switch fusing

• Diagnostics: LED indicators for power and fault conditions

• Isolation: 250 VAC continuous, 1500 VAC for one minute

• Ride-Through Time: 20 milliseconds minimum

• Mounting: Fits RX3i universal backplane, occupies one slot

• Wiring Terminals: Accepts 14 AWG to 22 AWG wire

• Current per Terminal: 6 amperes

• Environmental Ratings:

• Operating Temperature: 0°C to 60°C

• Storage Temperature: -40°C to 85°C

• Humidity: 5% to 95% RH, non-condensing

• Weight: 1.19 lbs
