Overview

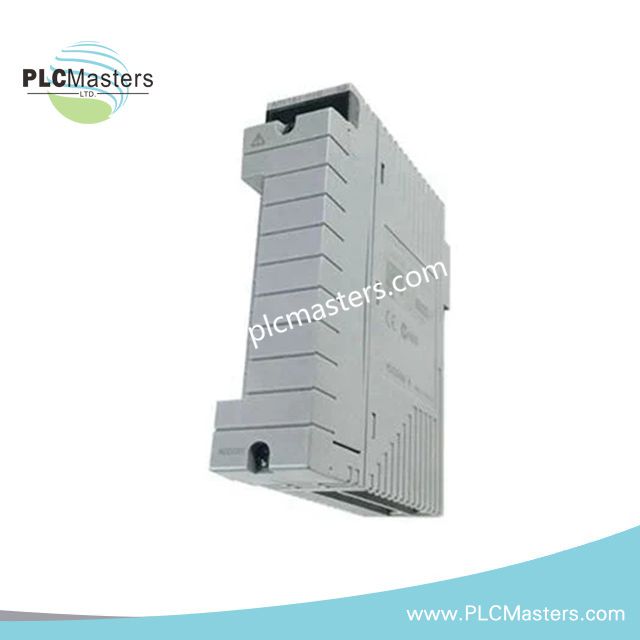

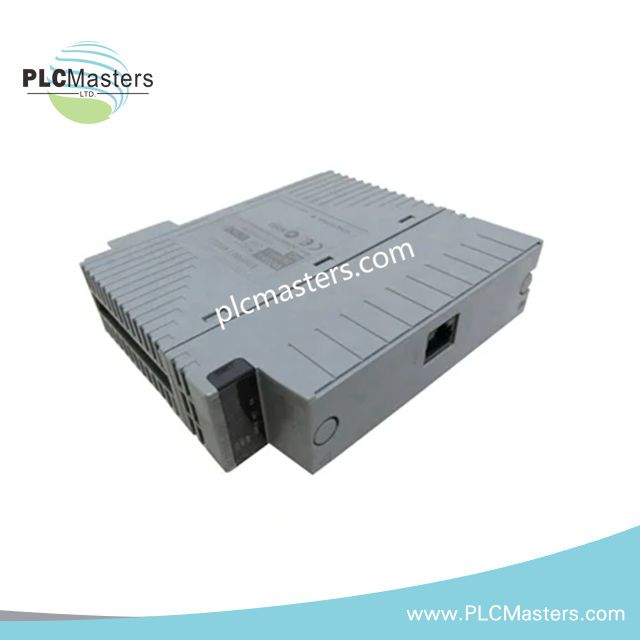

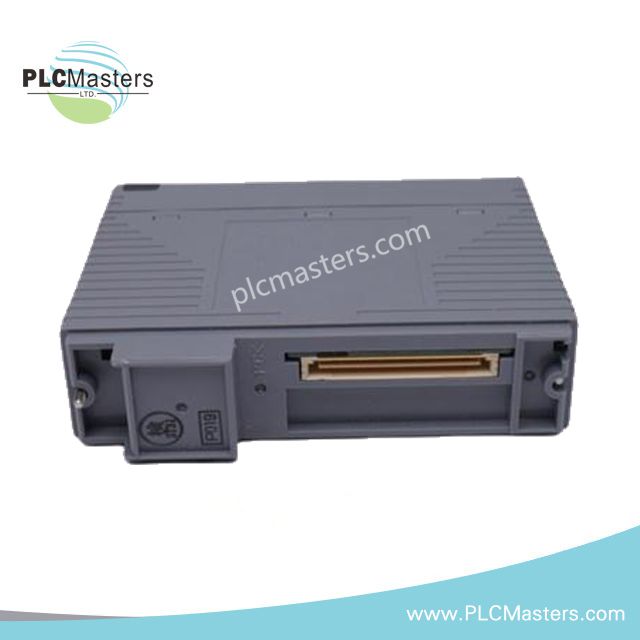

The Yokogawa ASI533‑H00 is a high-precision 8-channel isolated analog output module designed for industrial control and process automation systems. Each channel delivers a standard 4–20 mA signal, suitable for driving actuators or control loops directly. The module features built-in safety barriers, enabling secure installation in hazardous areas while ensuring galvanic isolation between field devices and the control system.
Technical Specifications
Output Characteristics
-
Number of output channels: 8 (isolated)
-
Output signal: 4–20 mA
-
Maximum output current: 23 mA
-
Allowable load resistance: 0–750 Ω (at 20 mA); 0–600 Ω (at 23 mA)
-
Accuracy: ±48 µA
-
Step response time: 100 ms
-
Data update period: 10 ms
-
Temperature drift: ±16 µA per 10 °C
Electrical Performance
-
Withstanding voltage: 1500 V AC
-
Maximum current consumption: 150 mA (5 V DC), 350 mA (24 V DC)
Physical Dimensions
-
Dimensions: 107.5 × 130 × 32.8 mm
-
Weight: 0.5 kg
Key Features
-
Built-in isolation barriers for safe operation
-
Eight fully independent isolated channels
-
High-precision output for demanding process control
-
Fast response and low temperature drift
Applications
-
Industrial process control
-
Distributed Control Systems (DCS)
-
Driving field instruments in hazardous areas
-
Precise control of flow, pressure, or level loops
FAQ
Q: What load resistance does the ASI533‑H00 support?
A: It supports 0–750 Ω at 20 mA output and 0–600 Ω at 23 mA output.
Q: Can the module be installed in hazardous environments?
A: Yes, it has built-in safety barriers to ensure secure operation in hazardous areas.
Q: How does it compare to other analog output modules?
A: The ASI533‑H00 offers eight fully isolated channels, fast response, high accuracy, and low temperature drift, making it ideal for precise industrial control systems.
