Description

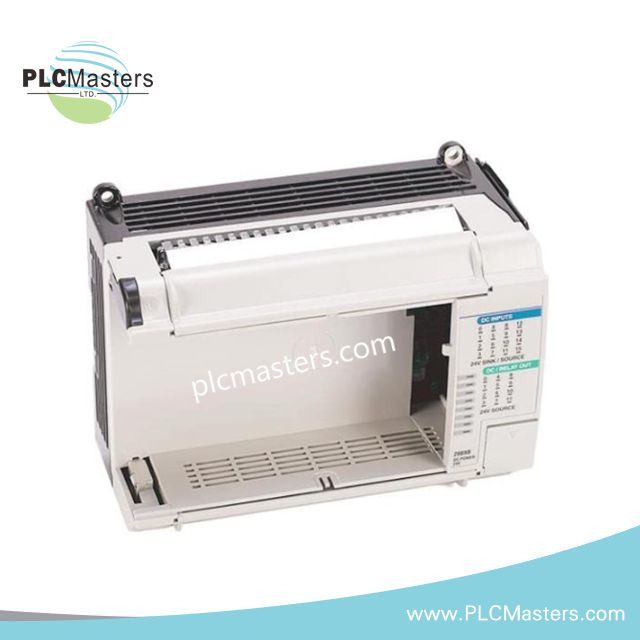

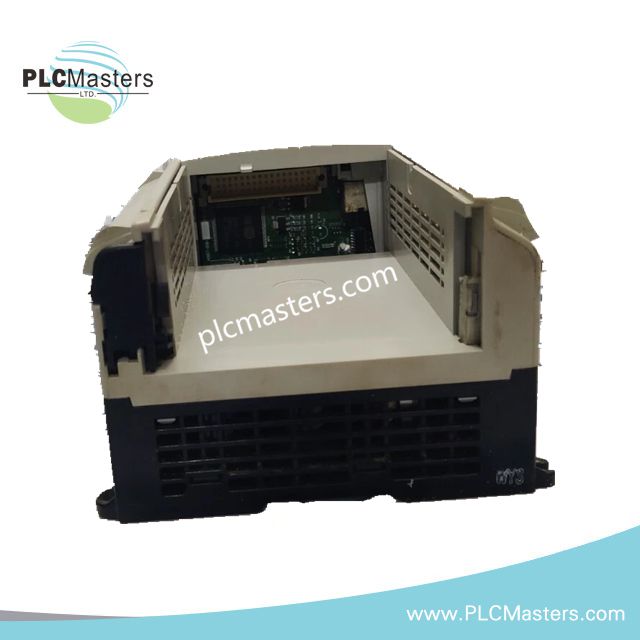

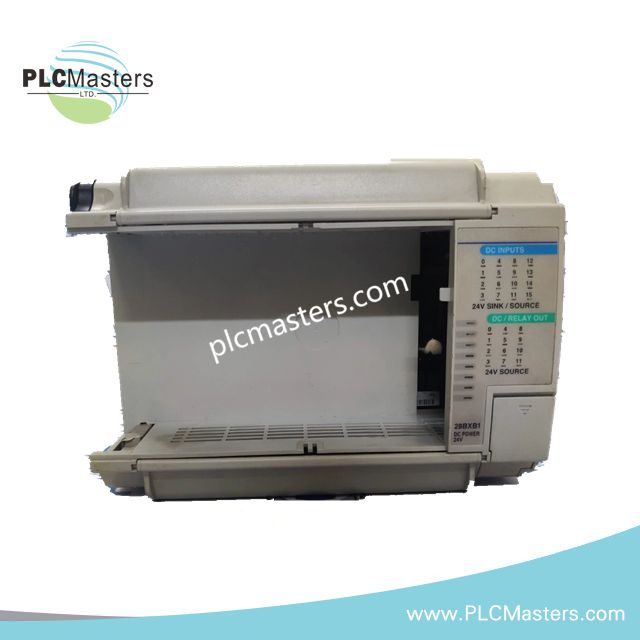

Allen-Bradley 1764-28BXB1 MicroLogix 1500 Base Unit
Configured for discrete I/O execution in MicroLogix 1500 control systems, the Allen-Bradley 1764-28BXB1 (1764 MicroLogix 1500 Base Unit) provides direct physical/electrical execution for 24 VDC digital input processing, relay switching, and transistor output control within PLC architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1764-28BXB1 |
| Brand | Allen-Bradley |
| Origin | United States |
| Weight | 1.98 lbs |
| Dimensions | 90 x 87 x 180 mm |
| Operating Temp | -20 to +60 deg C |
| Power Consumption | Not specified; 24 VDC line power |
| Product Type | PLC Base Unit |
| Product Family | MicroLogix 1500 |
| I/O Configuration | 28 point base module |
| Power Supply | 24 VDC |
| Input Channels | 16 digital inputs, 24 VDC sink/source |
| Output Channels | 6 relay outputs + 6 transistor FET outputs |
| User Power Output | 24 VDC at 400 mA |
| Communication Interfaces | EtherNet/IP, RS-232 serial |
| Storage Temperature | -40 to +85 deg C |
| Humidity Rating | 5-95% non-condensing |
| Vibration Resistance | 3-5 G, 10-500 Hz |
| Shock Resistance | 30 G panel mount, 15 G DIN rail |
| Certifications | UL 508, CSA, CE, Class I Div 2 Groups A-D |
EtherNet/IP and I/O Density Scaling Characteristics
The Allen-Bradley 1764-28BXB1 base unit is part of the MicroLogix 1500 PLC platform and provides integrated discrete signal handling through a mixed I/O configuration. The unit supports 16 digital inputs and 12 output points consisting of six relay channels and six FET transistor channels.
The MicroLogix 1500 architecture supports EtherNet/IP and serial communication interfaces for PLC network integration. I/O density scaling is managed through the controller platform and expansion configuration, allowing discrete machine control signals to be processed through the base unit hardware.
The module design supports firmware flash compatibility within the MicroLogix 1500 product family, allowing controller software revisions to maintain communication and I/O execution compatibility.
Frequently Asked Questions
Q: What type of output circuits are available on the 1764-28BXB1?
A: The base unit provides six relay outputs and six transistor FET outputs for discrete load switching.
Q: What input voltage level is supported by the digital input channels?
A: The digital inputs operate with 24 VDC field signals and support sink/source input configurations.
Q: Can the 1764-28BXB1 communicate with Ethernet-based PLC networks?
A: The available specifications list EtherNet/IP and RS-232 serial communication interfaces for system integration.
Field Installation Guidelines
Install the 1764-28BXB1 on a control panel or DIN rail mounting structure according to the MicroLogix 1500 installation requirements. Verify that the 24 VDC power wiring polarity matches the terminal designation before energizing the module.
Separate communication cables and low-level signal wiring from high-voltage power conductors and switching devices. Apply shielded cable practices where electromagnetic interference may affect signal integrity, with cable shields connected according to the control cabinet grounding standard.
Confirm input and output terminal assignments before field wiring. Check relay and transistor output load compatibility with connected devices before commissioning the control system.
