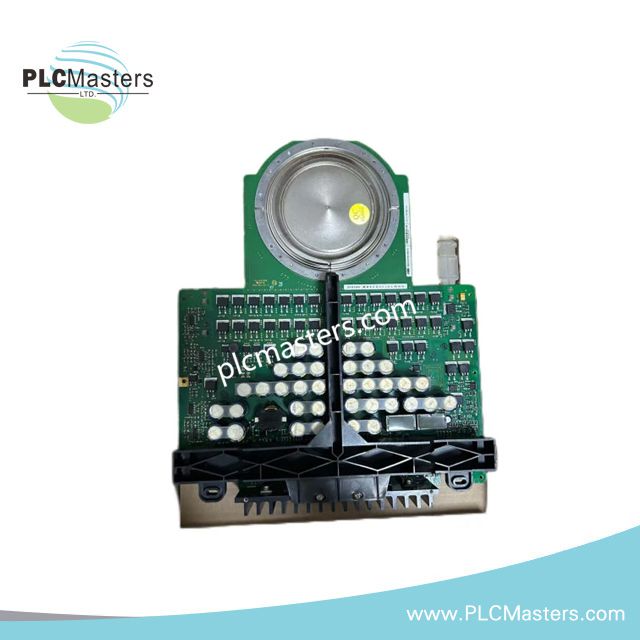

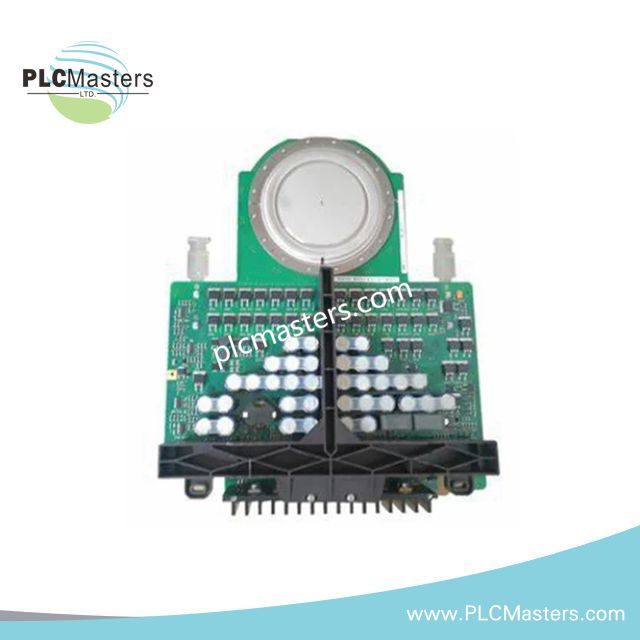

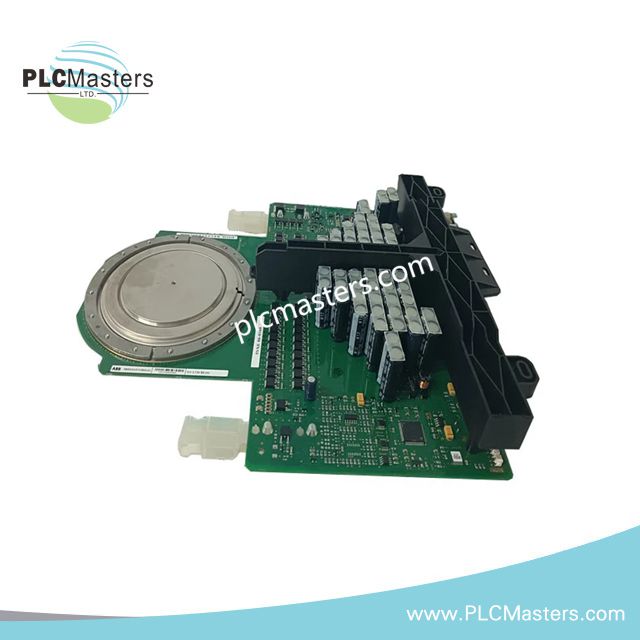

ABB 3BHB002953R0107 IGCT Power Module
$258.00
$520.00
Description
Overview
The ABB 3BHB002953R0107 is a high-performance IGCT (Integrated Gate-Commutated Thyristor) power module designed for medium-voltage drive systems and industrial converters. Combining the rugged characteristics of traditional thyristors with advanced gate control similar to IGBTs, this module delivers high efficiency, reliable switching, and long operational life in demanding industrial environments.
Technical Specifications
| Attribute | Details |
|---|---|
| Manufacturer | ABB |
| Part Number | 3BHB002953R0107 |
| Module Type | IGCT Power Module |
| Technology | Integrated Gate-Commutated Thyristor (IGCT) |
| Voltage Rating | Up to 4.5 kV (system dependent) |
| Current Rating | High-current capability up to several kA |
| Switching Frequency | Optimized for low to medium frequencies |
| Efficiency | >98% in typical drive applications |
| Dimensions | Compact form factor for seamless integration |
| Weight | 1 kg |
| Cooling | Requires forced air or liquid cooling depending on installation |
| Operating Temperature | −40 °C to +85 °C |
| Protection Class | IP20 (suitable for cabinet installation) |
Key Features
-
High power density suitable for medium-voltage industrial drives
-
Fast switching with minimal conduction losses
-
Robust design ensures reliability under heavy operational load
-
Reduced maintenance requirements and extended service life
-
Compact integration compatible with ABB converters and drive platforms
Applications
-
Medium-voltage drives (MV drives)
-
High-power converters for industrial machinery
-
Energy generation and utility systems
-
Heavy-duty automation requiring precise power control
FAQ / Comparison
Q: How does IGCT differ from IGBT in drive applications?
A: IGCTs combine the durability of thyristors with gate-controlled switching, ideal for high-current, medium-voltage drives. IGBTs are typically used in lower voltage, higher-frequency switching applications.
Q: Can this module replace other ABB IGCT models?
A: Compatibility depends on voltage, current, and cooling requirements. The 3BHB002953R0107 is recommended for systems designed for medium-voltage IGCT modules.
