ABB 3BHB003386R0101 3BHL000387P0101 5SHX1445H0002 IGCT Module
$258.00
$520.00
Description
Overview

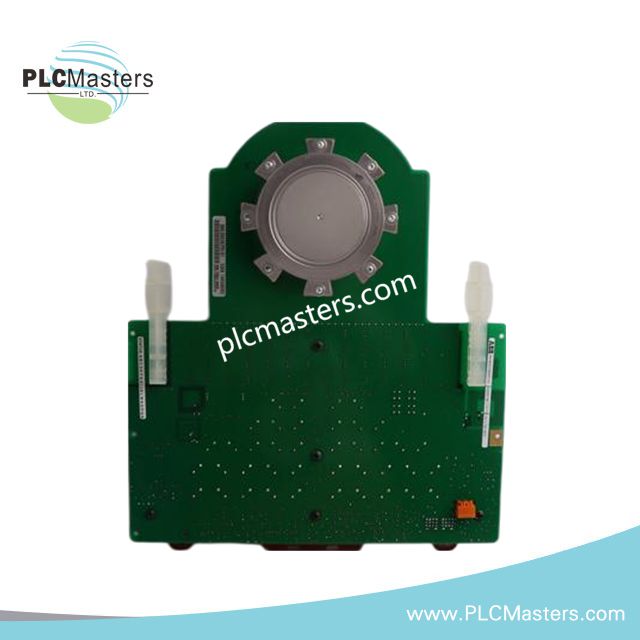

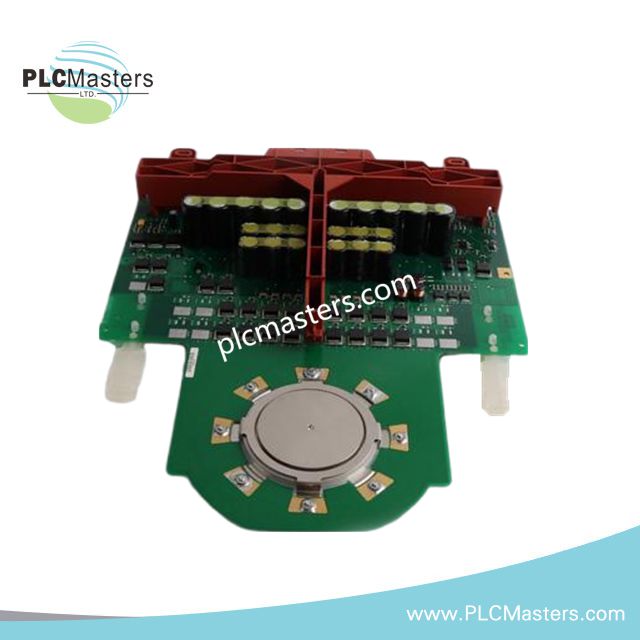

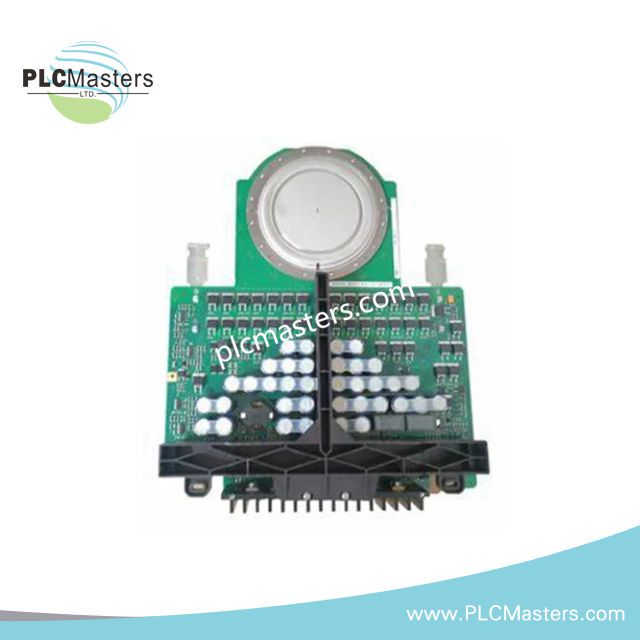

The ABB 3BHB003386R0101 3BHL000387P0101 5SHX1445H0002 IGCT Module is a high-performance press-pack thyristor designed for medium-voltage industrial applications. Combining high current capacity with fast switching, this module is engineered for demanding systems including HVDC transmission, large motor drives, and heavy-duty automation.
Technical Specifications
| Specification | Details |
|---|---|
| Rated Voltage | 4500 V typical |
| Continuous Current | 1200 A on-state |
| Turn-Off Capability | Up to ~4000 A |
| Package Type | Press-Pack for mechanical durability |
| Cooling Requirement | Direct water cooling or advanced thermal management |
| Dimensions | 439 × 173 × 41 mm |
| Weight | 2.9 kg |
| Gate Driver | Optimized for ABB-approved drivers |
Key Features
-
High Power Density: Handles large currents and voltages efficiently.
-
Fast Switching: Delivers IGBT-like speed with thyristor robustness.
-
Press-Pack Design: Ensures uniform thermal distribution and mechanical stability.
-
Matched Gate Driver Compatibility: Guarantees reliable commutation in industrial environments.
-
Versatile Applications: Supports HVDC systems, large motor drives, robotics, and energy distribution.
Applications
Ideal for medium-voltage drives, HVDC projects, semiconductor manufacturing, smart grids, and industrial automation systems requiring high reliability and fast switching.
Installation Notes
-
Requires ABB-approved gate drivers and suitable cooling systems.
-
Module is large and heavy; careful handling is essential during installation.
-
Verify compatibility with existing systems for long-term operation and future upgrades.
FAQ / Comparative Insights
Q: Can this module replace older ABB IGCT models?
A: Yes, but ensure voltage/current ratings match your system. Newer modules may offer enhanced thermal performance.
Q: How does this compare to ABB IGBT modules?
A: IGCT modules provide higher current capacity and robust turn-off characteristics, ideal for very high power applications. IGBTs offer faster switching at lower currents.
Q: What cooling solutions are recommended?
A: Direct water cooling or advanced heat sinks are required to maintain optimal junction temperature and ensure reliable operation.
