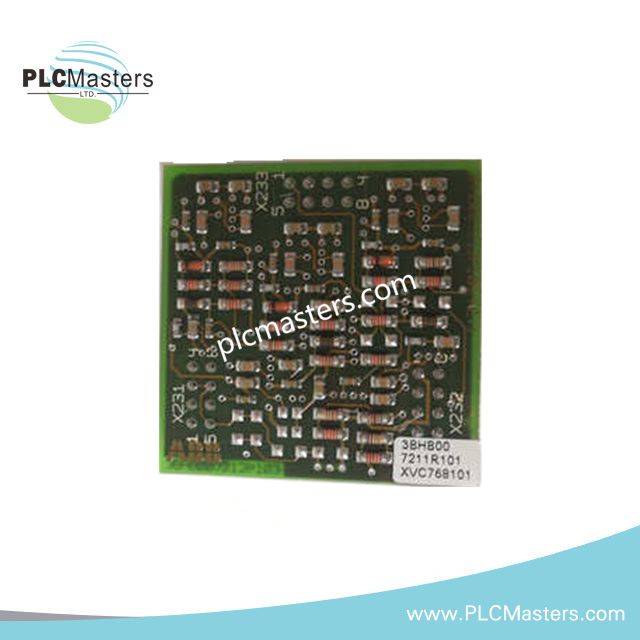

ABB 3BHB007211R101 XVC768101 Digital Input & Excitation Module
$258.00
$520.00
Description
Product Description
The ABB 3BHB007211R101 / XVC768101 is a robust industrial module engineered for precise generator excitation control and high-density digital input applications. Designed for integration with ABB Advant and AC 800M platforms featuring S800 I/O systems, this module provides reliable operation in demanding settings including power plants, marine installations, and critical backup power infrastructure.
Technical Specifications
| Attribute | Specification |
|---|---|
| Manufacturer | ABB |
| Model / Part Number | 3BHB007211R101 / XVC768101 |
| System Compatibility | ABB Advant / AC 800M with S800 I/O modules |
| Module Type | High-Density Digital Input / Generator Excitation Control |
| Digital Input Channels | 32 or 64 channels (configurable) |
| Input Voltage | 24V |
| Input Configuration | Sinking (NPN) or Sourcing (PNP), grouped by 8 or 16 channels |
| ON Threshold | >15V DC |
| OFF Threshold | <5V DC |
| Weight | 0.3 kg |
Key Features
-
Flexible design suitable for multiple industrial scenarios.
-
High channel density enables efficient monitoring of numerous digital inputs.
-
Stable excitation control ensures consistent generator performance.
-
Rugged construction for long-term reliability in harsh environments.
Applications
-
Generator excitation systems in power plants and industrial generators.
-
Marine power and propulsion control systems.
-
Backup power and critical energy infrastructure.
-
Integration with ABB AC 800M and Advant OCS automation networks.
FAQ
Q: Can the module handle both sinking and sourcing inputs?
A: Yes, the module supports both NPN (sinking) and PNP (sourcing) configurations, configurable in groups of 8 or 16 channels.
Q: What system platforms is this module compatible with?
A: It is compatible with ABB Advant and AC 800M systems using the S800 I/O architecture.
Q: How many digital input channels are available?
A: Depending on configuration, either 32 or 64 channels of 24V DC inputs are supported.
Q: Is this module suitable for marine applications?
A: Yes, it is designed to operate reliably in marine power systems and other harsh environments.
