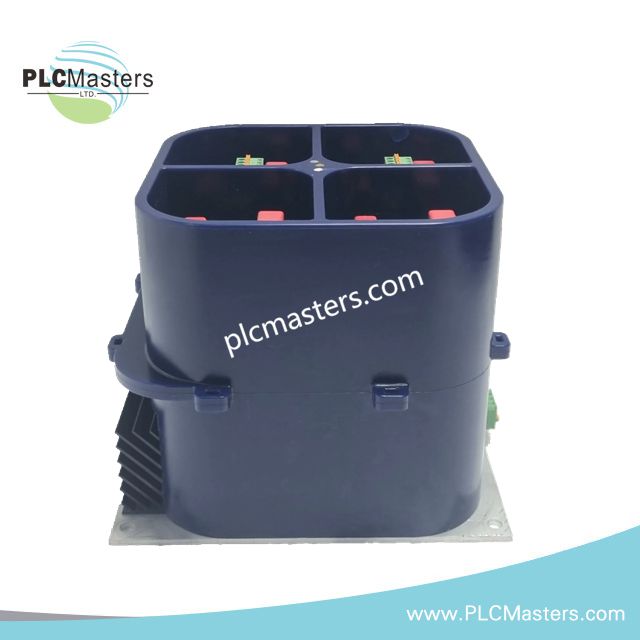

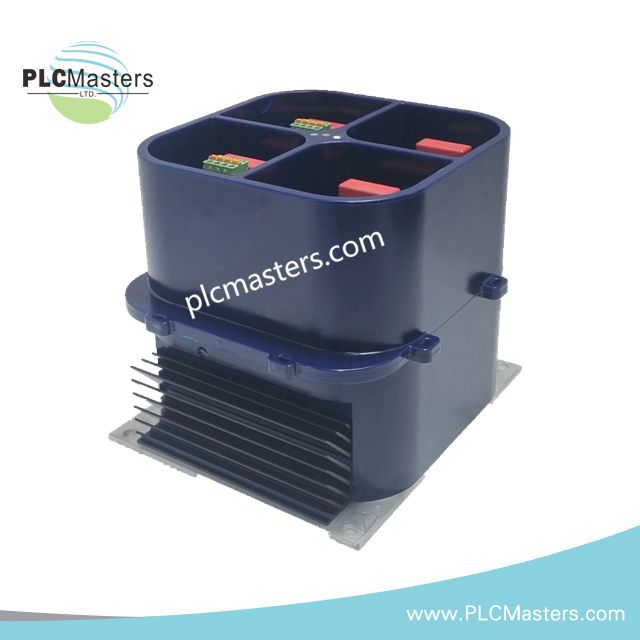

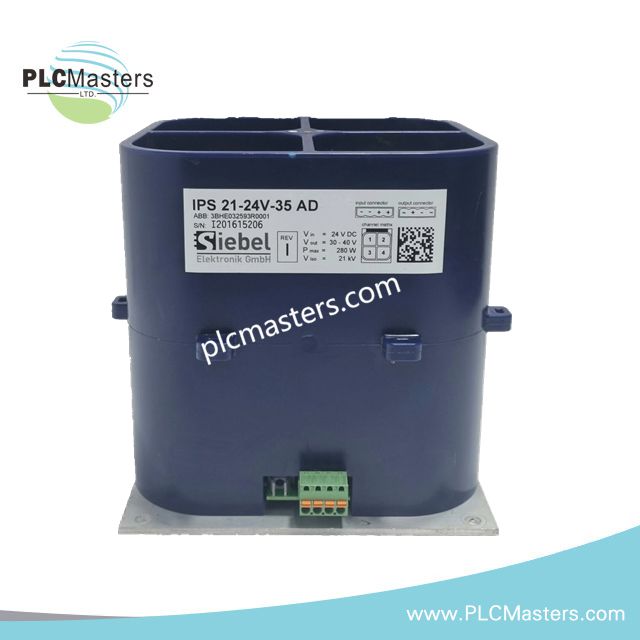

ABB 3BHE032593R0001 IPS21-24V Isolated Power Supply Module
$258.00
$520.00
Description
Product Description
The ABB 3BHE032593R0001 is a precision-engineered isolated DC power supply module designed for ABB drive and automation systems. It provides a stable 24 VDC output with galvanic isolation, offering reliable performance in demanding industrial environments where safety and efficiency are essential.
Technical Specifications
| Attribute | Details |
|---|---|
| Manufacturer | ABB |
| Model Number | 3BHE032593R0001 |
| Type | Isolated Power Supply Module |
| Designation | IPS21-24V |
| Input Voltage | 9–36 VDC |
| Output Voltage | 24 VDC |
| Output Current | Up to 35 A continuous |
| Output Power | 1200 W |
| Isolation Voltage | 4 kV Galvanic Isolation |
| Input Frequency | 47–63 Hz (for AC variants) |
| Efficiency | ~94% |
| Protection Class | IP20 |
| Operating Temperature | −20 °C to +50 °C |
| Weight | 6.1 kg |
Key Features
-
High efficiency (~94%) reduces energy loss and heat generation
-
Galvanic isolation of 4 kV ensures safe and reliable operation
-
Wide input voltage range with support for redundant input
-
Compact and robust design suitable for industrial panels
-
Stable 24 VDC output for powering drives, controllers, and automation devices
Applications
-
ABB drive systems and automation platforms
-
Process control and manufacturing automation
-
Energy distribution and monitoring systems
-
Industrial environments requiring stable isolated DC power
FAQ / Application Notes
Q: Can this module operate with AC input?
A: Yes, AC input variants support 47–63 Hz with full isolation.
Q: How does it compare to ABB 3BHE032592R0001?
A: Both belong to the IPS21 series. The 3BHE032593R0001 provides higher current output (35 A vs 25 A) for more demanding loads.
Q: Is this unit suitable for outdoor use?
A: It has an IP20 rating. Enclosure protection is required for outdoor installation.
