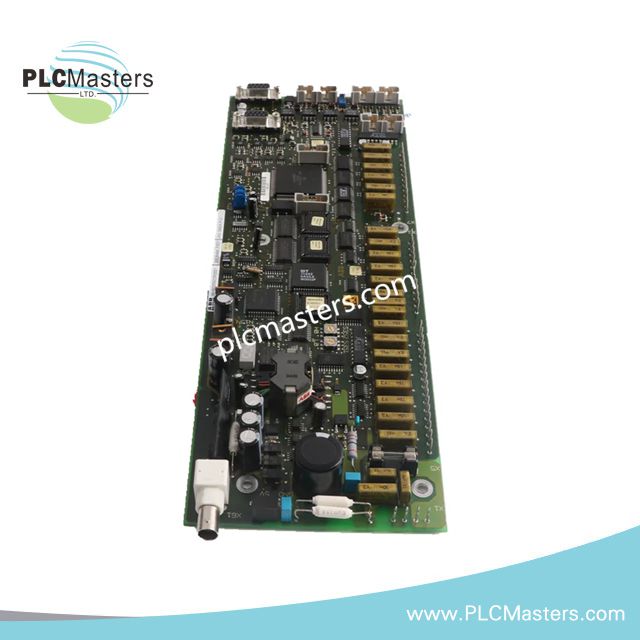

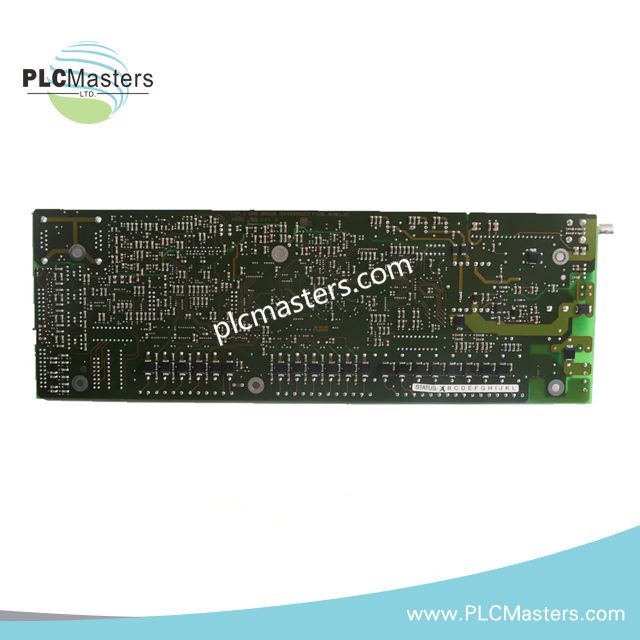

ABB 3BHL000986P0006 Medium-Voltage Power Cell Module
$258.00
$520.00
Description
Overview
The ABB 3BHL000986P0006 is a high-performance industrial control and power conversion module designed for ABB medium-voltage drives, including ACS6000, ACS800, and ACS880 series. Engineered for heavy-duty industrial environments, it delivers precise AC-to-DC conversion and variable-frequency motor control, ensuring reliable operation in power plants, mining, petrochemical, and large-scale manufacturing facilities.
Key Technical Specifications
-
Control Supply Input Voltage: 24 V DC ±20%
-
Power Conversion Rated Voltage: 380 V AC
-
Rated Current: 14.2 A
-
Rated Power Output: 5.5 kW
-
Operating Temperature: −15°C to +40°C
-
Storage Temperature: −40°C to +85°C
-
Humidity Range: 0–95% RH, non-condensing
-
Communication Interfaces: Ethernet, Profibus, Modbus
-
Protection Rating: IP55
-
Dimensions: 297 × 36 × 175 mm
-
Weight: 1.1 kg
Features & Functional Highlights
-
Continuous, high-reliability operation for industrial environments
-
Converts AC input to DC for inverter stages in ABB drives
-
Supports precise variable-frequency motor control for large motors
-
Advanced component design with metallized polypropylene film for self-healing durability
-
Galvanically isolated for fault tolerance and high-voltage endurance
-
Compatible with multiple industrial communication protocols for flexible integration
Applications
-
Medium-voltage drives: ACS6000, ACS800, ACS880
-
Large motor control in heavy industry
-
HVDC systems and power generation facilities
-
Semiconductor fabs, petrochemical plants, and industrial automation lines
FAQ
Q: Can this module be used in outdoor installations?
A: Yes, the IP55 rating protects against dust and low-pressure water jets. Ensure environmental conditions remain within specified temperature ranges.
Q: Is the module compatible with ACS880 drives?
A: Yes, it supports ACS6000, ACS800, and ACS880 series medium-voltage drives.
Q: What communication protocols are supported?
A: Ethernet, Profibus, and Modbus interfaces enable seamless integration into industrial control networks.
