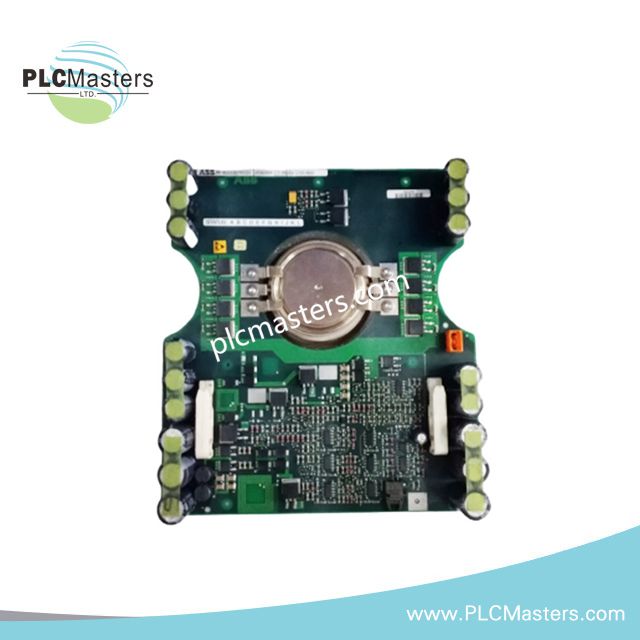

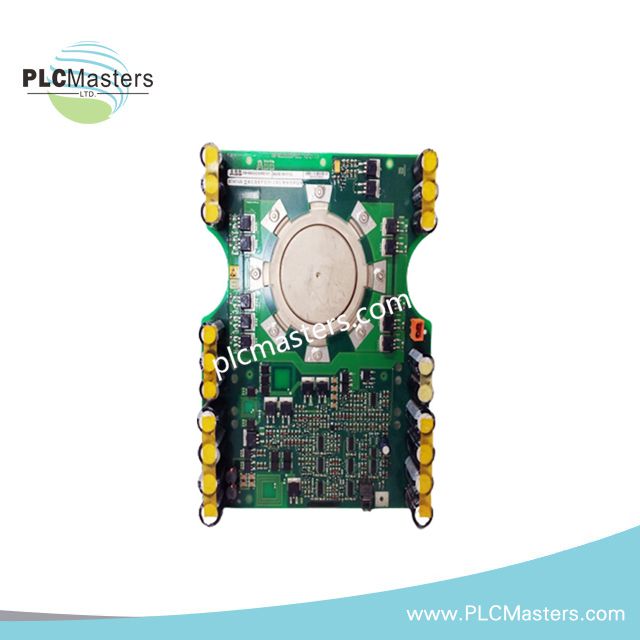

ABB 5SHX0660F0001 3BHL000386P0101 IGCT Module
$258.00
$520.00
Description
Overview
The ABB 5SHX0660F0001 3BHL000386P0101 is a high-power IGCT module designed for demanding industrial applications. It supports medium-voltage drives, power converters, and traction systems. The module ensures efficient switching while maintaining high reliability under continuous operation. IGCT technology combines thyristor ruggedness with fast switching, reducing conduction losses. This makes it ideal for industrial systems requiring both high performance and durability. The PCB-mounted design simplifies integration into existing control systems.
Technical Specifications
-
Model: 5SHX0660F0001 3BHL000386P0101
-
Manufacturer: ABB
-
Type: IGCT Module
-
Mounting: PCB-mounted
-
Voltage Rating: 3300 V DC
-
Current Rating: 660 A continuous
-
Switching Frequency: Up to 500 Hz
-
Thermal Resistance: 0.03 K/W junction-to-case
-
Operating Temperature: -40°C to +125°C
-
Isolation Voltage: ≥10 kV
-
Cooling Method: Liquid or forced air
-
Weight: 2.9 kg
