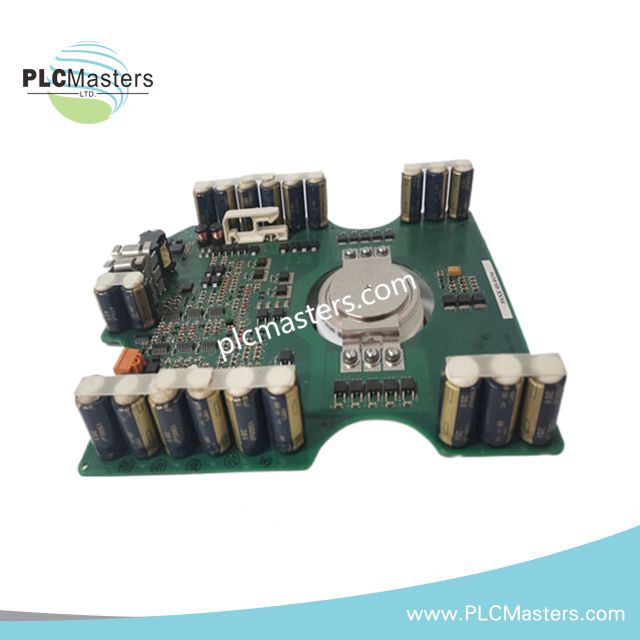

ABB 5SHX0660F0002 3BHB018104R0001 IGCT Module
$258.00
$520.00
Description
Overview
The ABB 5SHX0660F0002 3BHB018104R0001 is a high-power IGCT module for industrial drives. It supports medium-voltage applications with fast, reliable switching performance. This module integrates a reverse-conducting thyristor and diode in one compact unit. Its PCB-mounted design ensures efficient thermal management and robust mechanical integrity. The RC-IGCT technology delivers low conduction losses and high operational reliability. It is ideal for traction converters, medium-voltage drives, and industrial power electronics. The press-pack design provides superior thermal cycling performance for demanding environments.
Technical Specifications
-
Model: 5SHX0660F0002 3BHB018104R0001
-
Manufacturer: ABB
-
Type: RC-IGCT (Reverse Conducting IGCT)
-
Mounting: PCB-mounted
-
Voltage Rating: 3300 V DC
-
Current Rating: 660 A continuous
-
Switching Frequency: Up to 500 Hz
-
Thermal Resistance: Approx. 0.03 K/W junction-to-case
-
Operating Temperature: -40°C to +125°C
-
Isolation Voltage: ≥10 kV
-
Cooling Method: Liquid or forced air
-
Weight: 2.9 kg
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
