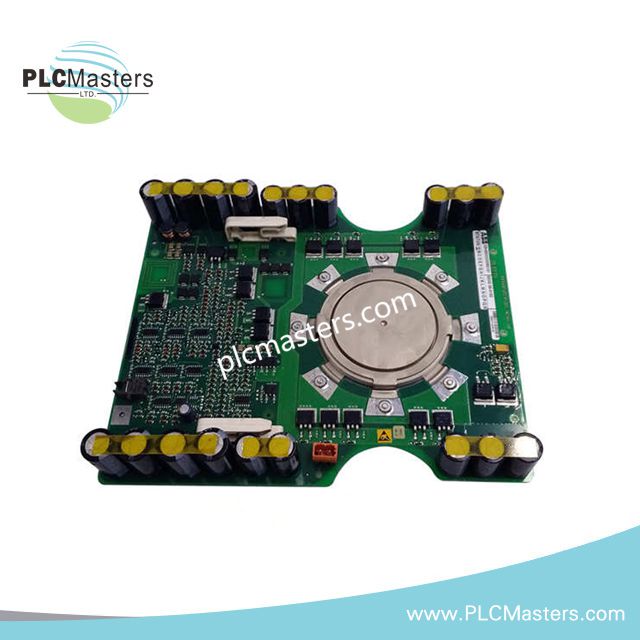

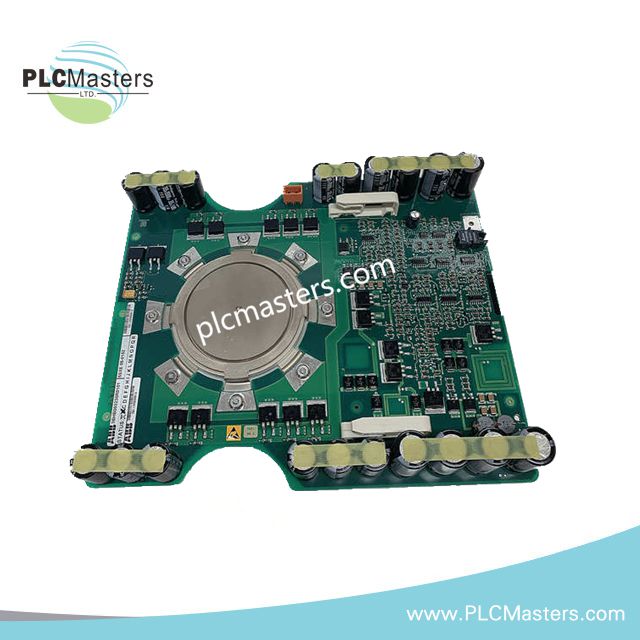

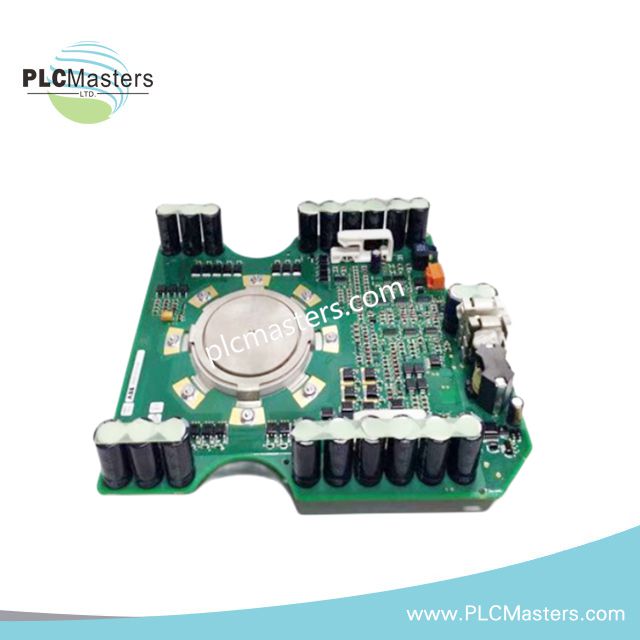

ABB 5SHX08F4502 Asymmetric IGCT Module
$258.00
$520.00
Description
Overview
The ABB 5SHX08F4502 is a high-power asymmetric IGCT module. It delivers fast switching and low electrical losses for industrial systems. This module suits medium-voltage drives, power converters, and traction systems. It integrates a gate-commutated thyristor with a reverse-conducting diode. Direct fiber optic control ensures precise timing and safe operation. ABB’s free-floating silicon technology improves thermal and electrical efficiency. The module provides snubberless turn-off capability for robust performance.
Technical Specifications
-
Model Number: 5SHX08F4502
-
Type: Asymmetric IGCT Module
-
Voltage Rating (VDRM): 4500 V
-
Control Interface: Fiber optic
-
Turn-On Delay (tdon): < 3 µs
-
Turn-Off Delay (tdoff): < 6 µs
-
Precise Timing (tdoff jitter): < 800 ns
-
Technology: Free-floating silicon
-
EMI Immunity: Very high
-
Cosmic Radiation Tolerance: Rated for sea-level operation
-
Mounting Force: Specified per datasheet
-
Weight: 2.9 kg
