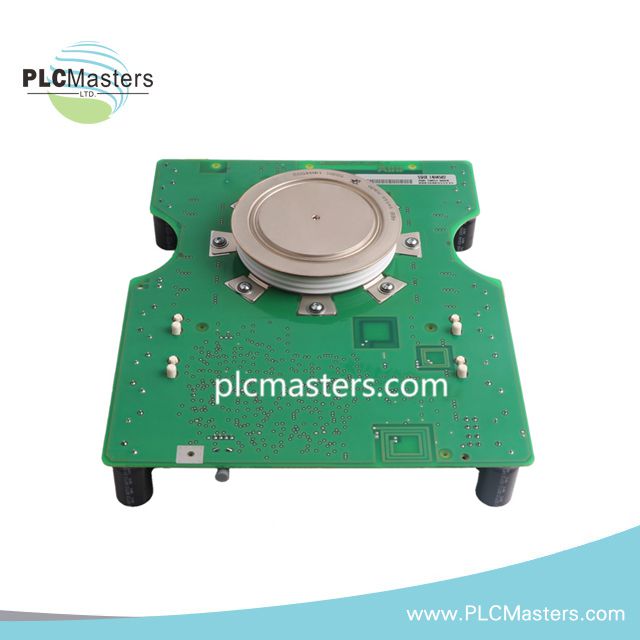

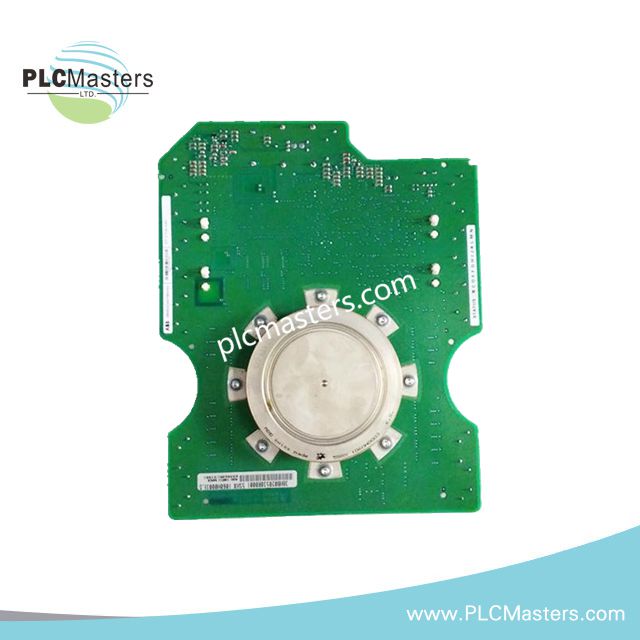

ABB 5SHX1060H0002 3BHL000388P0101 IGCT Module
$258.00
$520.00
Description
Overview
The ABB 5SHX1060H0002 3BHL000388P0101 is a high-voltage, high-current IGCT module for industrial power control. It delivers ultra-fast switching and high reliability for demanding applications. This module excels in Static Synchronous Compensators (STATCOM), FACTS, and medium-voltage converters. Paired with the 5SHX1060H0002 3BHL000388P0101 gate unit, it provides precise reactive power and voltage control. Snubberless turn-off design simplifies circuits and reduces overall system complexity. ABB’s cooling system ensures optimal thermal performance under continuous high-load operation.
Technical Specifications
-
IGCT Module: 5SHX1060H0002
-
Gate Unit: 3BHL000388P0101
-
Rated Voltage: 6000 V
-
Rated Current: 600 A
-
Switching Type: Snubberless turn-off IGCT
-
Application: STATCOM, FACTS, medium-voltage converters
-
Control Interface: Fiber optic
-
Cooling System: ABB liquid cooling (optional)
-
Product Type: IGCT Module
-
Voltage Rating: 6 kV coated for medium-voltage operation
-
Technical Information: 68 mm / 6 kV coated, indicating module size and insulation
-
Drive Compatibility: ACS1000 Medium Voltage AC Drives
-
Weight: 2.9 kg
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
