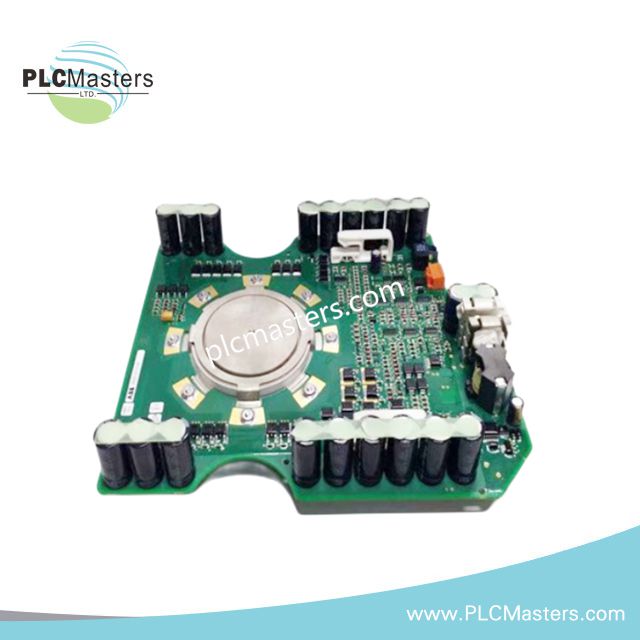

ABB 5SHX10H6004 IGCT Module
$136.00
$520.00
Description
Overview
The ABB 5SHX10H6004 is a high-performance IGCT module for industrial automation and power systems. It delivers precise control over complex analog and digital signals. This module enables fast switching while minimizing losses through advanced free-floating silicon technology. It supports direct fiber optic control for isolated, rapid signal transmission. Engineers rely on it for high electromagnetic immunity and stable operation in demanding environments. The 5SHX10H6004 ensures consistent performance in critical industrial and power distribution applications.
Technical Specifications
-
Product Type: IGCT Module
-
Part Number: 5SHX10H6004
-
Repetitive Peak Off-State Voltage: 3300 V
-
Turn-On Delay (tdon): < 3 µs
-
Turn-Off Delay (tdoff): < 6 µs
-
Precise Timing (tdoff): < 800 ns
-
Signal Input Types: Analog (–10V to +10V, 4–20mA), Digital (TTL/CMOS)
-
Signal Processing Precision: ≥16-bit ADC for analog, nanosecond-level for digital
-
Processing Speed: Millions of operations per second
-
EMI Immunity: Very High
-
Cosmic Radiation Tolerance: Rated for sea-level exposure
-
Mounting Force: 40 kN
-
Weight: 2.9 kg
