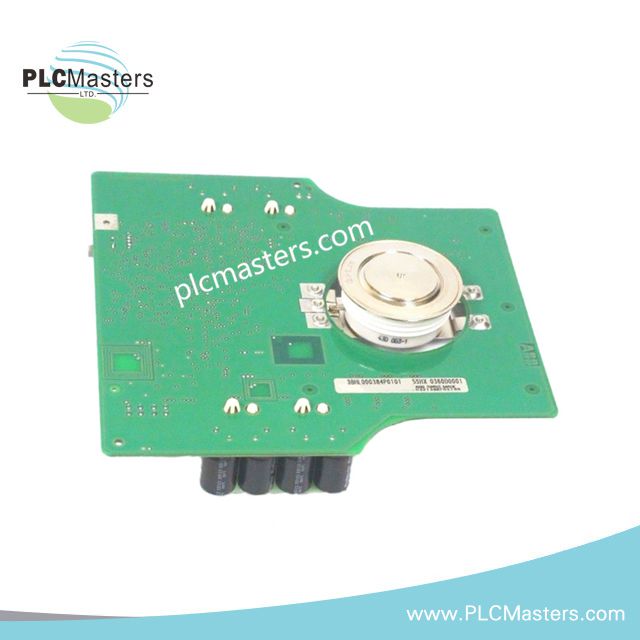

ABB 5SHX19L6010 Reverse Conducting IGCT Module
    ABB 5SHX19L6010 Reverse Conducting IGCT Module
    ABB 5SHX19L6010 Reverse Conducting IGCT Module
    ABB 5SHX19L6010 Reverse Conducting IGCT Module

    ABB 5SHX19L6010 Reverse Conducting IGCT Module

    • 1000 In stock

    • Manufacturer: ABB

    • Product No.: 5SHX19L6010

    • Condition： In stock

    • Product Type: Reverse Conducting IGCT Module

    • Product Origin: Sweden

    • Payment:T/T, Western Union

    • Weight: 2900g

    • Shipping port: Xiamen

    • Warranty: 12 months

    {"id":42412969263194,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"5SHX19L6010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ABB 5SHX19L6010 Reverse Conducting IGCT Module","public_title":null,"options":["Default Title"],"price":13600,"weight":2900,"compare_at_price":52000,"inventory_management":"shopify","barcode":"Sweden","requires_selling_plan":false,"selling_plan_allocations":[]}

    Description

    Overview

    The ABB 5SHX19L6010 is a high-power Reverse Conducting IGCT module. It integrates a gate-commutated thyristor with a reverse-conducting diode. This design enables bidirectional current handling and snubberless turn-off. Engineers use it in medium-voltage drives, traction converters, and power transmission systems. The module supports high-frequency switching while maintaining optimized thermal performance. It delivers reliable operation in demanding industrial environments.

    Technical Specifications

    • Product Type: Reverse Conducting IGCT Module

    • Part Number: 5SHX19L6010

    • Voltage Rating (VDRM): 4500 V

    • Current Rating (ITGQM): 1800 A

    • Turn-Off Capability: Snubberless

    • Integrated Diode: Yes (Reverse Conducting)

    • Switching Frequency: Medium to High

    • Mounting Force: 40 kN

    • dv/dt Tolerance: High

    • di/dt Tolerance: High

    • Weight: 2.9 kg

    Features

    We welcome bulk orders and have a minimum order quantity of just one unit.

    Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

    For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

    We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

    We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

    Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
