ABB 5SHY65L4521 IGCT Module | High-Power Asymmetric Thyristor
$258.00
$520.00
Description
Overview

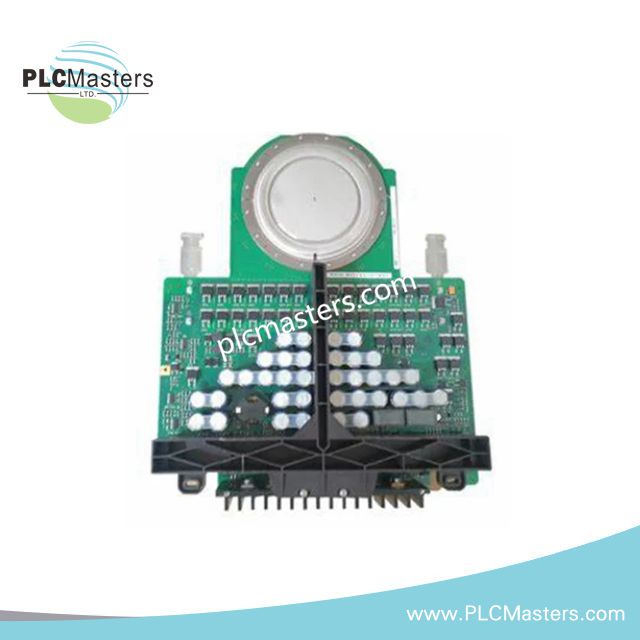

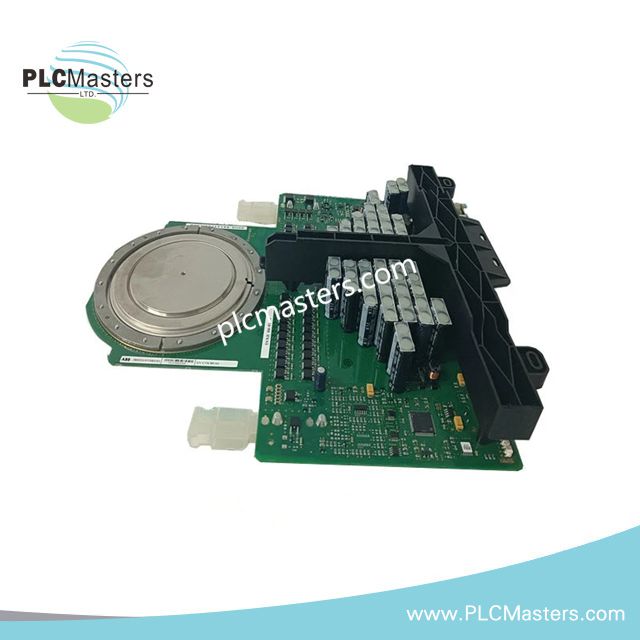

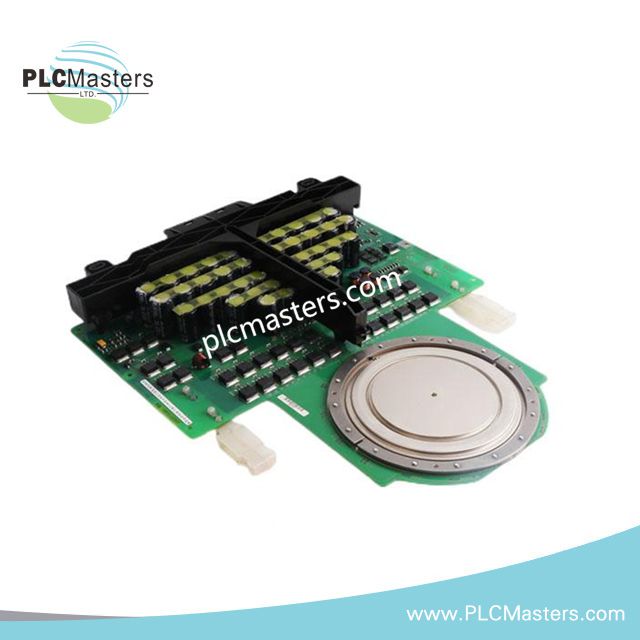

The ABB 5SHY65L4521 is a high-performance asymmetric Integrated Gate-Commutated Thyristor (IGCT) engineered for demanding medium-voltage applications. Combining the ruggedness of conventional thyristors with the fast switching capabilities of modern IGBTs, this module delivers efficient, reliable power conversion for industrial and utility-scale systems. Its robust design ensures stable operation in harsh electrical and environmental conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Repetitive Peak Off-State Voltage (VDRM) | 4500 V |
| Maximum DC Voltage (VDC) | 2800 V (for 100 FIT cosmic ray failure rate at sea level) |
| Repetitive Peak Reverse Voltage (VRRM) | 17 V |
| Nominal Gate Commutated Current (ITGQM) | 6500 A |
| Surge Current Capability (ITSM) | 40.4 kA |
| On-State Voltage (VT0) | 1.12 V |
| Dynamic Resistance (rT) | 0.294 mΩ |
| Snubberless Turn-Off | Supported |
| Electromagnetic Immunity | High |
| Control Interface | Simple gate control with status feedback |
| Dimensions (Package) | 439 × 173 × 41 mm |
| Weight | 2.9 kg |
Key Advantages
-
High voltage and current handling for heavy-duty industrial applications
-
Low on-state losses for improved energy efficiency
-
Snubberless design reduces external component requirements
-
High electromagnetic immunity ensures reliable performance in challenging environments
-
Flexible integration for AC or DC configurations; series connection options available
Applications
-
Medium-voltage drives in heavy industries
-
Utility-scale power converters and renewable energy grid integration
-
High-power inverters for large manufacturing plants
-
Industrial energy systems in steel, cement, petrochemical, and related sectors
FAQ
Q: Can this module be used outside ABB systems?
A: Integration with non-ABB platforms requires careful engineering due to high current and voltage ratings.
Q: Is series connection possible?
A: Yes, but it requires factory consultation to ensure safe and optimal operation.
Q: What cooling requirements are recommended?
A: Proper thermal management is critical. Ensure adequate heat sinks or forced cooling in high-current installations.
