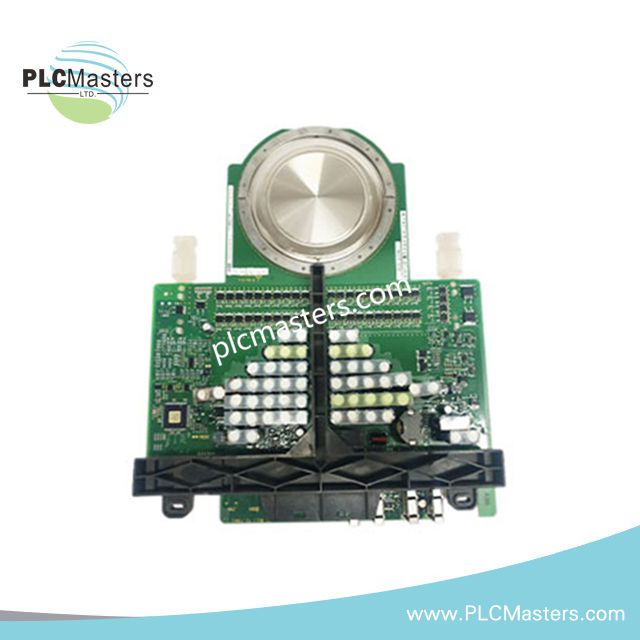

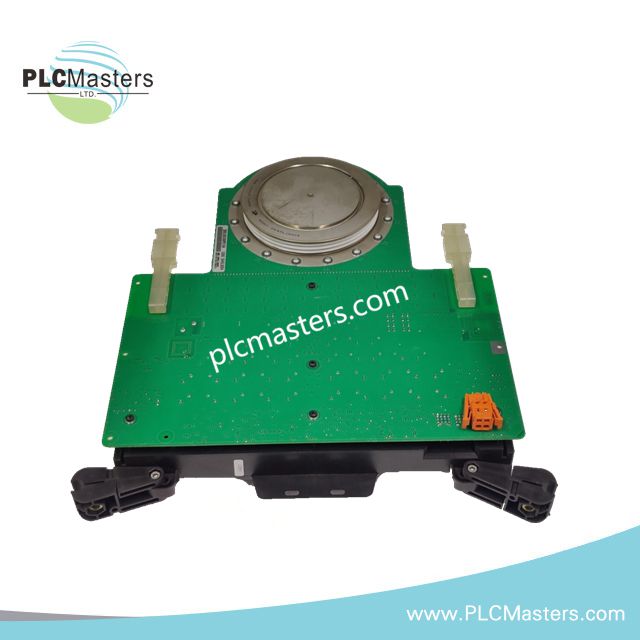

ABB 5SHYSCM240001-5SHY3545L Asymmetric IGCT Module
$258.00
$520.00
Description
Overview
The ABB 5SHYSCM240001-5SHY3545L is a high-power asymmetric IGCT module. It is designed for medium-voltage industrial applications requiring robust performance. This module handles 4500 V and 4000 A with high efficiency and reliability. The IGCT technology combines thyristor ruggedness with fast IGBT switching. It minimizes conduction losses and supports excellent thermal cycling. Its snubberless design simplifies system integration and improves operational reliability. The module features a compact press-pack design with high electromagnetic immunity. It offers a simple control interface and can operate in harsh industrial environments. Applications include medium-voltage drives, traction converters, and power grid systems.
Technical Specifications
-
Model: 5SHYSCM240001-5SHY3545L
-
Manufacturer: ABB
-
Type: Asymmetric IGCT Module
-
Voltage Rating (VDRM): 4500 V
-
Current Rating (ITGQM): 4000 A
-
Mounting Force: 40 kN
-
Turn-off Capability: Snubberless high-power switching
-
Electromagnetic Immunity: High
-
Control Interface: Simple with status feedback
-
Supply Voltage: AC or DC
-
Cooling Method: Liquid or forced air
-
Weight: 2.9 kg
