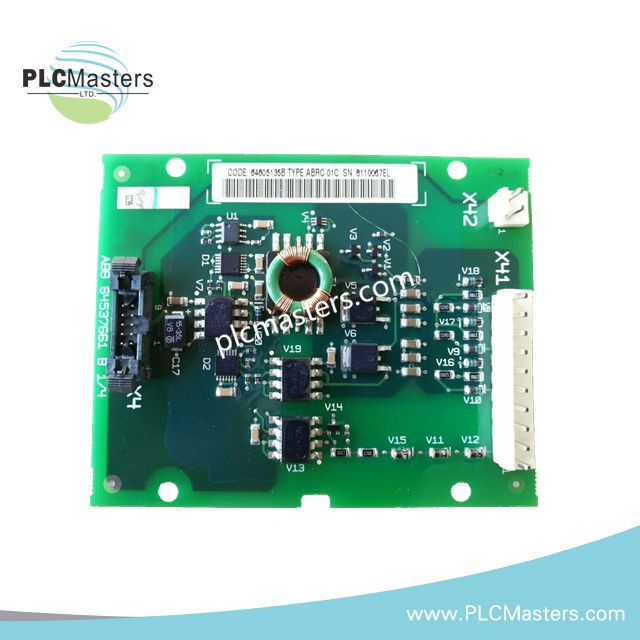

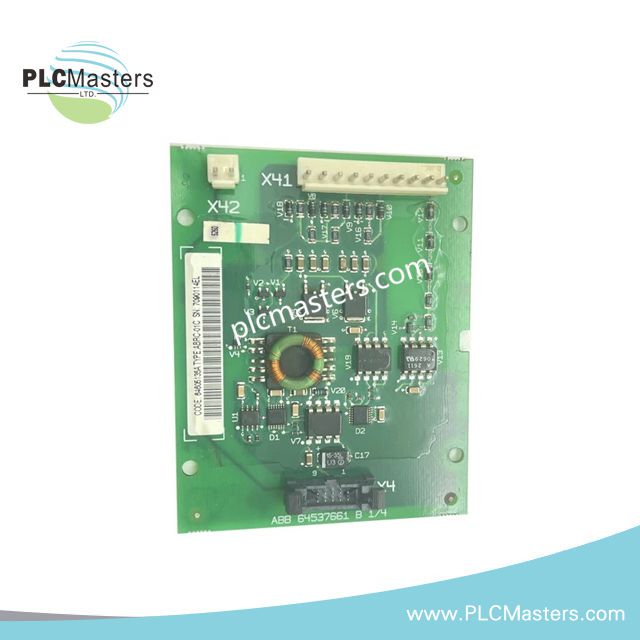

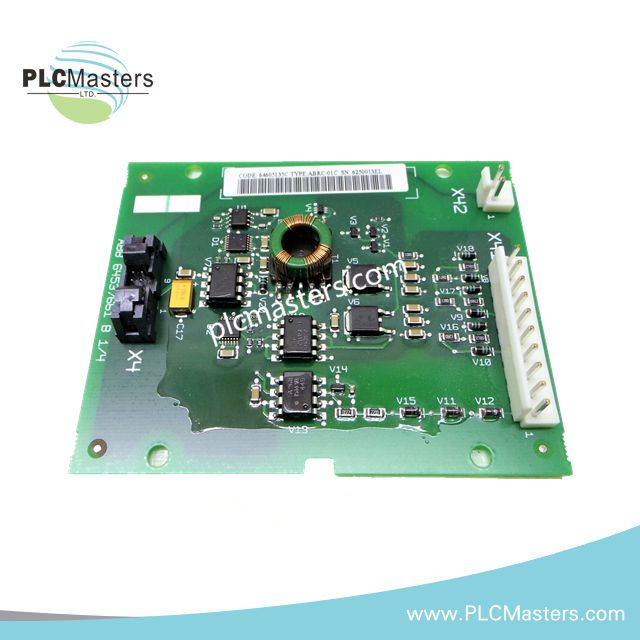

ABB ABRC-01C 64605135 Chopper Control Board
$198.00
$430.00
Description
Overview
The ABB ABRC-01C is a high-performance chopper control board. It manages braking chopper operations for ACS800 drives. The board enables rapid motor deceleration by dissipating excess energy through a braking resistor. It enhances safety and performance in applications requiring fast stops. Typical uses include cranes, conveyors, robotics, and machine tools. Integrated diagnostics monitor performance and warn against potential faults. The board supports long-term operation with a design life of up to 10 years.
Technical Specifications
-
Model: ABRC-01C
-
Part Number: 64605135
-
Function: Braking chopper control for ACS800 drives
-
Control Method: PWM (Pulse Width Modulation)
-
Voltage Range: Compatible with ACS800 drive voltage ratings
-
Applications: Cranes, conveyors, robotics, machine tools, industrial automation
-
Features: Fast motor stop, energy dissipation, enhanced safety
-
Communication: RS-485 terminal with Modbus-RTU (Binary) support
-
Additional Functions: Reverse start, regenerative braking avoidance, PTC thermistor input
-
Power Range Supported: 0.75 kW to 630 kW (typically 3-phase 380V systems)
-
Design Life: Up to 10 years with built-in diagnostics and warning functions
-
Noise Filtering: Integrated surge absorption and noise filter circuits
-
Product Type: Chopper control board
-
Weight: 0.1 kg
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
