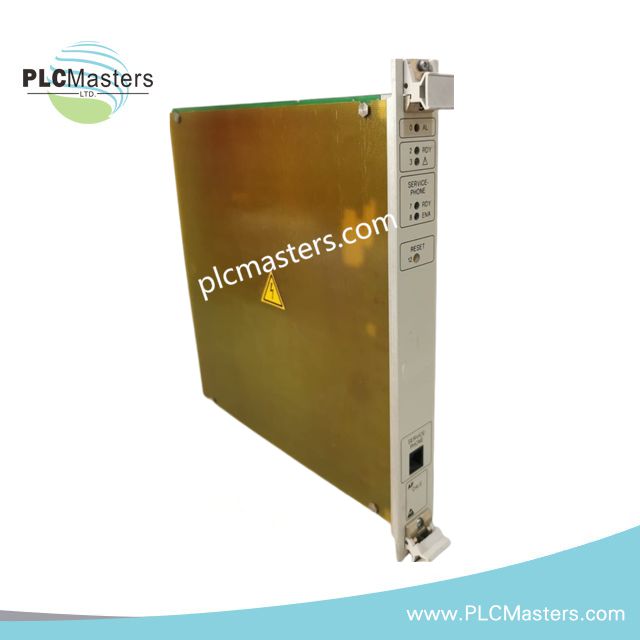

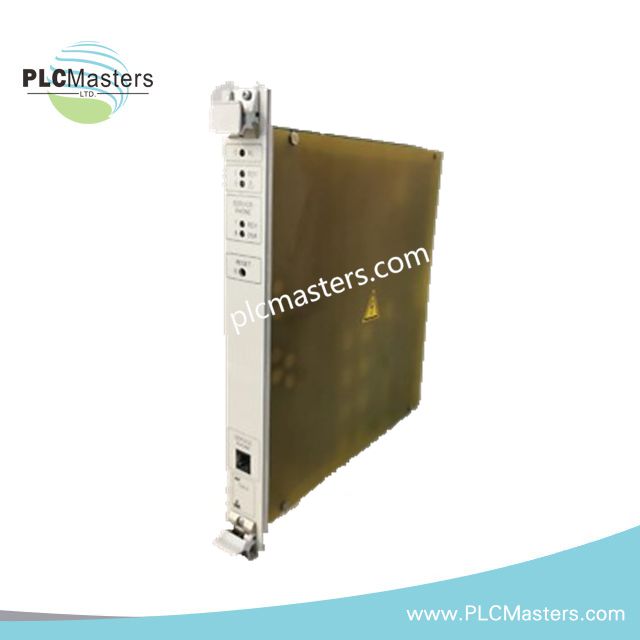

ABB AF04LE 1KHL015545R0001 Compact PLC Controller Module

Overview

The AF04LE 1KHL015545R0001 from ABB is a compact PLC controller engineered for distributed automation architectures where cabinet space, processing speed, and multi-signal handling are critical. The module combines controller logic and local I/O handling in a single hardware unit, making it suitable for both standalone control tasks and system-level expansion within ABB PLC and DCS environments.

Designed for continuous industrial operation, the AF04LE supports fast cyclic execution, deterministic communication, and stable performance under wide temperature ranges. Its modular concept allows seamless coupling with I/O cradles and fieldbus networks.

Controller Hardware Architecture

The controller is built around an industrial-grade 32-bit PowerPC processor optimized for real-time execution. Memory resources are sized to support complex control logic, diagnostics, and communication stacks without performance degradation.

Core hardware characteristics include:

• 32-bit PowerPC CPU for deterministic control tasks

• 256 MB system RAM for runtime execution and buffering

• 2 GB onboard flash memory for firmware, application programs, and configuration data

• Fanless design for maintenance-free operation

• Nominal module weight approximately 0.5 kg

Integrated I/O Capability

When used with the O4LE I/O cradle, the controller provides a balanced mix of digital and analog channels suitable for machine-level and process-level control.

Typical I/O resources include:

• 16 digital input channels

• 16 digital output channels

• 4 analog input channels

• 2 analog output channels

Spring-type terminal connections on the I/O cradle ensure vibration-resistant wiring and fast installation in control panels.

Communication & Networking

The AF04LE controller supports multiple industrial communication standards, enabling integration into heterogeneous automation networks.

Available interfaces and protocols include:

• Ethernet for programming, diagnostics, and supervisory communication

• Modbus TCP and Modbus RTU for third-party device integration

• Profibus support via configuration-dependent interfaces

• Fieldbus expandability depending on system architecture

This flexibility allows the controller to operate as a local control node or as part of a larger distributed system.

Electrical & Environmental Specifications

• Supply voltage: 24 V DC

• Operating temperature range: –20 °C to +60 °C

• Designed for installation in industrial control cabinets

Functional Characteristics

The AF04LE emphasizes operational stability and long service life in demanding environments. Key functional characteristics include fast scan times, built-in diagnostics for fault localization, and predictable response behavior required for closed-loop and interlock-driven control strategies.

Application Areas

This controller module is commonly deployed in:

• Machine automation and equipment control

• Process monitoring and signal acquisition systems

• Distributed PLC and DCS control cabinets

• OEM automation platforms requiring compact controllers

• Auxiliary control tasks within larger ABB automation systems

FAQ

Is the AF04LE suitable for standalone machine control?
Yes. With its integrated processing power and local I/O capability, the module can operate independently for small to mid-scale control tasks.

Can the controller communicate with non-ABB devices?
Yes. Support for Modbus TCP/RTU and standard Ethernet enables communication with third-party instruments, drives, and HMIs.

Is the I/O expandable?
Expansion is supported through compatible I/O cradles and fieldbus configurations, depending on the system layout.
