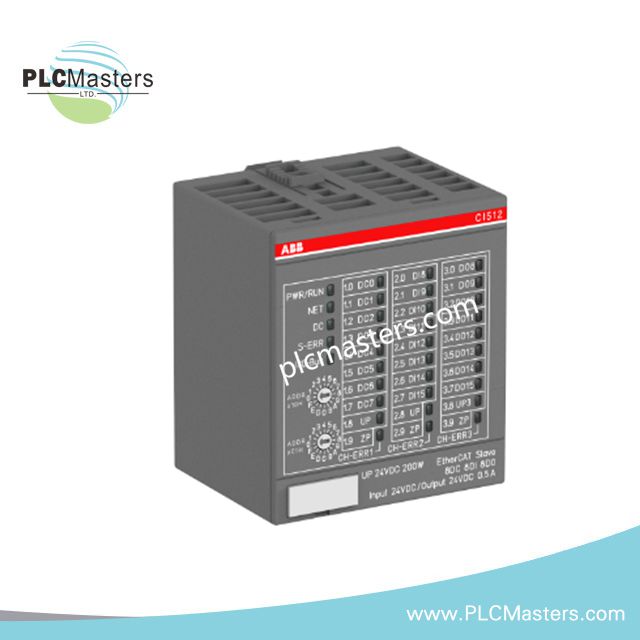

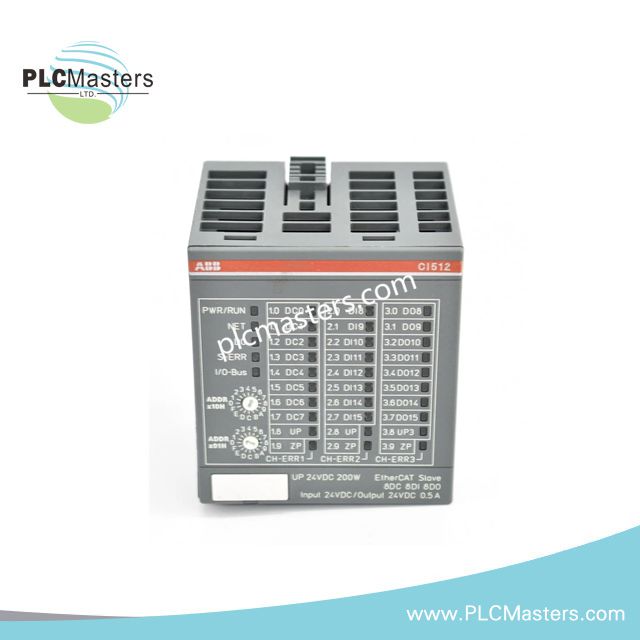

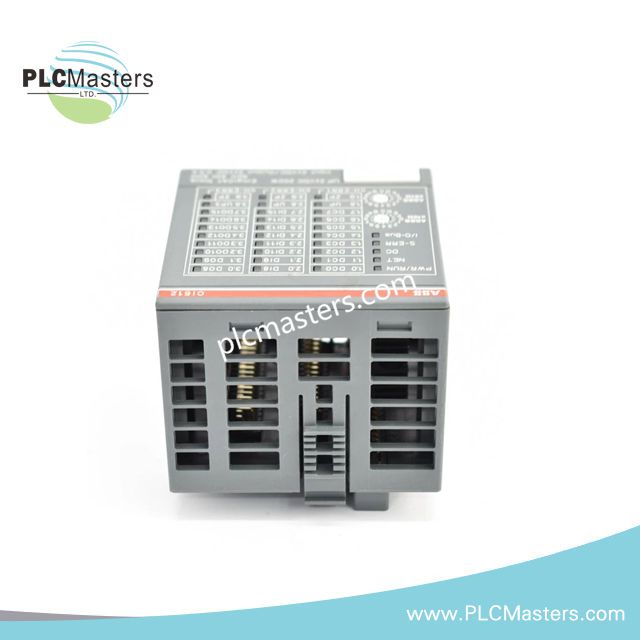

ABB CI512-ETHCAT EtherCAT Slave Interface Module
$258.00
$520.00
Description
Product Description
The ABB CI512-ETHCAT (1SAP221000R0001) is a high-performance EtherCAT slave interface module designed for the ABB AC500 PLC series. It integrates fast EtherCAT communication with flexible digital I/O, making it ideal for motion control, robotics, and high-speed automation applications.
Key Features:
-
EtherCAT slave interface for distributed automation systems
-
8 fixed digital inputs (DI), 8 fixed digital outputs (DO), and 8 configurable DI/DO channels
-
Cam switch functionality supporting up to 32 cams, programmable via AC500 PLC
-
2 ms cycle time for precise motion synchronization
-
Expandable with up to 10 additional I/O modules
Technical Specifications:
| Specification | Details |
|---|---|
| Digital Inputs (DI) | 8 channels, 24 VDC, 5 mA |
| Digital Outputs (DO) | 8 channels, 24 VDC, 0.5 A, transistor output |
| Configurable DI/DO | 8 channels, 24 VDC, 0.5 A |
| Input Voltage | 24 V DC (20.4–28.8 V DC) |
| Output Voltage | 20.4–28.8 V DC |
| Cam Switch Functionality | Up to 32 cams, configurable via PLC program |
| Cycle Time | 2 ms clamp-to-clamp (two bus cycles) |
| Counter Functionality | High-speed counting supported |
| Communication Interface | Industrial Ethernet (EtherCAT) |
| Degree of Protection | IP20 |
| Module Dimensions | 76 mm H × 67.5 mm W × 62 mm D |
| Module Weight | 0.138 kg |
| Expandability | Supports up to 10 additional I/O modules |
| Configuration Tool | ABB Automation Builder with PLCopen motion libraries PS552-MC / PS5611-MC |
Applications:
The CI512-ETHCAT is commonly used in robotics, packaging machines, semiconductor equipment, and motion control systems requiring precise timing and digital I/O control.
FAQ:
-
Q: Can this module handle outputs higher than 0.5 A?
A: No, each output is limited to 0.5 A. External relays are needed for higher loads. -
Q: Is it compatible with all AC500 PLC CPUs?
A: Only PLCs with firmware supporting EtherCAT modules are compatible. -
Q: Can the system be expanded with additional I/O modules?
A: Yes, up to 10 extra modules can be added for larger automation systems.
