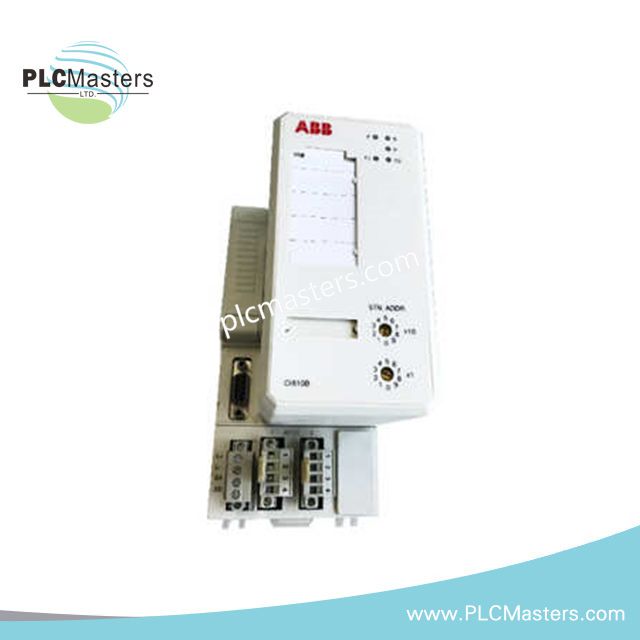

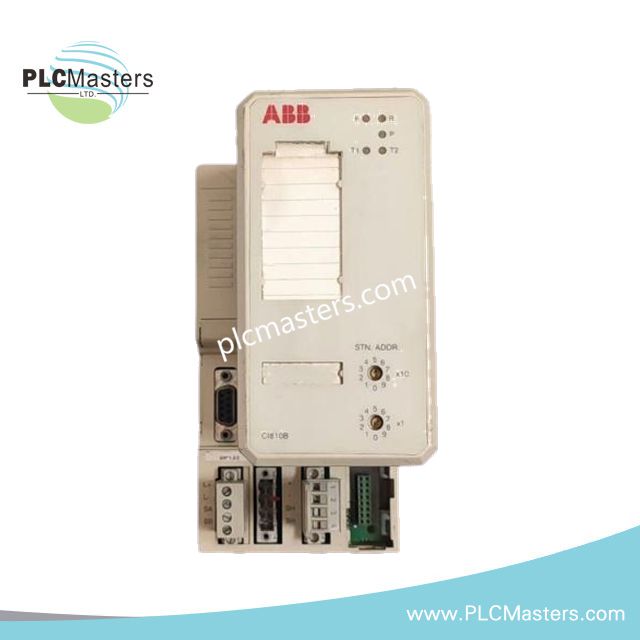

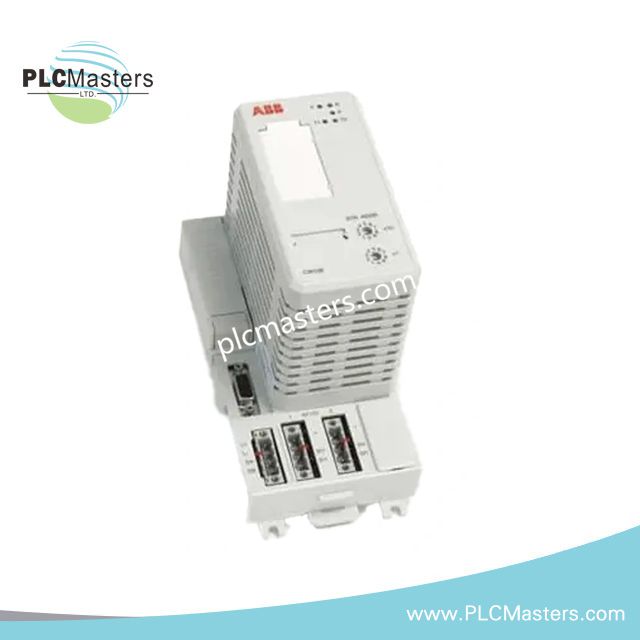

ABB CI810B 3BSE020520R1 Communication Interface Module
$258.00
$520.00
Description
Product Description
The ABB CI810B 3BSE020520R1 is a high-performance communication interface module designed for ABB’s S800 I/O system. It enables reliable fieldbus connectivity between controllers and distributed I/O devices, ensuring consistent data flow in demanding industrial environments. Ideal for process control and manufacturing applications, this module provides robust performance and easy integration.
Technical Specifications
| Attribute | Details |
|---|---|
| Product ID | 3BSE020520R1 |
| Type Designation | CI810B |
| Product Type | Communication Module |
| Supported Protocols | AF100 Fieldbus, Profibus DP (configurable) |
| Interface Design | Dual-Port Architecture |
| Connectivity | 2 × AF100 Twisted Pair Modems |
| Included Accessories | Power Supply Connector 3BSC840098R1, TB807 Modulebus Terminator 3BSE008538R1, 2 × Terminal Blocks 3BSC840098R1, AF100 Connector 3BSC840105R1 |
| System Software | Basic System Software Version 1.5 Preloaded |
| Dimensions (L×W×H) | 87 × 158 × 250 mm |
| Weight | 0.5 kg |
| Environmental Compliance | RoHS 2011/65/EU, WEEE Category 5 |
| Batteries | None |
Key Features
-
Dual-port design ensures high-speed, reliable communication between controllers and S800 I/O modules
-
Supports AF100 Fieldbus and Profibus DP for flexible integration into existing automation networks
-
Preloaded with system software for immediate deployment
-
Includes all necessary connectors and terminators for easy setup
-
Designed for stable operation under harsh industrial conditions
Applications
-
Distributed I/O integration in manufacturing and process control systems
-
Bridging AF100 Fieldbus and Profibus DP networks
-
Centralized control communication for ABB S800 I/O modules
FAQ
Q: Which fieldbus protocols does the CI810B support?
A: The module supports AF100 Fieldbus natively and Profibus DP depending on configuration.
Q: Can multiple CI810B modules be used in a single system?
A: Yes, the dual-port architecture allows multiple modules to operate reliably in larger distributed I/O networks.
Q: Does the module come with all necessary accessories for installation?
A: Yes, it includes power supply connector, modulebus terminator, terminal blocks, and AF100 connector.
Q: What system software version is loaded?
A: Version 1.5 of the basic system software comes preloaded.
