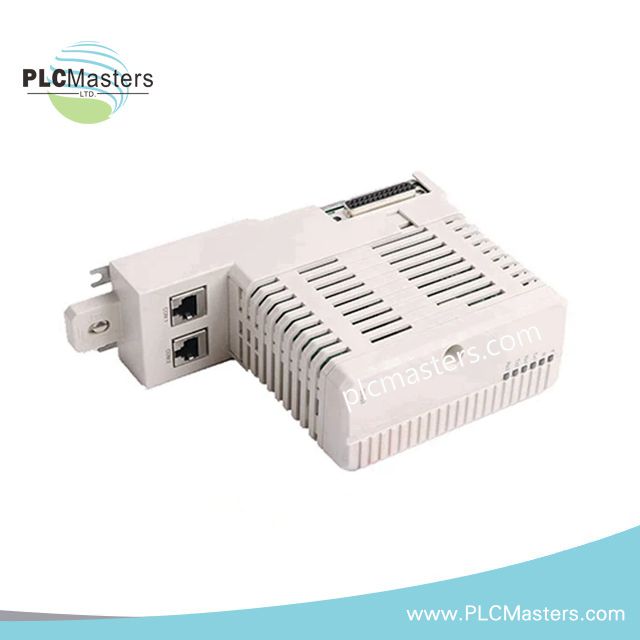

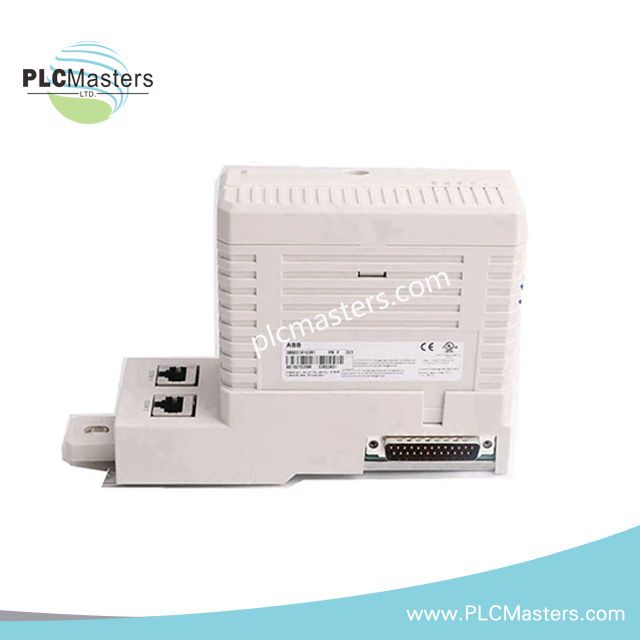

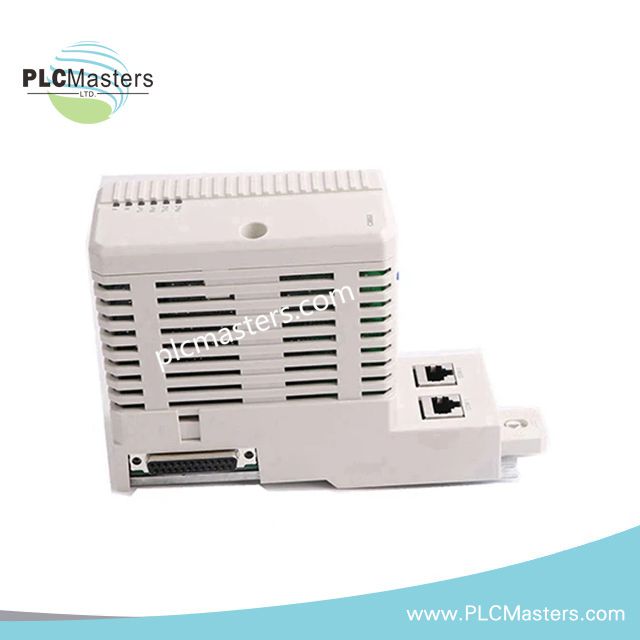

ABB CI853A Communication Interface Module
$258.00
$520.00
Description
Product Description
The CI853A from ABB is a serial communication interface module engineered for the AC 800M controller within the System 800xA automation platform. Designed for industrial-grade reliability, it provides flexible serial connectivity and supports multiple communication protocols for robust integration of external devices and subsystems.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CI853A |
| Module Type | Communication Interface Module |
| Manufacturer | ABB |
| Interfaces | RS‑232C (standard), RS‑485 (optional) |
| Supported Protocols | COMLI (ABB proprietary), Modbus RTU |
| Communication Mode | Half-duplex, Master/Slave |
| Hot Swap | Supported |
| Maximum Cable Length | Up to several kilometers with fiber optic converter |
| Controller Compatibility | AC 800M, System 800xA |
| Operating Temperature | 0 to +55 °C (+32 to +131 °F) |
| Storage Temperature | -40 to +70 °C (-40 to +158 °F) |
| Corrosion Protection | G3 compliant per ISA 71.04 |
| Protection Class | IP20 (EN60529 / IEC 529) |
| Certifications | CE, ABS, BV, DNV-GL, LR |
| Compliance | EU RoHS, UAE RoHS, CN RoHS, WEEE Directive |
| Dimensions (W×H×D) | 59 × 185 × 127.5 mm (2.3 × 7.3 × 5.0 in) |
| Weight | 1.5 lbs |
Key Features
-
Supports both ABB’s proprietary COMLI protocol and the widely adopted Modbus RTU standard.
-
Hot-swappable module reduces system downtime during maintenance.
-
Fiber optic converters allow extended communication over long distances.
-
Can operate as both Master and Slave for versatile system integration.
-
Built for industrial environments in manufacturing, energy distribution, and transportation systems.
Typical Applications
-
Process Automation: Interfaces with sensors, actuators, and industrial subsystems.
-
Energy Systems: Communication with monitoring, metering, and distribution devices.
-
Transportation Infrastructure: Reliable data exchange in railway signaling and control systems.
-
Legacy Equipment Integration: Supports older communication technologies, including dial-up modems.
FAQ
Q: Can the CI853A module be replaced without shutting down the AC 800M system?
A: Yes, it supports hot-swap functionality for seamless replacement.
Q: What protocol should I use for maximum compatibility?
A: COMLI is ABB-specific, while Modbus RTU provides broad interoperability with third-party devices.
Q: Can I extend the communication distance beyond standard serial cable limits?
A: Yes, using fiber optic converters, communication can span several kilometers.
Q: Is the module compatible with non-ABB controllers?
A: No, it is designed specifically for AC 800M controllers within System 800xA.
