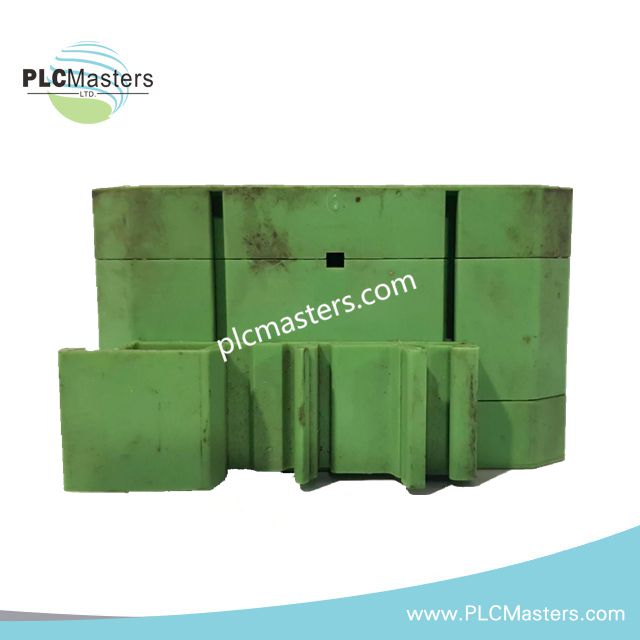

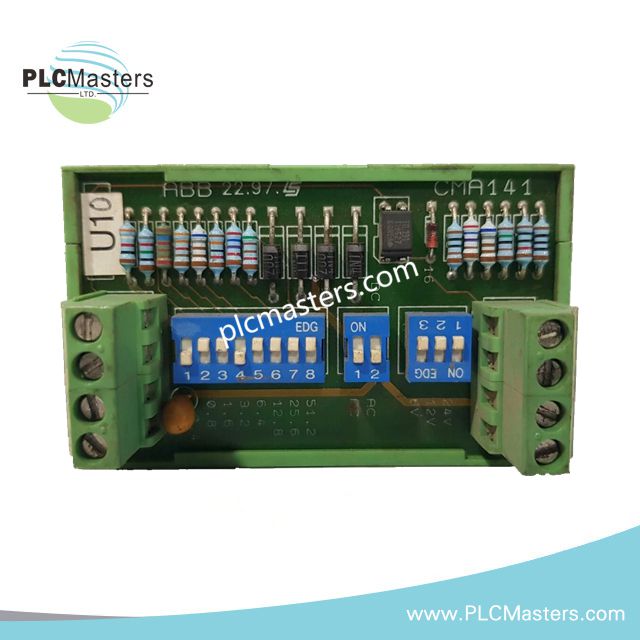

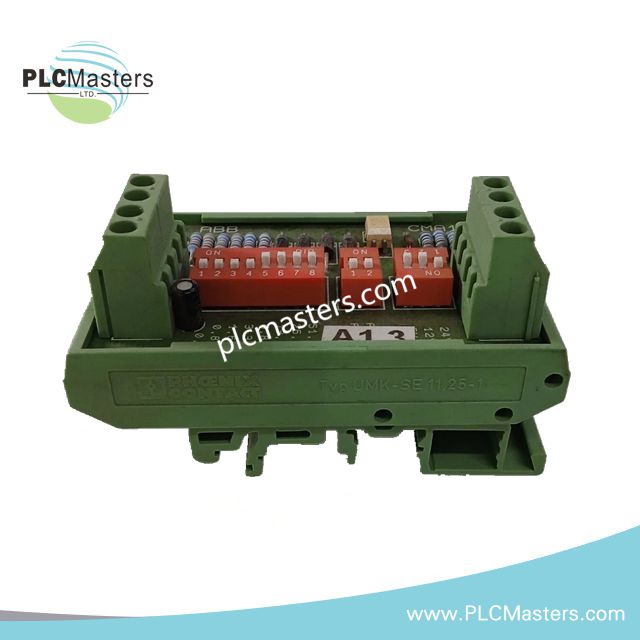

ABB CMA141 16-Point Terminal Module
$258.00
$520.00
Description
Overview
The CMA141 from ABB is a 16-point terminal module engineered for precise signal management in control cabinets. Compact yet robust, it ensures organized wiring for PLCs and distributed I/O systems, supporting both AC and DC loads up to 400 V and 10 A per terminal. Designed for industrial and building automation, it combines space efficiency, safety, and long-term reliability.
Technical Specifications
| Attribute | Details |
|---|---|
| Model | CMA141 |
| Terminals | 16 points |
| Rated Voltage | 400 V AC/DC |
| Current Rating | 10 A per terminal |
| Protection Class | IP20 (solid object protection >12 mm) |
| Operating Temperature | -20 °C to +60 °C |
| Dimensions | Height: 178 mm, Width: 125 mm, Depth: 42 mm |
| Weight | 0.45 kg |
| Mounting | DIN rail or cabinet installation |
Key Features
-
Compact Form Factor: Optimized for dense cabinet layouts.
-
High Power Handling: Each terminal supports up to 400 V AC/DC and 10 A.
-
Structured Signal Routing: Streamlines wiring for controllers, actuators, and sensors.
-
Durable Construction: Reliable materials for industrial-grade environments.
-
Safety Compliance: CE-certified with IP20 protection ensures safe enclosure installations.
Applications
-
PLC Interfaces: Connect ABB AC500 or other compatible automation controllers.
-
Building Automation: Distribute signals for HVAC, lighting, or access systems.
-
Distributed I/O Networks: Centralized wiring solution for modular automation setups.
-
Industrial Machinery: Signal distribution for sensors, actuators, and control units.
FAQ
Q: Can this module be installed outdoors?
A: No, CMA141 has IP20 protection and must be mounted inside an enclosed cabinet.
Q: Is it compatible with non-ABB PLC systems?
A: While designed for ABB systems, it can be used with other platforms if terminal voltage/current requirements match.
Q: Can multiple modules be combined for larger installations?
A: Yes, multiple CMA141 units can be linked to expand terminal capacity beyond 16 points.
Comparison with Similar Modules
Compared with ABB CMA142 (32-point version), CMA141 offers a smaller footprint suitable for compact panels while maintaining 10 A per terminal current handling.
