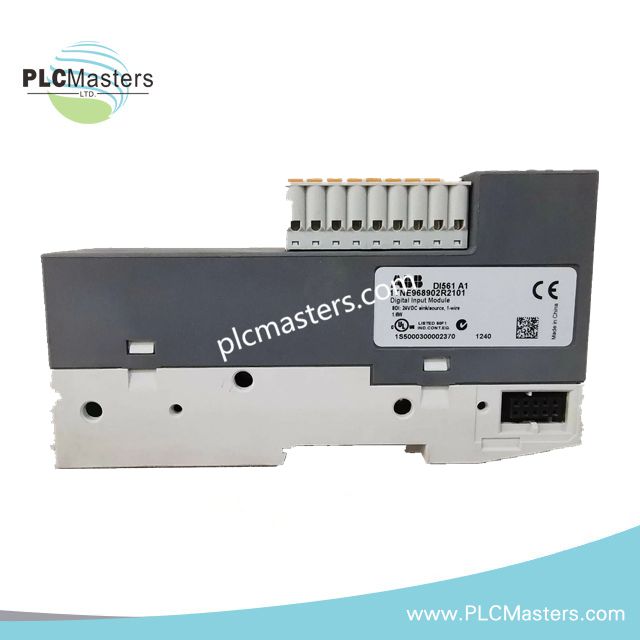

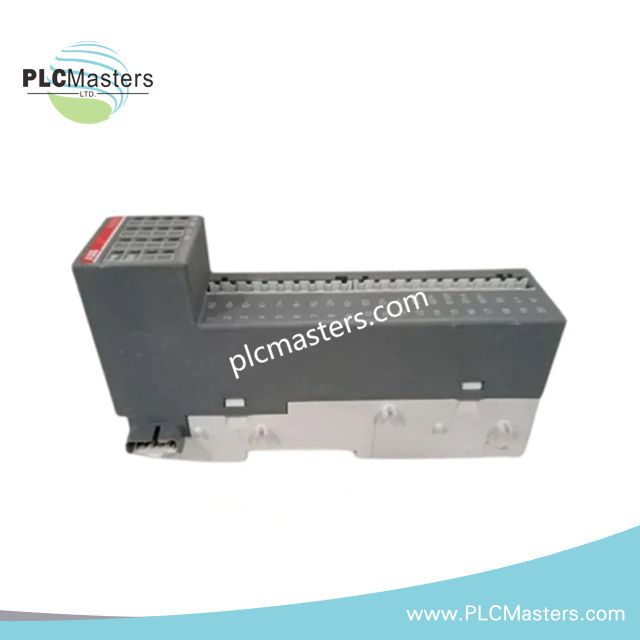

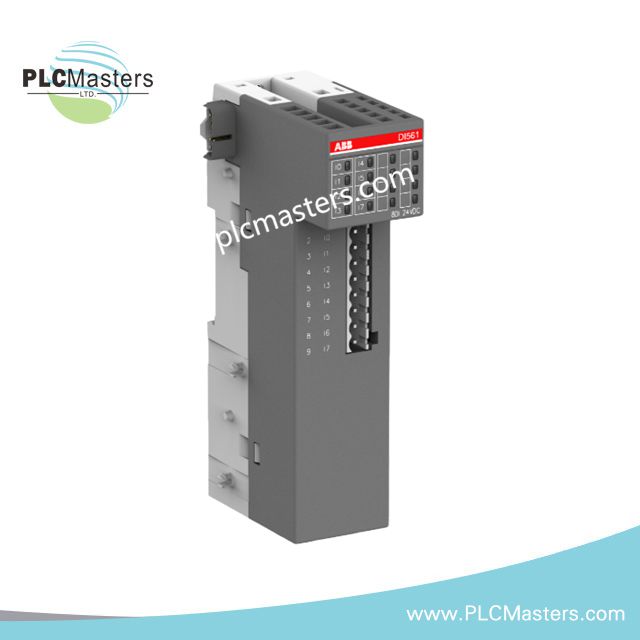

ABB DI561 S500-eCo Digital Input Module
$258.00
$520.00
Description
Product Description
The ABB DI561 (1TNE968902R2101) is a high-performance digital input module designed for ABB’s AC500-eCo programmable logic controllers and the S500-eCo distributed I/O system. Its compact 34 mm width enables efficient use of cabinet space while providing reliable digital signal acquisition for industrial automation applications.
Technical Specifications
| Attribute | Specification |
|---|---|
| Number of Inputs | 8 digital channels (sink/source configurable) |
| Input Voltage | 24 VDC nominal, supports 24 V AC in specific configurations |
| Input Current | 5 mA per channel |
| Maximum Input Voltage | 0–30 V |
| Response Time (τ) | 8 ms |
| Wiring | 1-wire, pluggable connections |
| Mounting | DIN rail compatible |
| Dimensions | Width: 34 mm, Height: 74 mm, Depth: 135 mm |
| Weight | 0.113 kg |
| Operating Temperature | 0–60 °C |
| Storage Temperature | -40–70 °C |
| Protection Rating | IP20 |
| Terminal Compatibility | TA563-9, TA564-9, TA565-9 (screw or spring terminals) |
Key Features
-
Slim and space-saving design for compact installations
-
Supports both sink and source digital inputs at 24 VDC
-
Robust industrial-grade construction for reliable operation
-
DIN rail mounting with flexible terminal options
-
Wide temperature range ensures stable performance in various environments
Typical Applications
-
Factory Automation: Digital signal collection from switches, sensors, and pushbuttons
-
Process Control Systems: Monitoring field devices and control loops
-
Building Automation: Binary inputs for HVAC, lighting, and security systems
-
Distributed Control Systems: Integration with AC500-eCo PLCs for efficient I/O handling
FAQ / Notes
Q: Can the DI561 be used with non-ABB PLCs?
A: No, it is designed exclusively for AC500-eCo PLC systems.
Q: How many channels are available per module?
A: 8 digital input channels. For larger systems, multiple modules may be required.
Q: What is the protection class?
A: IP20; installation inside a protective enclosure is required.
Q: Are there similar modules for more inputs?
A: ABB S500-eCo series includes DI562 and DI563 with higher channel counts.
