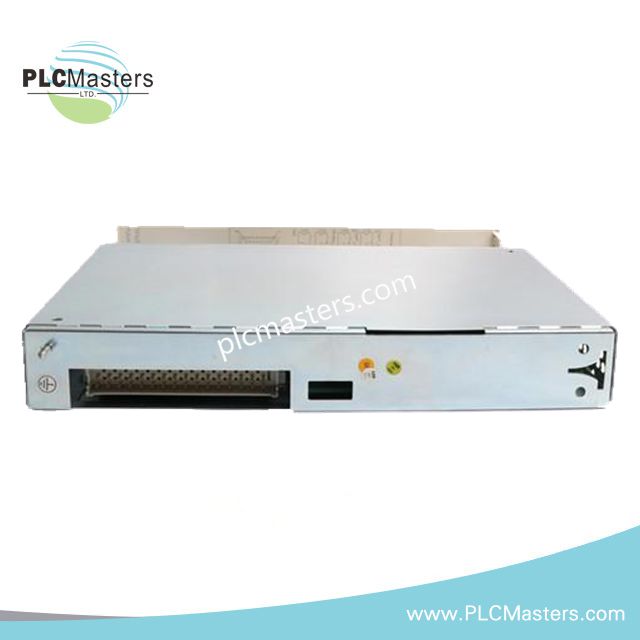

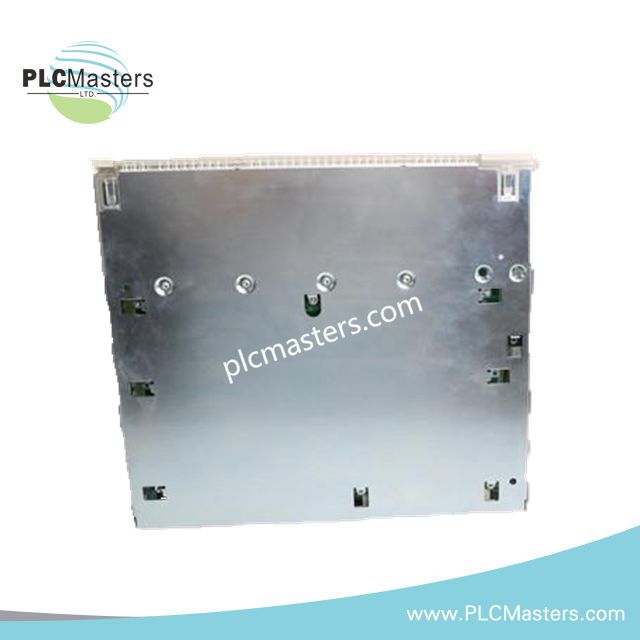

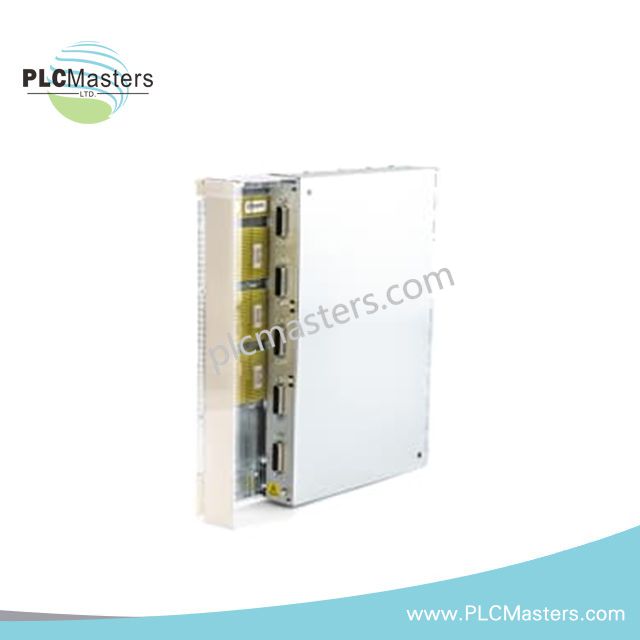

ABB DP620 3BHT30016R1 High-Speed Counter Module
$258.00
$520.00
Description
Product Description
The ABB DP620 (3BHT30016R1) is a high-performance counter module engineered for ABB Advant Controller 160 and MasterPiece 90 systems. Designed for rapid pulse acquisition, this module captures signals from encoders, flow meters, and proximity sensors, ensuring precise counting and frequency measurement in demanding industrial environments.
Key Technical Specifications
-
Input Voltage: 5/24 VDC
-
Counting Frequency: Up to 100 kHz
-
Number of Channels: 5 independent digital inputs
-
Channel Type: Digital input (DI)
-
Dimensions (L × H × W): 252 × 273 × 40 mm
-
Weight: 1.635 kg
-
Mounting: Rack-mounted in Advant Controller system
-
Country of Origin: Sweden
-
Customs Tariff Number: 85389091
-
Compliance: RoHS compliant, WEEE category 5 (Small Equipment)
Core Features
-
High-speed pulse counting capability suitable for motion control and process monitoring
-
Multi-channel operation allows simultaneous measurement from multiple sensors
-
Robust industrial design ensures reliable operation under continuous load
-
Compact form factor saves valuable cabinet space
-
Seamless integration with ABB Advant Controller and MasterPiece systems
Applications
Ideal for precise event counting in applications such as:
-
Encoder feedback in motion control systems
-
Flow measurement in process plants
-
Production lines in steel, paper, packaging, and semiconductor industries
FAQ
Q: What is the maximum pulse frequency the DP620 can handle?
A: Up to 100 kHz across all five channels.
Q: Can the module operate at both 5 V and 24 V?
A: Yes, it supports 5/24 VDC input levels.
Q: Are there alternative ABB high-speed counter modules for similar applications?
A: Yes, the ABB DP610 series provides lower-frequency counting capabilities, while DP620 is optimized for high-speed processes.
