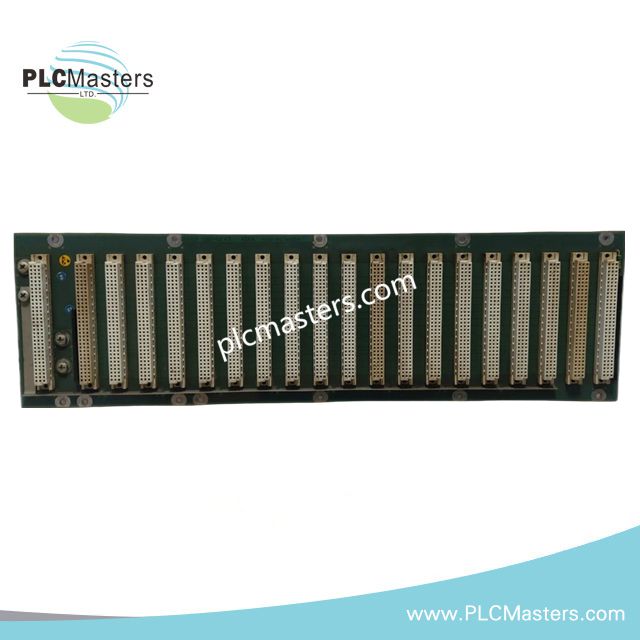

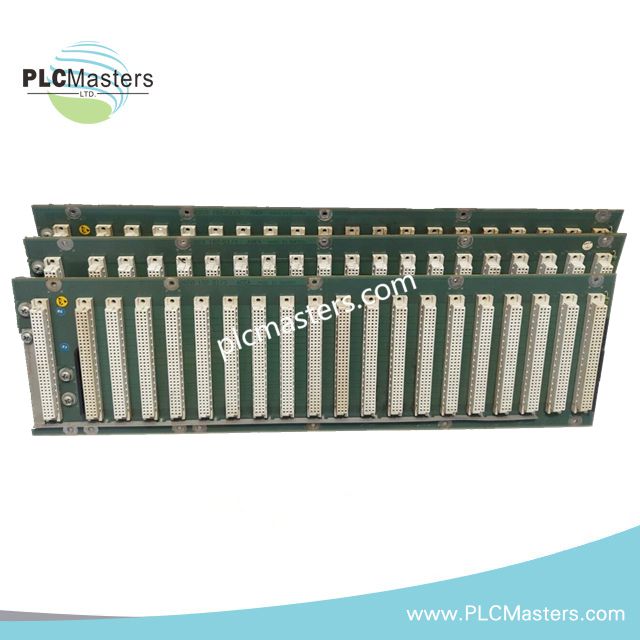

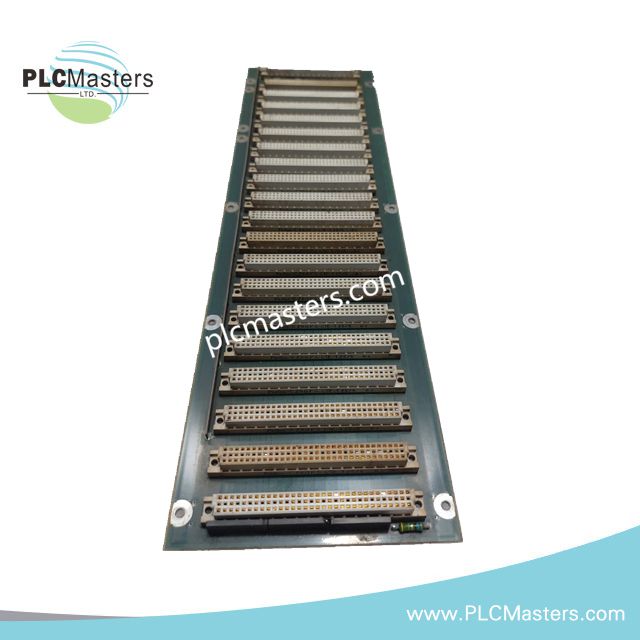

ABB DSBB104 57310256-AV/1 Bus Backplane Module
$258.00
$520.00
Description
Overview
The ABB DSBB104 (57310256-AV/1) is a high-reliability bus backplane and digital output module engineered for ABB’s Advant OCS and MasterPiece 200/200/1 control systems. Designed for industrial automation applications, it ensures robust digital communication and efficient module integration across control racks.
Technical Specifications
| Attribute | Details |
|---|---|
| Model | DSBB104 |
| Part Number | 57310256-AV/1 |
| Module Type | Bus Backplane / Digital Output Board (configuration-dependent) |
| Dimensions (Bus Backplane) | 215 × 100 × 30 mm |
| Dimensions (Digital Output Variant) | 100 × 50 × 20 mm |
| Weight | 1.5 kg |
| Input Voltage | 24 VDC nominal (typical for ABB controllers) |
| Output Channels | Multiple digital output channels (configuration-specific) |
| Operating Temperature | 0°C to 55°C (standard industrial range) |
| Certifications | CE, RoHS compliant |
Key Features
-
Provides stable bus connectivity for multiple ABB modules.
-
Supports configurable digital output channels for diverse automation requirements.
-
Compact, rack-mountable design for space-efficient integration.
-
Fully compatible with Advant OCS and MasterPiece 200/200/1 control systems.
-
Industrial-grade construction ensures long-term reliability in demanding environments.
Applications
Ideal for process control and industrial automation plants requiring precise digital output management and reliable communication across ABB control systems. Commonly used in distributed control setups, plant monitoring, and automated process integration.
FAQs
Q: Is the DSBB104 compatible with non-ABB systems?
A: No. Integration is limited to ABB Advant OCS and MasterPiece 200/200/1 controllers.
Q: How do I confirm the module type before purchase?
A: DSBB104 may be listed as a bus backplane or digital output board. Verify the intended configuration with ABB or your supplier.
Q: Can it be serviced or repaired?
A: Yes. ABB provides inspection, testing, and repair services for DSBB104 units.
