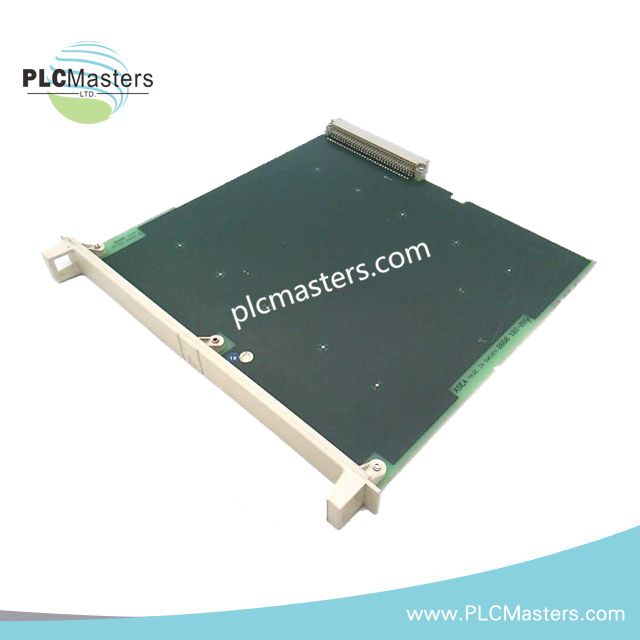

ABB DSBB110 | Shield & Expansion Board | Motion Control Module
$258.00
$520.00
Description
Product Description
The ABB DSBB110 is a precision shield and expansion board engineered for ABB Advant Master and MasterPiece automation systems. Designed for motion control applications, it provides reliable shielding, robust I/O expansion, and interference protection in industrial environments. Compact and lightweight, it integrates seamlessly into existing ABB control architectures.
Technical Specifications
| Attribute | Details |
|---|---|
| Model | DSBB110 |
| Part Numbers | 57330001E, 57330001-Y |
| Board Type | Shield Board / Expansion Board for Motion Control |
| Dimensions | 254 × 25 × 254 mm |
| Weight | 0.22 lbs |
| Operating Temperature | –25°C to +70°C |
| Power Supply | 12 V DC |
| Current Draw | ≤ 150 mA |
| Material | Stainless Steel (shield board) |
| Connectivity | MODBUS-TCP (variant dependent) |
| Supported Systems | ABB Advant Master, MasterPiece; Windows & Linux compatibility |
| Key Functions | EMI shielding, I/O expansion, servo/stepper motor control, industrial protection |
Key Features
-
Electromagnetic Protection: Ensures stable operation by shielding sensitive control electronics.
-
Motion Control Expansion: Supports AC asynchronous motors, stepper motors, and servo drives for precise positioning.
-
Compact & Modular Design: Facilitates easy integration without significant system modification.
-
Industrial Durability: Stainless steel construction and wide temperature tolerance enable harsh environment operation.
-
Flexible Connectivity: MODBUS-TCP support for advanced system communication.
Applications
-
High-speed packaging machinery
-
Robotics and automation platforms
-
Precision manufacturing lines requiring interference-free motor control
FAQ / Usage Notes
Q: Are DSBB110 shield and expansion boards interchangeable?
A: No. Confirm exact part number (57330001E vs. 57330001-Y) as the shield and expansion versions differ in size and functionality.
Q: Can this board be used with non-ABB controllers?
A: The DSBB110 is designed specifically for ABB Advant Master and MasterPiece systems. Compatibility with other platforms is not guaranteed.
Q: What are the power limitations?
A: Ensure a 12 V DC supply and that current consumption does not exceed 150 mA.
