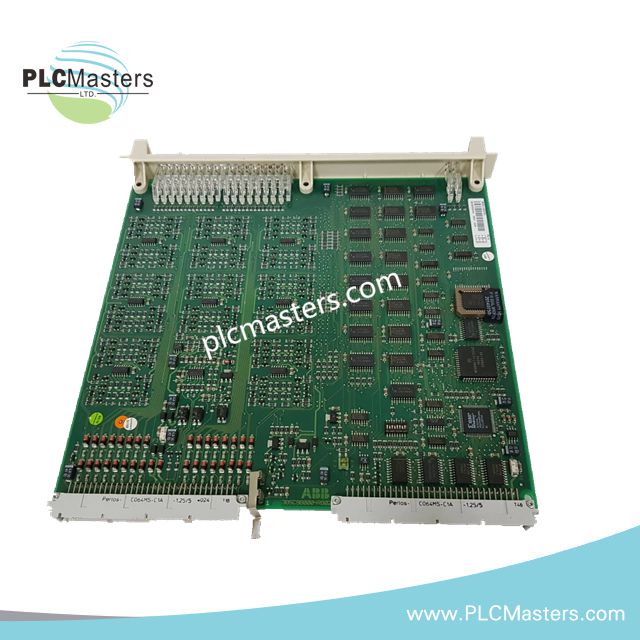

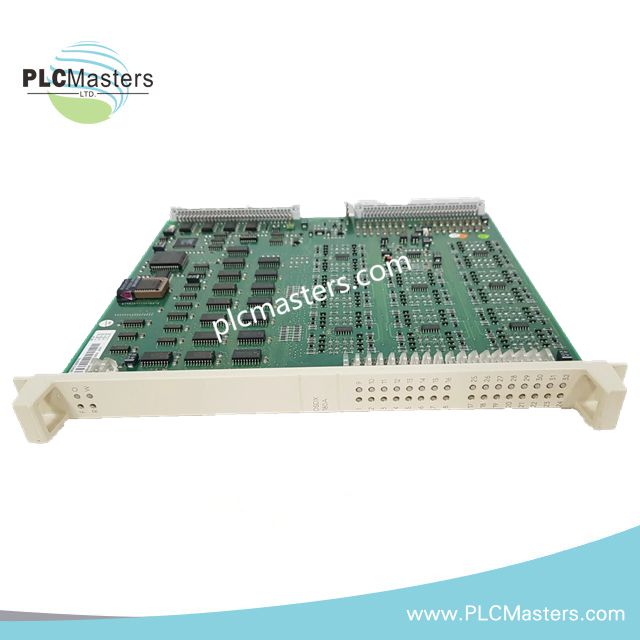

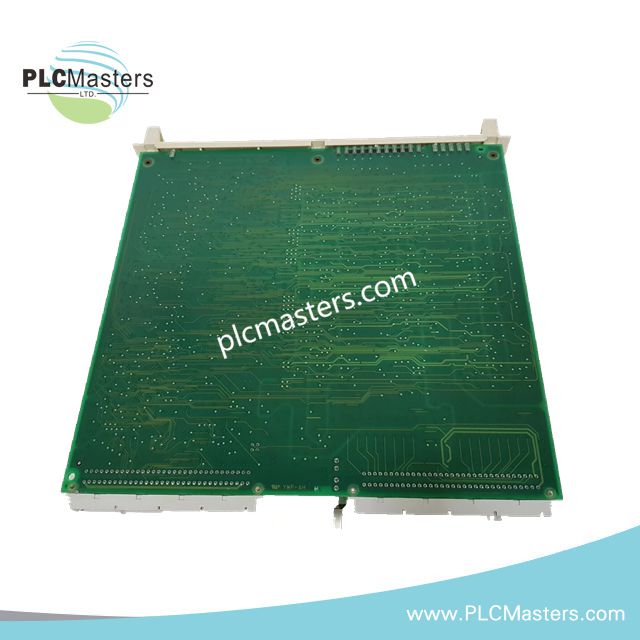

ABB DSDX180A 3BSE018297R1 Digital I/O Module

Overview

The DSDX180A 3BSE018297R1 is a combined digital input and digital output module designed for long-term operation in ABB distributed control environments. It supports mixed DI/DO signal processing on a single board, allowing efficient use of I/O slots while maintaining electrical isolation and deterministic response behavior. The module is primarily deployed in installed-base systems where operational stability, signal integrity, and lifecycle continuity are critical.

Engineered for ABB’s MOD 300 and Advant architecture, the DSDX180A integrates seamlessly with AC460 and S100 I/O subsystems, making it suitable for both system maintenance and phased modernization projects.

Functional Characteristics

The module provides configurable digital channels that can be assigned as inputs or outputs depending on system configuration. Each channel is designed to handle 24 V DC field signals with isolation between field wiring and system logic, reducing susceptibility to electrical noise and transient disturbances. Communication with the controller is handled via an RS-485 interface, ensuring reliable data transfer in industrial environments.

Technical Specifications

General

• Model: DSDX180A (3BSE018297R1)

• Module Type: Combined Digital Input / Output

• Supported Systems: MOD 300, Advant OCS, AC460, S100 I/O

• Origin: Sweden

I/O Configuration

• Total Channels: 32 configurable digital channels

• Channel Function: Software-defined DI or DO

• Signal Type: 24 V DC

• Typical Input Threshold: Conforming to ABB MOD 300 digital standards

• Output Drive Capability: Suitable for standard control relays and solenoids

Electrical Characteristics

• Rated Supply Voltage: 24 V DC

• Electrical Isolation: Channel-to-system isolation

• Isolation Rating: Typically 50 V DC; higher isolation ratings may apply depending on system configuration

• Communication Interface: RS-485

Environmental Limits

• Operating Temperature: –25 °C to +60 °C

• Storage Temperature: –40 °C to +85 °C

• Compliance: CE, UL

• WEEE Category: 5

Mechanical Data

• Mounting: System rack / I/O subrack

• Weight: 0.35 kg

System Integration Notes

The DSDX180A is intended for fixed industrial control installations where stable I/O behavior is required over extended service lifetimes. It is commonly used as a direct replacement module in existing systems, minimizing configuration changes and avoiding controller or rack modifications.

Typical Application Areas

• MOD 300 and Advant OCS distributed control systems

• Power generation auxiliary control

• Petrochemical and refinery process units

• Continuous manufacturing lines

• Expansion or refurbishment of S100 I/O stations

FAQ

Q: Can the DSDX180A be used as a direct replacement for older digital I/O boards in MOD 300 systems?
A: Yes. The DSDX180A (3BSE018297R1) is widely used as a form-fit-function replacement within MOD 300 and compatible ABB control platforms.

Q: Are all channels configurable as either input or output?
A: The module architecture supports configurable digital channels, though final allocation depends on controller configuration and system firmware.

Q: Does the module support modern fieldbus protocols?
A: No. Communication is based on RS-485 and is intended for legacy ABB control architectures rather than Ethernet-based fieldbus systems.
