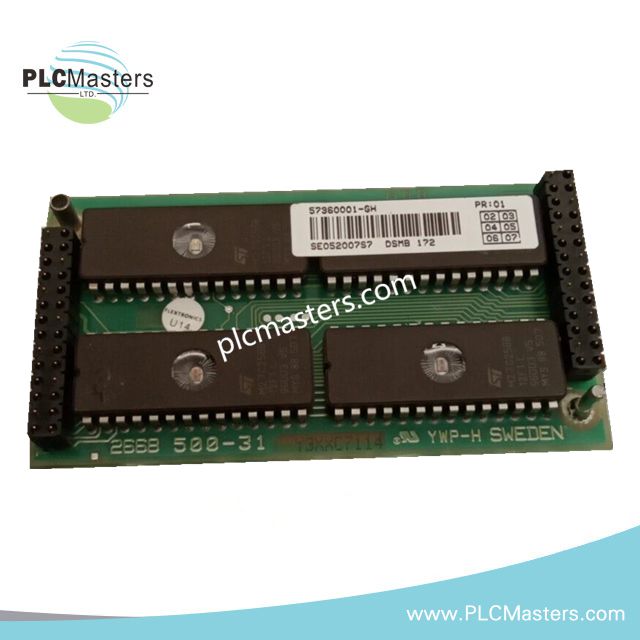

ABB DSMB172 57360001-GH Circuit Board
$258.00
$520.00
Description
Overview
The ABB DSMB172 (57360001‑GH) is a dedicated circuit board module designed for ABB’s legacy Bailey Infi 90 and Symphony Distributed Control Systems (DCS). It provides precise signal processing and reliable communication between modules, making it an essential spare or replacement part for operational continuity in industrial automation networks.
Technical Specifications
| Specification | Details |
|---|---|
| Function | Signal processing and communication within ABB Bailey DCS racks |
| System Compatibility | Fits standard ABB Symphony and Infi 90 rack assemblies |
| Operating Voltage | 24 V DC control supply |
| Dimensions | 300 × 30 × 180 mm |
| Weight | 0.5 kg |
| Operating Temperature | −20°C to +60°C |
| Mounting | Standard rack slot integration |
| Compliance | CE certified; RoHS compliance depends on batch |
Key Features
-
Reliable Operation: Maintains stable signal communication in legacy ABB DCS systems.
-
Compact Form Factor: Slim design ensures compatibility with existing rack configurations.
-
Robust Construction: Industrial-grade durability for continuous operation.
-
Seamless Integration: Fully compatible with ABB Bailey Infi 90 and Symphony DCS environments.
-
Spare/Replacement Role: Ideal for repair, system expansion, or maintenance.
Applications
-
Industrial SCADA systems requiring legacy ABB DCS support
-
Semiconductor fabrication plants
-
Petrochemical and chemical process facilities
-
Smart manufacturing environments operating legacy Bailey or Symphony racks
FAQ
Q: Can the DSMB172 be used in new DCS installations?
A: No, this module is intended for legacy systems only and not recommended for new installations.
Q: How do I confirm compatibility with my existing DCS rack?
A: Check the rack type, module slot, and firmware version; the DSMB172 (57360001‑GH) must match the legacy system requirements.
Q: Are refurbished units available?
A: Yes, due to limited stock, refurbished or exchange modules are sometimes offered.
