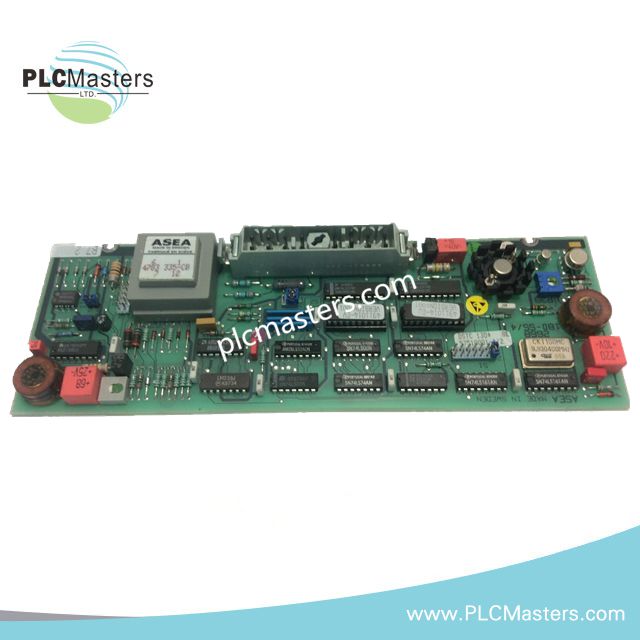

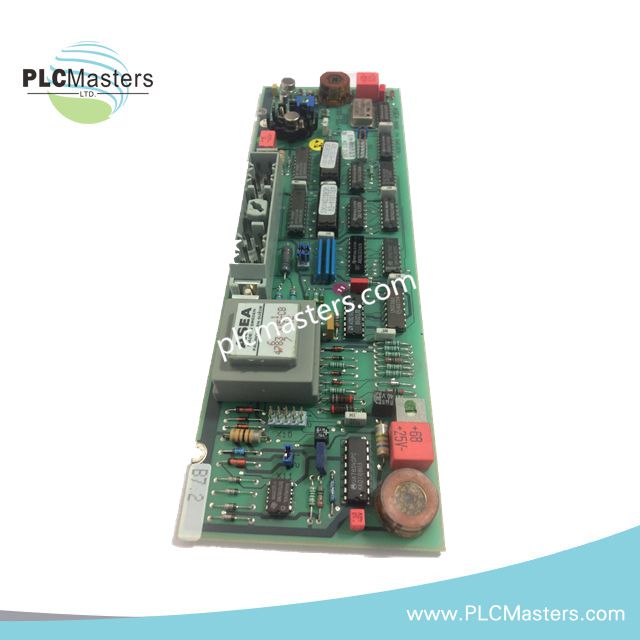

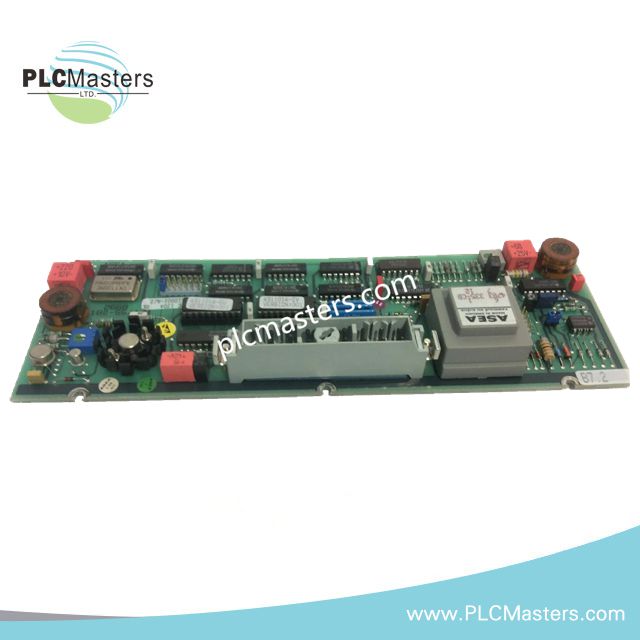

ABB DSTC130 57510001-A/2 Circuit Board
$258.00
$520.00
Description
Product Description
The ABB DSTC130 57510001-A/2 is a high-reliability communication board designed for ABB Advant OCS Master SW control systems. It acts as the central interface between controllers and field devices, enabling robust and flexible data exchange across multiple industrial network protocols. Engineered for continuous operation in demanding environments, this module is an essential spare part for legacy MasterPiece 200/200/1 systems.
Technical Specifications
| Specification | Details |
|---|---|
| Function | Industrial network communication interface |
| Supported Protocols | Modbus, Profibus, Ethernet (configurable) |
| System Bus Compatibility | ABB MasterPiece series bus interface |
| Operating Voltage | 24 VDC |
| Dimensions | 120 × 76 × 36 mm |
| Weight | 0.5 kg |
| Operating Temperature | -20°C to +60°C |
| Reliability | Industrial-grade, MTBF >100,000 hours |
Key Features
-
Stable Data Exchange: Ensures reliable communication between controllers and field devices
-
Protocol Flexibility: Supports multiple industrial communication standards depending on configuration
-
Compact & Modular Design: Fits standard ABB control racks with ease
-
Industrial Durability: Built for continuous operation in challenging environments
-
Certified Compliance: CE and RoHS approved for global use
Applications & Usage
The DSTC130 serves as a communication hub within ABB MasterPiece 200/200/1 control systems, enabling interface with analog input boards, digital output boards, and other automation modules. Its modular design makes it suitable for maintenance, upgrades, and replacement in legacy Advant OCS installations.
FAQ
Q: Is the DSTC130 compatible with DSTA analog input boards?
A: Yes, it provides the communication interface necessary to exchange data with DSTA-series modules.
Q: Which protocols are supported?
A: Depending on configuration, the DSTC130 supports Modbus, Profibus, and Ethernet. Users should verify protocol settings before installation.
Q: Can this board operate in harsh industrial environments?
A: Yes, it is designed for continuous operation from -20°C to +60°C with industrial-grade reliability.
Q: How does it compare to DSRF-series frames?
A: Unlike DSRF-series, which are structural frames, DSTC130 is purely a communication controller board.
