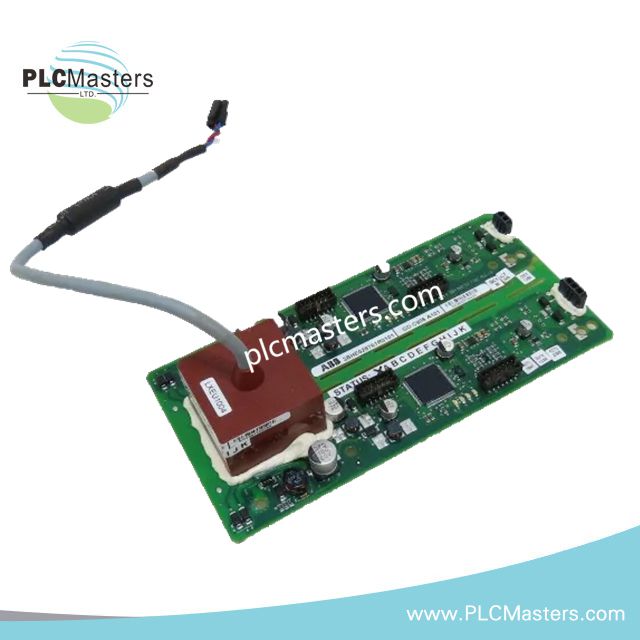

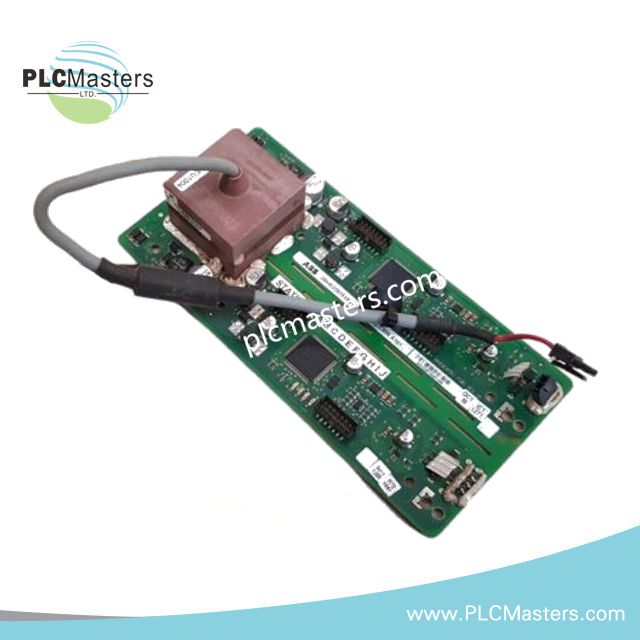

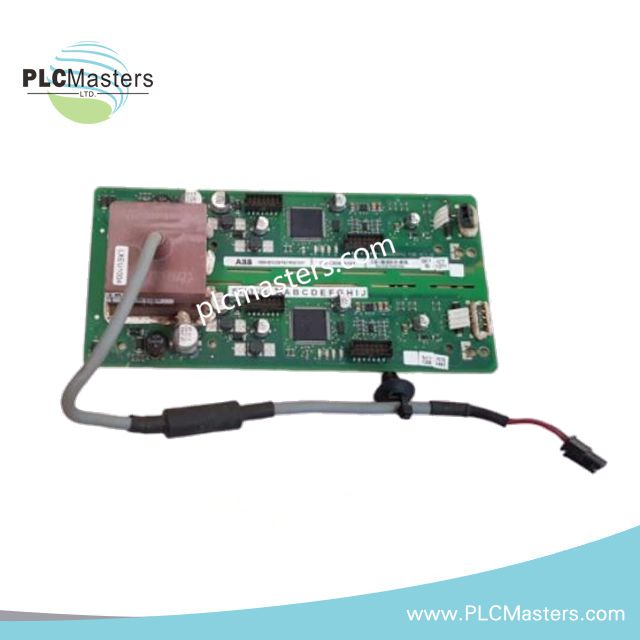

ABB GDC806A1001 3BHE028761R1001 Gate Drive Processor Module
$258.00
$520.00
Description
Product Description
The GDC806A1001 (3BHE028761R1001) from ABB is a high-performance gate drive and communication processor module, engineered for precision control of power semiconductors and reliable data handling in demanding industrial environments. It is fully compatible with ABB’s System 800xA DCS and optimized for applications in motor control, power conversion, robotics, and energy management.
This module combines fast switching gate signals for IGBT devices with robust communication processing, ensuring efficient integration between field devices and supervisory controllers.
Technical Specifications
| Parameter | Specification |
|---|---|
| Supply Voltage | 24 V DC |
| Input Signal Voltage | 5 V DC |
| Maximum Output Current | 5 A |
| Isolation Voltage | 2500 V DC |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +105°C |
| Dimensions (L × W × H) | 120 × 100 × 25 mm |
| Weight | 0.25 kg |
| Communication Processor | Intel Atom E3845 Quad-Core, 1.92 GHz |
| Interfaces | CAN, Modbus, ProfiNet (optional) |
| Response Time | < 5 µs for gate drive signals |
| Protection Features | Overvoltage, overcurrent, thermal shutdown |
Applications
Motor Control Systems: Ensures precise gate drive timing for high-efficiency motor operations.
Power Conversion Units: Supports reliable IGBT switching in inverters, converters, and UPS systems.
Industrial Automation: Integrates seamlessly into ABB System 800xA, enabling stable communication and control.
Robotics: Provides accurate actuator control for industrial robots and automated machinery.
Energy Management: Maintains stable operation in energy storage, distribution, and microgrid systems.
Key Benefits
High Reliability: Built for harsh industrial environments with wide temperature tolerance.
Fast and Stable Performance: Optimized gate drive switching and communication processor efficiency.
Compact Footprint: Space-saving design with high isolation integrity.
Versatile Integration: Compatible with multiple ABB control platforms and sub-systems.
FAQ
Q: Can this module be used with non-ABB motor controllers?
A: While designed for ABB System 800xA, it may be compatible with other systems that support 24 V DC gate drive and CAN/Modbus interfaces, pending verification.
Q: What types of power semiconductors does it support?
A: Suitable for standard IGBT modules and MOSFETs within the specified voltage and current ranges.
Q: Are expansion modules required for communication?
A: The onboard Intel Atom processor handles communication, but optional interface modules can extend connectivity to ProfiNet, EtherCAT, or CAN networks.
Similar Models: ABB GDC805A, GDC807A modules offer similar gate drive capabilities but differ in communication interfaces and max output current.
