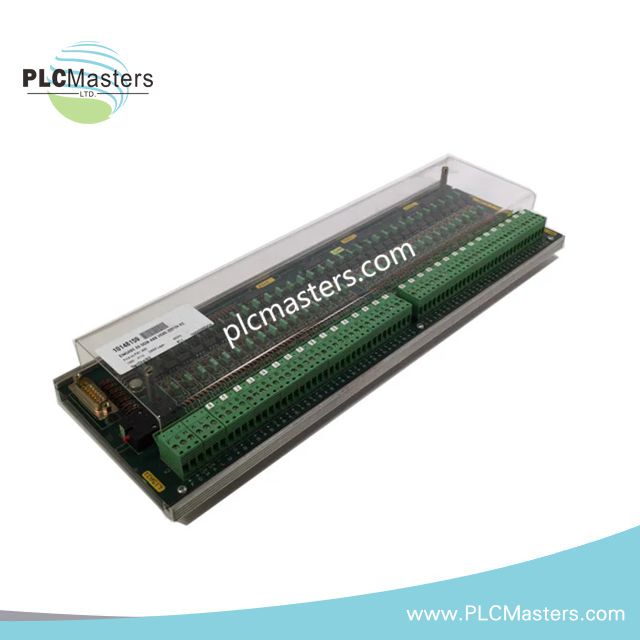

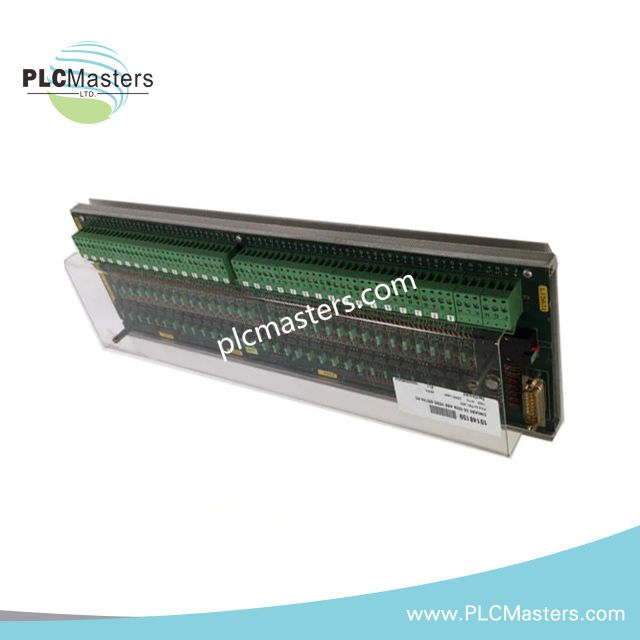

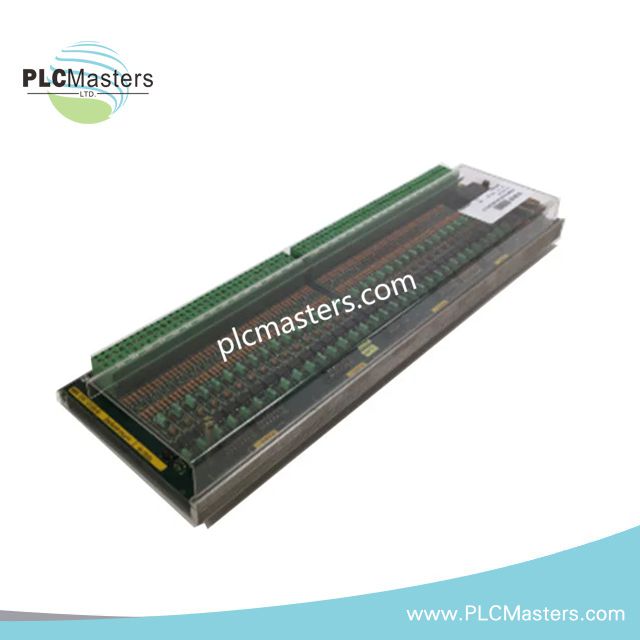

ABB HESG222124R2 ES0502A Termination Panel
$258.00
$520.00
Description
Product Description
The HESG222124R2 (ES0502A) from ABB is a high-precision termination panel designed to serve as the interface between field devices and distributed control system (DCS) modules. It provides organized and secure wiring points, simplifying installation, maintenance, and diagnostics in industrial environments.
This interface board supports both digital and analog signals and is compatible with ABB DCS platforms, including Symphony, Advant, and Freelance systems. Its robust design ensures reliable performance under demanding industrial conditions.
Technical Specifications
| Attribute | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | HESG222124R2 |
| Part Number | ES0502A |
| Product Type | Termination Panel |
| Compatible Systems | ABB DCS (Symphony, Advant, Freelance) |
| Signal Types Supported | Digital and Analog |
| Connections | Screw-type or plug-in terminals for field wiring |
| Power Supply | 24 VDC (for signal conditioning if required) |
| Dimensions | 250 × 150 × 50 mm |
| Weight | 1 kg |
| Mounting | DIN rail or cabinet backplane |
| Operating Temperature | −25 °C to +70 °C |
| Protection Class | IP20 |
Applications
-
Industrial process automation
-
Motor and drive control systems
-
Energy monitoring setups
-
Integration with ABB controllers and I/O modules
FAQ & Insights
Q: Can this panel handle both analog and digital signals?
A: Yes, it supports multiple signal types for seamless field-to-controller connectivity.
Q: What mounting options are available?
A: It can be installed on DIN rails or directly on cabinet backplanes.
Q: Are there similar models for larger-scale DCS setups?
A: ABB offers HESG series panels with extended terminal counts for complex installations.
